型号: | PHK-420 |
---|---|
品牌: | 蓝融 |
原产地: | 中国 |
类别: | 工业设备 / 包装相关设备 |
标签︰ | 颗粒包装机 , 电子秤包装机 , 全自动包装机 |
单价: |
¥178000
/ 台
|
最少订量: | 1 台 |

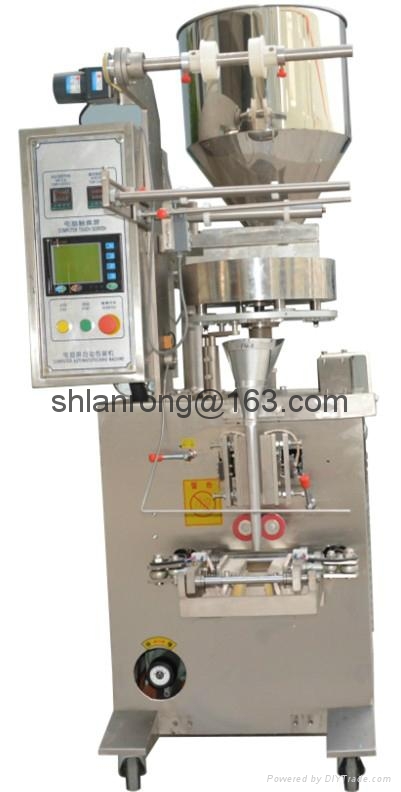

1、采用智能温控器,温度控制准确;包装封口美观、平整。
1. Use intelligent temperature controlling machine to have accurate temperature control, ensure the artistic and neat seat.
2、采用PLC控制伺服电机双拉或单拉膜结构、封切位置均采用电机自动纠偏装置、超大显示触摸屏构成驱动控制核心;最大限度提高了整机的控制精度、可靠性和智能化程度。
2. Use PLC control servo double-pull and single pull membrane, structure, super touch screen structure drives the control center, maximize the whole machine’s control precision, reliability and intelligentized level.
3、本机与计量配置可自动完成计量、送料、充填制袋、日期打印、充气(排气)、日期打印的全部包装过程,并自动完成计数。
3. This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging and products transporting automatically as well as counting.
4、设有故障显示系统,帮助及时排除故障。
4. Have error indicating system, helping handle the trouble immediately.
5、可根据客户需要制成枕形袋、打挂孔袋。
5. Make block bags and hanging bags according to customer’s different requires.
选配装置 Selected installations:
量杯式计量、螺旋式计量、电子自动计量、组合秤。
Measuring cup equipment. Screw measuring equipment. Electronic automated measuring steelyard. Mixed steelyard
适用范围Usage:
适用于食品、糖果、小颗粒状、速冻食品、瓜子、炒货、种子等粒状物。
Suitable for automatic packing of popped food , fruit, candy, biscuit, deep frozen food, melon seeds, roasted nut, pips and other granule materials.
性能参数Performance parameters:
型 号 |
420 |
530 |
720 |
制袋尺寸 |
L 80-300mm W 80-200mm |
L100-350mm W100-250mm |
L120-450mm W120-400mm |
最大包装速度 |
25-80bags/min |
25-70 bags/min |
25-60 bags/min |
电源和功率 |
AC220V, 50-60Hz, 3.0KW |
AC220V, 50-60Hz, 5KW |
AC220V, 50-60Hz, 6KW |
压缩空气用量 |
6-8kg/m2,0.15m3/min |
6-8kg/m2, 0.25m3/min |
6-8kg/m2, 0.35m3/min |
整机重量 |
500kg |
700kg |
800kg |
外型尺寸 |
L1650×W1300×H1700mm |
L1600×W1150×1800mm |
L1800×W1550×1900mm |
