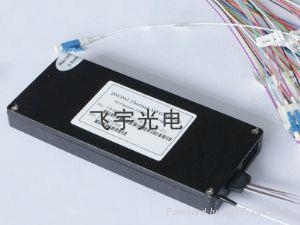

100G AWG DWDM密集波分复用器

型号：	40CH AWG
品牌：	飞宇
原产地：	中国
类别：	电子、电力 / 通信和广播电视设备 / 其他通讯产品
标签︰	AWG , DWDM , 40CH
单价：	¥7000 / 件
最少订量：	1 件

发送查询

产品描述

Optical Specification (Flattop AWG)

Parameters	Condition	Specs			Units
Parameters	Condition	Min	Typ	Max	Units
Number of Channels		40
Number Channel Spacing	100GHz	100			GHz
Cha. Center Wavelength	ITU frequency.	C -band			nm
Clear Channel Passband		±0.1			nm
Wavelength Stability	Maximum range of the wavelength error of all channels and temperatures in average polarization.	±0.05			nm
-1 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.4			nm
-3 dB Channel Bandwidth	Clear channel bandwidth defined by passband shape. For each channel	0.6			nm
Optical Insertion Loss at ITU grid	Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarization.		4.5	6.0	dB
Adjacent Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarization, within the ITU band of the adjacent channels.	25			dB
Non-Adjacent, Channel Isolation	Insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarization, within the ITU band of the nonadjacent channels.	30			dB
Total Channel Isolation	Total cumulative insertion loss difference from the mean transmission at the ITU grid wavelength to the highest power, all polarization, within the ITU band of all other channels, including adjacent channels.	22			dB
Insertion Loss Uniformity	Maximum range of the insertion loss variation within ITU across all channels, polarization and temperatures.		1.0	1.5	dB
Directivity(Mux Only)	Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n	40			dB
Insertion Loss Ripple	Any maxima and any minima of optical loss across ITU band, excluding boundary points, for each channel at each port			0.5	dB
Optical Return loss	Input & output ports	40			dB
PDL/Polarization Dependent Loss in Clear Channel Band	Worst-case value measured in ITU band		0.3	0.5	dB
Polarization Mode Dispersion				0.5	ps
Maximum Optical Power				23	dBm
MUX/DEMUX input/ output Monitoring range		-35		+23	dBm

IL Represents the worst case over a +/-0.1nm window around the ITU wavelength

PDL was measured on average polarization over a +/- 0.1nm window around the ITU wavelength.

Ordering Part Code Sequence

AWG	X	XX	X	XXX	X	X	X	XX
	Band	Number of Channels	Spacing	1st Channel	Filter Shape	Package	Fiber Length	In/Out Connector
	C=C-Band L=L-Band D=C+L-Band X=Customize	16=16-CH 32=32-CH 40=40-CH 48=48-CH XX=Special	1=100G 2=200G 5=50G X=Special	C60=C60 H59=H59 C59=C59 H58=H58 XXX=special	G=Gaussian B=Broad Gaussiar F=Flat Top	M=Module R=Rack X=Special	1=0.5m 2=1m 3=1.5m 4=2m 5=2.5m 6=3m S=Specify	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC 7=ST/UPC S=Specify
