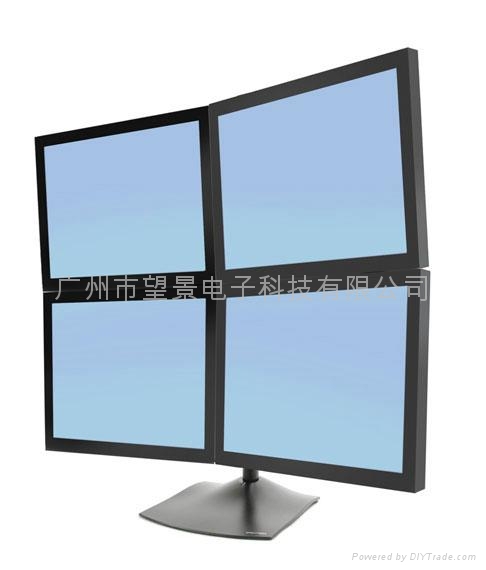

望景爱格升DS100四屛显示器台式支架33-324-200

产品描述

在同一底座上安装四台平板显示器，从而节省桌面空间。同时轻松浏览多台显示器，从而提高工作效率。

好处

使用专利的Paraview技术同步浏览多台显示器

合理放置显示器以达到最高工作效率

理线装置可组织和布置电缆

薄型底座可节省桌面空间

适用各种不同的LCD尺寸；通过滑动显示器将屏幕边缘对齐

耐用的铝钢结构，创建异常稳定的平台

技术参数

LCD 尺寸

≤ 24"†

承重能力

31 lbs*
14 kg

升降

—

倾斜

—

摆动

—

旋转

360° P/L

VESA

MIS-D

Part Number: 33-324-200

Description: DS100 Quad-Monitor Desk Stand (black)

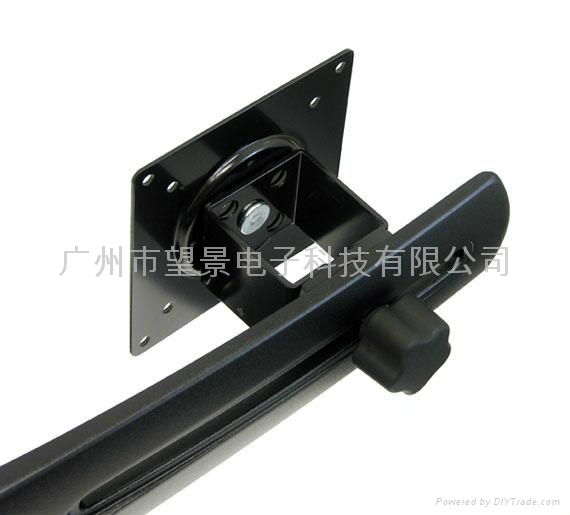

Includes base, 28" pole, two (2) Paraview bows, four (4) sliding brackets

† Maximum outside width of display is 23-1/4" (59 cm)

*Weight Capacity: 31 lbs (14 kg) per monitor; 124 lbs (56 kg) total

Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Meets UL Specification 1678 Tip Test

Height-adjustable bows

Install displays with 4°-angle off-set (see below): position them upward, inward, outward or downward for optimized viewing conditions

Shipping Dimensions: 32" x 15" x 7" (813 x 381 x 178 mm)

Shipping Weight: 24 lbs (10.9 kg)

Warranty: Five (5) years
