SFP 单纤双向 SC接口 155M -4.25G 500
| 型号： | BIDI SFP SC |
|---|---|
| 品牌： | HTT |
| 原产地： | 中国 |
| 类别： | 电子、电力 / 通信和广播电视设备 / 网络通信设备 |
| 标签︰ | 单纤SFP SC接口 , SFP BIDI 1.25G 2 , SFP BIDI 1.25G 4 |
| 单价： |
-
|
| 最少订量： | 1 件 |
产品描述
Description

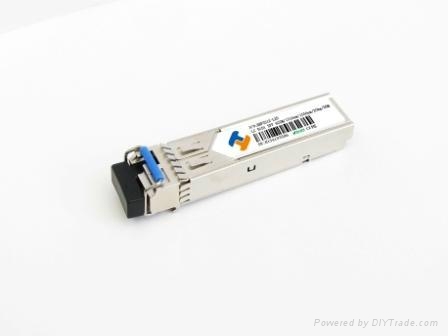

单纤 SFP SC 光模块
原装正品保证
优势性价格
一年保质期
通过Rohs认证
Features:
Data Rate up to 4.25Gbps
Single fiber full duplex solution
Metal enclosure for lower EMI
Receiver PIN or APD
Meet SFP Multi-Source Agreement and SFF-8472 with SC connector
Soft TX_FAULT and RX_LOS monitor
With user writable EEPROM
Operating Temperature 0℃~70 ℃, -40℃~85 ℃
Compatible with RoHS
Applications:
SONET/SDH
Fiber Channel
Ethernet
CPRI and OBSAI
Data Center
武汉恒泰通技术有限公司位于国家光通信发源地—“武汉·中国光谷”，公司主要生产有源光组件、有源光模块、光纤通信子系统三大系列产品，产品广泛应用于移动通信网络优化、通信网络、数据存储网络、高速FTTX、视频监控和交换机等领域。经过多年的运营和发展，公司已经建立起了一整套完善的供应链管理体系和成熟的配套供应资源，可以满足客户的低成本、高品质、交期快的要求。
| Part No. | Package | Wavelength | Data Rate | Reach | Output Power(dBm) | Sens(dBm) | Connector | Voltage |
| HBS3403-L2D | SC BiDi SFP | Tx1310nm/Rx1490nm | 155M | 20km | -14≤Pout≤-8 | ≤-31 | SC | 3.3V |
| HBS4303-L2D | SC BiDi SFP | Tx1490nm/Rx1310nm | 155M | 20km | -14≤Pout≤-8 | ≤-31 | SC | 3.3V |
| HBS3503-L2D | SC BiDi SFP | Tx1310nm/Rx1550nm | 155M | 20km | -14≤Pout≤-8 | ≤-31 | SC | 3.3V |
| HBS5303-L2D | SC BiDi SFP | Tx1550nm/Rx1310nm | 155M | 20km | -14≤Pout≤-8 | ≤-31 | SC | 3.3V |
| HBS3403-L4D | SC BiDi SFP | Tx1310nm/Rx1490nm | 155M | 40km | -5≤Pout≤0 | ≤-31 | SC | 3.3V |
| HBS4303-L4D | SC BiDi SFP | Tx1490nm/Rx1310nm | 155M | 40km | -5≤Pout≤0 | ≤-31 | SC | 3.3V |
| HBS3503-L4D | SC BiDi SFP | Tx1310nm/Rx1550nm | 155M | 40km | -5≤Pout≤0 | ≤-31 | SC | 3.3V |
| HBS5303-L4D | SC BiDi SFP | Tx1550nm/Rx1310nm | 155M | 40km | -5≤Pout≤0 | ≤-31 | SC | 3.3V |
| HBS4503-L8D | SC BiDi SFP | Tx1490nm/Rx1550nm | 155M | 80km | -5≤Pout≤0 | ≤-32 | SC | 3.3V |
| HBS5403-L8D | SC BiDi SFP | Tx1550nm/Rx1490nm | 155M | 80km | -5≤Pout≤0 | ≤-32 | SC | 3.3V |
| HBS4503-12D | SC BiDi SFP | Tx1490nm/Rx1550nm | 155M | 120km | 0≤Pout≤5 | ≤-32 | SC | 3.3V |
| HBS5403-12D | SC BiDi SFP | Tx1550nm/Rx1490nm | 155M | 120km | 0≤Pout≤5 | ≤-32 | SC | 3.3V |
| HBS3412-L2D | SC BiDi SFP | Tx1310nm/Rx1490nm | 622M | 20km | -12≤Pout≤-8 | ≤-24 | SC | 3.3V |
| HBS4312-L2D | SC BiDi SFP | Tx1490nm/Rx1310nm | 622M | 20km | -12≤Pout≤-8 | ≤-24 | SC | 3.3V |
| HBS3512-L2D | SC BiDi SFP | Tx1310nm/Rx1550nm | 622M | 20km | -12≤Pout≤-8 | ≤-24 | SC | 3.3V |
| HBS5312-L2D | SC BiDi SFP | Tx1550nm/Rx1310nm | 622M | 20km | -12≤Pout≤-8 | ≤-24 | SC | 3.3V |
| HBS3412-L4D | SC BiDi SFP | Tx1310nm/Rx1490nm | 622M | 40km | -5≤Pout≤0 | ≤-26 | SC | 3.3V |
| HBS4312-L4D | SC BiDi SFP | Tx1490nm/Rx1310nm | 622M | 40km | -5≤Pout≤0 | ≤-26 | SC | 3.3V |
| HBS3512-L4D | SC BiDi SFP | Tx1310nm/Rx1550nm | 622M | 40km | -5≤Pout≤0 | ≤-26 | SC | 3.3V |
| HBS5312-L4D | SC BiDi SFP | Tx1550nm/Rx1310nm | 622M | 40km | -5≤Pout≤0 | ≤-26 | SC | 3.3V |
| HBS3424-L2D | SC BiDi SFP | Tx1310nm/Rx1490nm | 1.25G | 20km | -9≤Pout≤-3 | ≤-23 | SC | 3.3V |
| HBS4324-L2D | SC BiDi SFP | Tx1490nm/Rx1310nm | 1.25G | 20km | -9≤Pout≤-3 | ≤-23 | SC | 3.3V |
| HBS3524-L2D | SC BiDi SFP | Tx1310nm/Rx1550nm | 1.25G | 20km | -9≤Pout≤-3 | ≤-23 | SC | 3.3V |
| HBS5324-L2D | SC BiDi SFP | Tx1550nm/Rx1310nm | 1.25G | 20km | -9≤Pout≤-3 | ≤-23 | SC | 3.3V |
| HBS3424-L4D | SC BiDi SFP | Tx1310nm/Rx1490nm | 1.25G | 40km | -5≤Pout≤0 | ≤-23 | SC | 3.3V |
| HBS4324-L4D | SC BiDi SFP | Tx1490nm/Rx1310nm | 1.25G | 40km | -5≤Pout≤0 | ≤-23 | SC | 3.3V |
| HBS3524-L4D | SC BiDi SFP | Tx1310nm/Rx1550nm | 1.25G | 40km | -5≤Pout≤0 | ≤-23 | SC | 3.3V |
| HBS5324-L4D | SC BiDi SFP | Tx1550nm/Rx1310nm | 1.25G | 40km | -5≤Pout≤0 | ≤-23 | SC | 3.3V |
| HBS4524-L8D | SC BiDi SFP | Tx1490nm/Rx1550nm | 1.25G | 80km | -2≤Pout≤3 | ≤-25 | SC | 3.3V |
| HBS5424-L8D | SC BiDi SFP | Tx1550nm/Rx1490nm | 1.25G | 80km | -2≤Pout≤3 | ≤-25 | SC | 3.3V |
| HBS4524-12D | SC BiDi SFP | Tx1490nm/Rx1550nm | 1.25G | 120km | 0≤Pout≤5 | ≤-31 | SC | 3.3V |
| HBS5424-12D | SC BiDi SFP | Tx1550nm/Rx1490nm | 1.25G | 120km | 0≤Pout≤5 | ≤-31 | SC | 3.3V |
| HBS3548-L2D | SC BiDi SFP | Tx1310nm/Rx1550nm | 2.5G | 20km | -5≤Pout≤0 | ≤-18 | SC | 3.3V |
| HBS5348-L2D | SC BiDi SFP | Tx1550nm/Rx1310nm | 2.5G | 20km | -5≤Pout≤0 | ≤-18 | SC | 3.3V |
| HBS4548-L4D | SC BiDi SFP | Tx1490nm/Rx1550nm | 2.5G | 40km | -2≤Pout≤3 | ≤-18 | SC | 3.3V |
| HBS5448-L4D | SC BiDi SFP | Tx1550nm/Rx1490nm | 2.5G | 40km | -2≤Pout≤3 | ≤-18 | SC | 3.3V |
| HBS4548-L8D | SC BiDi SFP | Tx1490nm/Rx1550nm | 2.5G | 80km | 0≤Pout≤5 | ≤-28 | SC | 3.3V |
| HBS5448-L8D | SC BiDi SFP | Tx1550nm/Rx1490nm | 2.5G | 80km | 0≤Pout≤5 | ≤-28 | SC | 3.3V |
| HBS353G-S5D | SC BiDi SFP | Tx1310nm/Rx1550nm | 3.125G | 500m | -9≤Pout≤-3 | ≤-18 | SC | 3.3V |
| HBS533G-S5D | SC BiDi SFP | Tx1550nm/Rx1310nm | 3.125G | 500m | -9≤Pout≤-3 | ≤-18 | SC | 3.3V |
| HBS353G-L2D | SC BiDi SFP | Tx1310nm/Rx1550nm | 3.125G | 20km | -5≤Pout≤0 | ≤-18 | SC | 3.3V |
| HBS533G-L2D | SC BiDi SFP | Tx1550nm/Rx1310nm | 3.125G | 20km | -5≤Pout≤0 | ≤-18 | SC | 3.3V |
| HBS354G-L2D | SC BiDi SFP | Tx1310nm/Rx1550nm | 4.25G | 20km | -5≤Pout≤0 | ≤-22 | SC | 3.3V |
| HBS534G-L2D | SC BiDi SFP | Tx1550nm/Rx1310nm | 4.25G | 20km | -5≤Pout≤0 | ≤-22 | SC | 3.3V |
