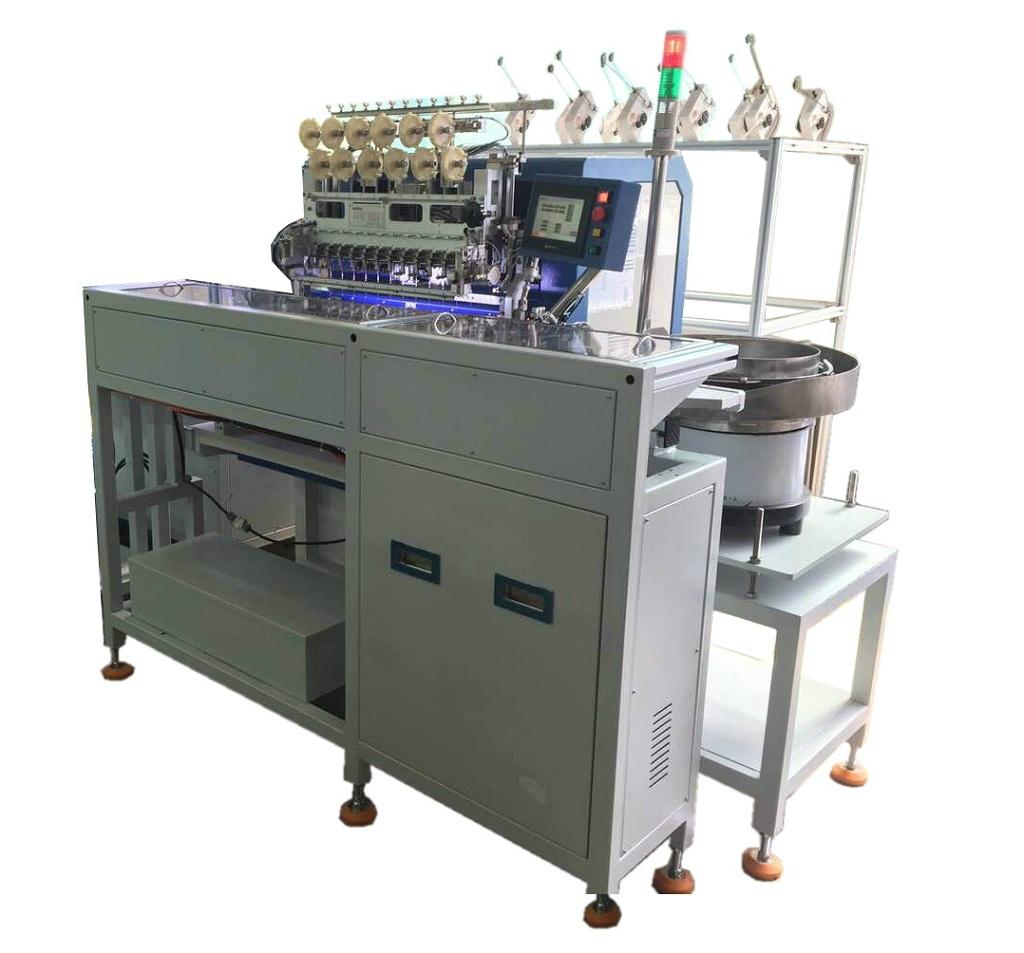

产品概述Product Overview

     设备适用于全自动上料包胶带线圈的大批量、高效率绕线包胶。
     Coil taping equipment for automatic feeding material，high-volume, high-efficiency winding plastic bag.

───────────────────────────────────────

设备特点Equipment Features
◆  设备核心标准件全部采用进口高品质元器件。

Core standard equipment all imported high-quality components.

◆  主体全部采用铸铁精密加工制作，单机重量820KG保证设备稳定、高速、长期运行。

All the main production precision machining cast iron, single weight 820KG ensure equipment stability, high-speed, long-term operation.

◆  设备的主轴夹具采用快速更换结构，不需要拆卸螺丝即可更换机种。

Equipment with fast replacement spindle clamp structure can be replaced without removing the screw Machine Models.

◆  搭载艾森独创的多轴板式包胶结构，彻底解决市面上起绕绕不上、包偏等不良现象。

Ascend original plate equipped with plastic bag multiaxial structure, solve from around the wound is not on the market, including migraine and other undesirable phenomena.

◆  可安装200米的大卷胶带，大大降低更换胶带的频率。

Roll of 200 meters can be installed on the tape, the tape greatly reduce the frequency of replacement.

◆  采用振动盘自动上料，机器自动下料，节约人工成本。

The vibration plate of automatic feeding.mechanical automatic blanking,saving labor costs.

◆  自动上料装置可自由拆装。

Automatic feeding equipment can be assemble and dsassemble.

───────────────────────────────────────

适用线圈Scope

高频变压器、低频变压器、开关电源线圈等各种变压器。

High-frequency transformers, low frequency transformers, switching power transformer coils and other.

───────────────────────────────────────

绕线机选项Winder Options

自动绞线机、气动固定剪刀、气动旋转剪刀、简易切刀、双线并绕、四线并绕、线嘴横梁翻转（0°、90°、135°）、线嘴旋转（0°-360°）、自动脱漆皮装置等。

Automatic stranding machine, pneumatic fixed scissors, pneumatic rotary scissors easy cutter, double winding, and around four lines, needle bar rotating （0°、90°、135°） guide pin rotating （0°-360°）paint detaching equipments etc.

──────────────────────────────────────

规格参数Specifications



型号 Model	RA10004-BS	RB6908-BS/RA10008-BS		RB4512-BS
主轴数Number of spindles	4	8		12
主轴最高转速(rpm) The max.speed of spindles	10000
主轴间距(mm)Spindle pitch	100	69/100		45
主轴伺服马达功率(w) Servo motor power	1000
最大骨架外径(mm) Max. external diameter of skeleton	49	34		22
上下料方式Loading method	自动上下料，皮带线传送Automatic loading and unloading,transmission belt line
控制系统Control system	可编程序控制器，支持多轴插补运算Programmable logic controller, support for multi-spindle interpolation operation
人机界面Man-machine interface	7寸彩色触摸屏7-Inch color touch screen
快速夹具接口内径（mm） Fast fixture interface inside diameter	10
适用线径(mm)Applicable wire	0.03～0.4(追加气动剪刀可达0.8) 0.03～0.4(Additional pneumatic scissors can be up to 0.8)
XYZ轴移动距离(mm) XYZ spindle distance	X：100   Y：140   Z：110
XYZ轴最高移动速度(mm/sec) XYZ spindle max.speed	260
包胶宽度规格(mm) Tape winding specifications	窄带包胶结构1-10 Narrowband encapsulated structure 1-10		标准包胶结构5-15 Standard encapsulated structure 5-15
	包胶带宽度变更时需要更换包胶夹具 Need to replace the plastic bag fixture when the package tape width changes
电源规格(v) Power supply specifications	AC 220V±10%，50Hz/60Hz
功率(w)Power	1500
气源规格(mpa)Air specifications	0.5～0.7
设备外形尺寸(mm) Device dimensions	1000(W)*1150(D)*1550(H)
重量(kg)Weight	820
