Vehicle

Vehicle

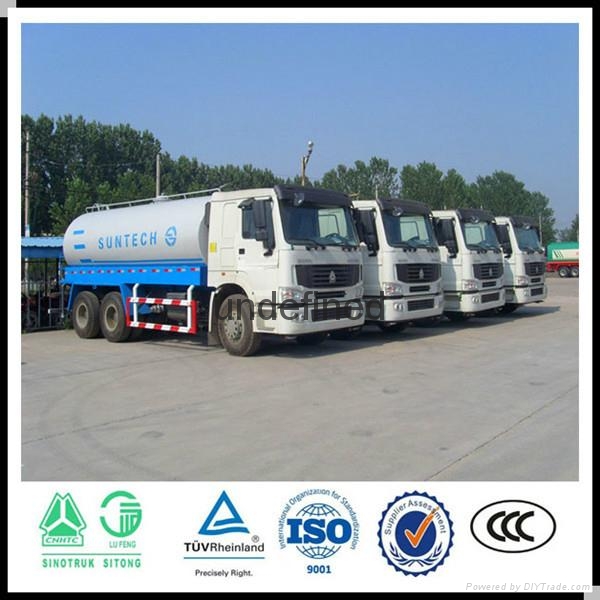

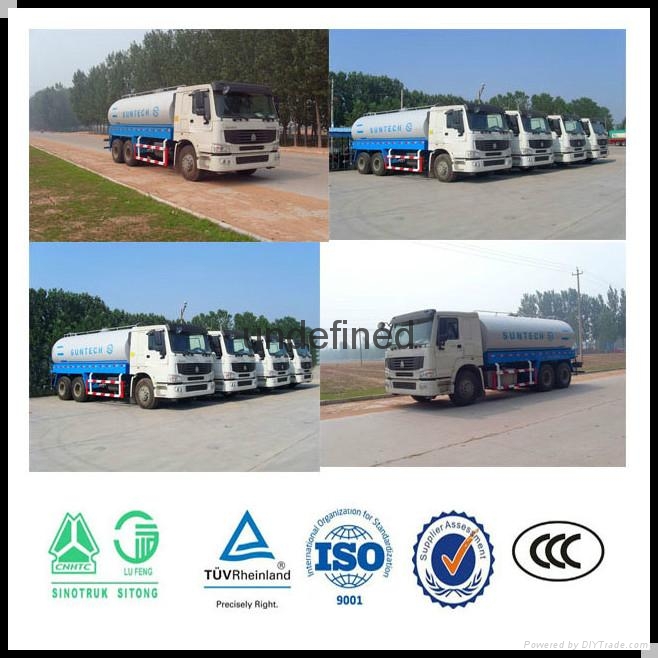

water sprinkler truck

Overall dimension

7350*2300*2650 MM

Curb weight

4060 KG

Max Loading capacity

8000 KG

Max speed

110

Drive wheel

4*2

Chassis

Chassis model

QL11009LARY

Wheelbase

3815 mm

Tire Specification

8.25R20

Nos of tire

6+1 Pcs

Engine

Engine model

4HK1-TCG40

Power

139

Engine Horse power

190

Displacement

5193

Emission Standard

EURO IV

Upper

Brand

CLW

Manufacturer

China SINOTRUK group SITONG specail purose vehicle co ., ltd

Material

Carbon steel

Thickness

5MM

Sprinkler width

>14

Hoisting suction

>8

Range

>35

Diversion time

≥5min

Flow

90m³/h
