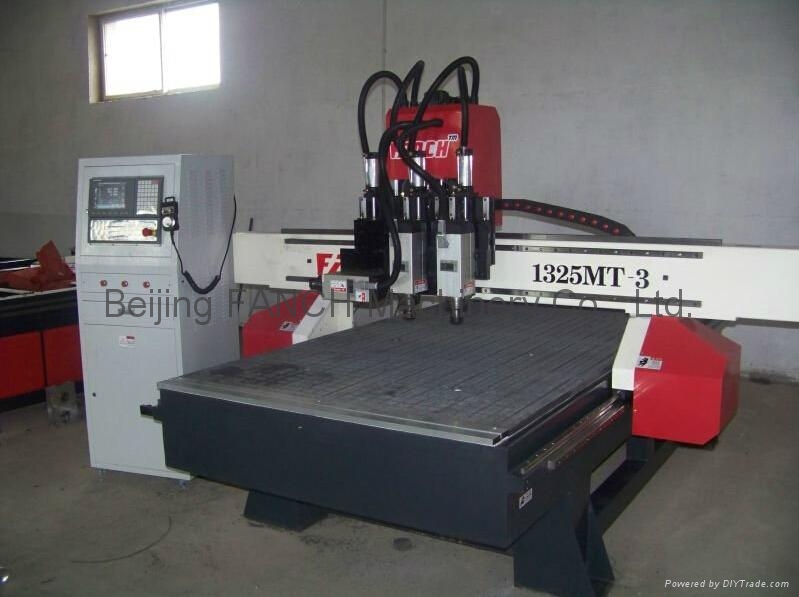

三主轴雕刻机

三主轴雕刻机
型号:FC-1325MT-3
品牌:锋弛
原产地:中国
类别:工业设备 / 通用机械 / 雕刻蚀刻设备
标签︰wood cnc router , wood cnc center , cnc engraver
单价: -
最少订量:1 件

产品描述

Scope of application:

Our products have been widely used in industrial board cutting, mould manufacturing and processing, wooden products processing, building decorating and furnishing, stone, glass, copper, aluminum and advertising products processing, etc.



Features:

  1. Gantry-moving and the whole machine uses high quality seamless welded steel structure, the assembly contact surface is used scraping process, the whole structure high temperature aging treatment, rigid and not deformed.
  2. This machine adopts the italian high speed air-cooled spindle motor, spindle cooling fully guaranteed, can work long time.
  3. Use imported Japanese Yaskawa servo drive system, torque, high precision, fast and stable performance.
  4. Use Taiwan Syntec controlling system, good compatibility, compatible type3/ Artcam/ Castmate/ Artcut/ CAD/ CAM and other design software. Can control the completion of multi-dimensional 3D processing, and can do fast, smooth three-dimensional processing, carving and cutting.
  5. Table is vacuum absorption countertop which is an international leader technic, made of high strength rigid plastic, high-absorption edge and strong absorption of different sizes of materials, big density, non-deformation.
  6. Auto-oiling lubrication system easy to operate, greatly improve the life of the various components of the machine.
  7. Standard three-spindle and automatic rotation. Able to carry out positive and lateral drilling, carving, engraving, milling surface and so on. To meet the needs of large and medium processing enterprises.





Performance parameter:



Outer dimension

2300*3000*1600

X, Y axis travel

1300*2500mm

Z axis travel

>300mm

Table size

1340*3000mm

Max running speed

60m/min

Max engraving speed

30m/min

Max feed-in height

300mm

Resolution ratio

±0.001mm

Command code

G-code.uoo.mmg.plt

Sofeware operating environment

Windows98/2000/xp

Power (not include spindle0

4.5KW

Work voltage

AC380V/50Hz

Spindle power

6.0kw ( Italy HSD air-cooling spindle)

Spindle rotating speed

6000-18000rpm/min

Work mode

AC servo, rack and pinion transmission

Rail

Imported Taiwan square rail

Control system

Syntech control system

Table

Vacuum sorb table

Structrue

Seamless welding steel structure

 *Parameter could be customised.

三主轴雕刻机 1三主轴雕刻机 2三主轴雕刻机 3
