Order number:                                 KL-AT-V(ZN)HH

Standard:　　　　　　　　　　　　　　　　　　　　　EN50170-2

Classification:　　　　　　　　　　　　　　　　　　　　Type  A

Interface:　　　　 　　　　　　　　　　　              RS 485　　　　　　　　　　　　　　　　　　　　

Use:

For fixed installation indoor and outdoor, on racks , in conduits

Application:

Fieldbus cable for Profibus FMS/DP and FIP according to EN 50170 part 2 and part 3, suitable for IP 20, 9-pin D-Sub connectors and IP 67, M 12 connectors

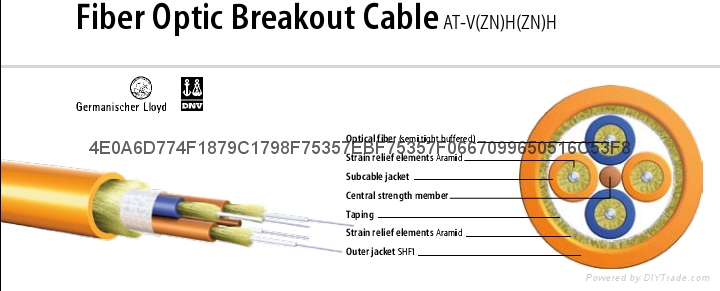

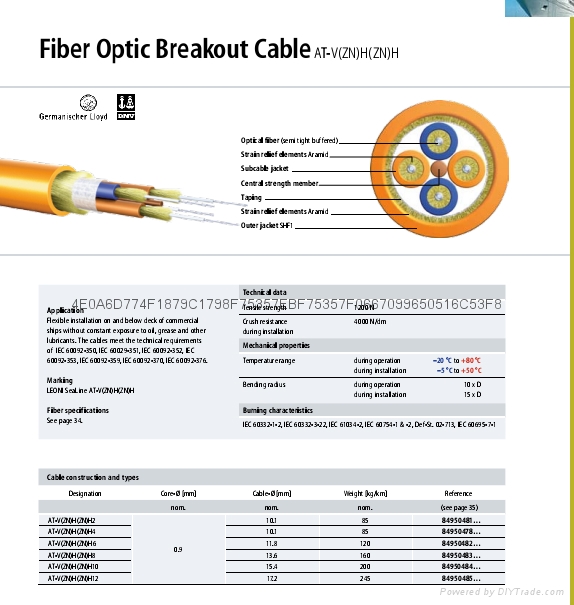

Construction

Conductor:  Insulation:

Color:

Inner sheath:

Outer sheath:　　

Geometry:

Weight:

solid plain copper, AWG 22/1

cellular polyethylene with skin layer

blue

Low smoke zero halogen compound, color: yellow

Low smoke zero halogen compound, color: yellow

4.1x6.6 mm

approx. 35kg/km

Physical Properties and Fire behavior

Max. tensile strength:　　

Crushing resistance:

Min bending radius:

Temperature:

Flame retardant:

Corrosive gas emission:

Zero halogen content:　　　　

Smoke Content：　

200 N

50N/cm permanent

100N/cm short term

150mm

-5℃-+60℃ for operation

-5℃-+50℃ for installation

IEC 60332-1

IEC 60754-1，max.0%

IEC 60754-2

IEC 61034

Optical Properties at20℃

Attenuation   at 850nm

at 1300nm

at 1310nm

at 1550nm

max.

dB/km

3.0

0.7

0.36

0.25

Band width   at 850nm

            at 1300nm

min.

MHz x km

600

1200

Dispersion   at 1310nm

            at 1550nm

max.

ps/nm x km

3.5

18
