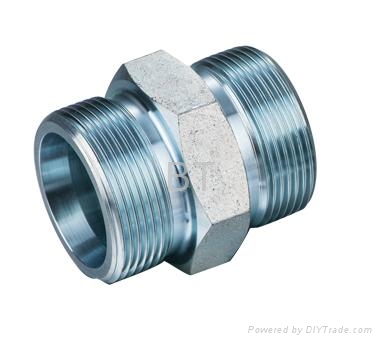

液压过渡接头公制卡套式24度锥直通对丝

产品描述

高品质液压过渡接头公制卡套式24度锥外螺纹直通

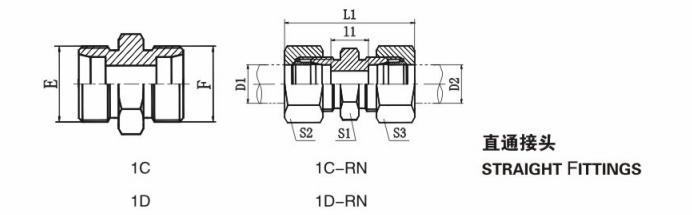

Part No.	Thread		Tube O.D.		Dimensions					Mpa
Part No.	E	F	D1	D2	I1	L1	S1	S2	S3	Mpa
1C-12	M12*1.5	M12*1.5	6	6	10	39	12	14	14	31.5
1C-14	M14*1.5	M14*1.5	8	8	11	40	14	17	17
1C-18	M18*1.5	M18*1.5	12	12	14	43	19	22	22
1C-22	M22*1.5	M22*1.5	15	15	16	46	24	27	27
1C-26	M26*1.5	M26*1.5	18	18	16	48	27	32	32
1C-30	M30*2	M30*2	22	22	20	52	32	36	36	16
1C-36	M36*2	M36*2	28	28	21	54	41	41	41
1C-45	M45*2	M45*2	35	35	20	63	46	50	50
1C-52	M52*2	M52*2	42	42	21	66	55	60	60
1D-14	M14*1.5	M14*1.5	6	6	16	45	14	17	17	63
1D-16	M16*1.5	M16*1.5	8	8	18	47	17	19	19
1D-18	M18*1.5	M18*1.5	10	10	17	49	19	22	22
1D-20	M20*1.5	M20*1.5	12	12	19	51	22	24	24
1D-22	M22*1.5	M22*1.5	14	14	22	57	24	27	27
1D-24	M24*1.5	M24*1.5	16	16	21	57	27	30	30	40
1D-30	M30*2	M30*2	20	20	23	66	32	36	36
1D-36	M36*2	M36*2	25	25	26	74	41	46	46
1D-42	M42*2	M42*2	30	30	27	80	46	50	50
1D-52	M52*2	M52*2	38	38	29	90	55	60	60	31.5
Note: In case you are intersted to order the adapter in complete set with cutting ring and nut, it is necessary to insert suffix"RN" after our part No., for example 1C-30RN.
