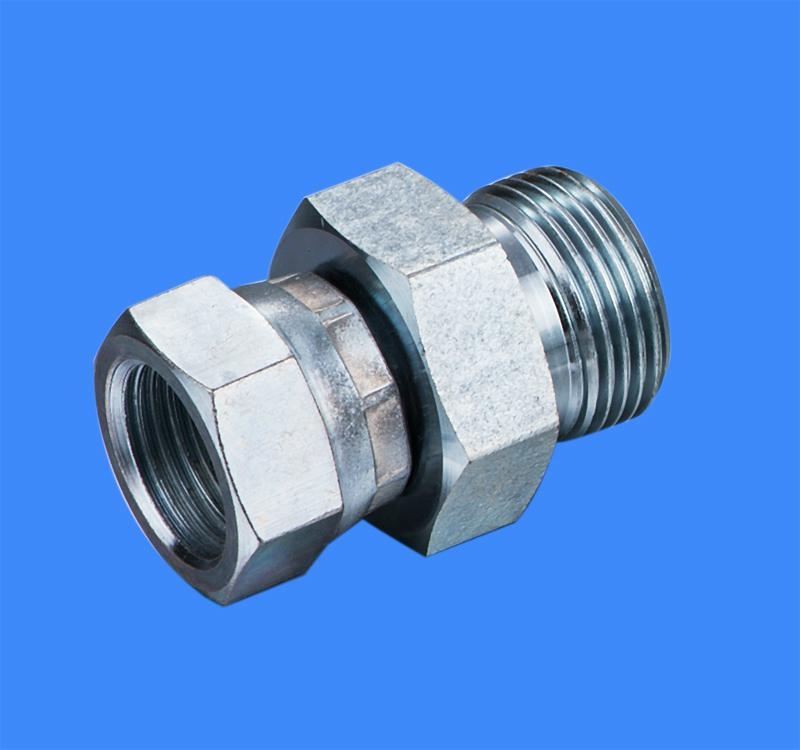

英制内外纹液压过渡接头
| 型号： | 2B |
|---|---|
| 品牌： | - |
| 原产地： | 中国 |
| 类别： | 工业设备 / 机械五金 / 液压元件 |
| 标签︰ | 液压接头 , 英制内外纹 |
| 单价： |
-
|
| 最少订量： | 100 件 |
产品描述
高品质液压过渡接头
英制内外纹过渡接头BSPP 60度锥密封或组合垫密封双用接头
产品代码： 1B
产品材质：碳钢，不锈钢
表面处理：镀锌
颜色：银白，金黄，黑色
包装：塑料袋+纸箱（可按要求订制）
付款方式：T/T
接头形式：内/外纹 直通
| Part No. | Thread | Dimensions | |||||
| E | F | A | B | L | S1 | S2 | |
| 2B-02 | G1/8"*28 | G1/8"*28 | 10 | 5.5 | 25 | 14 | 14 |
| 2B-02-04 | G1/8"*28 | G1/4"*19 | 10 | 5.5 | 27 | 14 | 19 |
| 2B-04 | G1/4"*19 | G1/4"*19 | 12 | 5.5 | 29 | 19 | 19 |
| 2B-04-06 | G1/4"*19 | G3/8"*19 | 12 | 6.3 | 30.5 | 19 | 22 |
| 2B-04-08 | G1/4"*19 | G1/2"*14 | 12 | 7.5 | 32 | 19 | 27 |
| 2B-06-08 | G3/8"*19 | G1/2"*14 | 13.5 | 7.5 | 35.5 | 22 | 27 |
| 2B-06-10 | G3/8"*19 | G5/8"*14 | 13.5 | 9.5 | 36 | 22 | 30 |
| 2B-08 | G1/2"*14 | G1/2"*14 | 16 | 7.6 | 40 | 27 | 27 |
| 2B-08-06 | G1/2"*14 | G3/8"*19 | 16 | 6.3 | 38.5 | 27 | 22 |
| 2B-08-12 | G1/2"*14 | G3/4"*14 | 16 | 10.9 | 41 | 27 | 32 |
| 2B-10 | G5/8"*14 | G5/8"*14 | 17.5 | 9.5 | 42 | 30 | 30 |
| 2B-10-08 | G5/8"*14 | G1/2"*14 | 17.5 | 7.5 | 41.5 | 30 | 27 |
| 2B-10-12 | G5/8"*14 | G3/4"*14 | 17.5 | 10.9 | 42.5 | 30 | 32 |
| 2B-12 | G3/4"*14 | G3/4"*14 | 18.5 | 10.9 | 44.5 | 32 | 32 |
| 2B-12-10 | G3/4"*14 | G5/8"*14 | 18.5 | 9.5 | 44 | 32 | 30 |
| 2B-12-16 | G3/4"*14 | G1"*11 | 18.5 | 11.7 | 46 | 32 | 41 |
| 2B-16 | G1"*11 | G1"*11 | 20.5 | 11.7 | 50 | 41 | 41 |
| 2B-16-12 | G1"*11 | G3/4"*14 | 20.5 | 10.9 | 49 | 41 | 32 |
| 2B-16-20 | G1"*11 | G1.1/4"*11 | 20.5 | 11 | 53 | 41 | 50 |
| 2B-20 | G1.1/4"*11 | G1.1/4"*11 | 20.5 | 11 | 55 | 50 | 50 |
| 2B-20-16 | G1.1/4"*11 | G1"*11 | 20.5 | 11.7 | 52 | 50 | 41 |
| 2B-20-24 | G1.1/4"*11 | G1.1/2"*11 | 20.5 | 13 | 55.5 | 50 | 55 |
| 2B-24 | G1.1/2"*11 | G1.1/2"*11 | 23 | 13 | 58 | 55 | 55 |
| 2B-32 | G2"*11 | G2"*11 | 25.5 | 16 | 63.5 | 70 | 70 |
