济南永福泰1830双头雕刻机

济南永福泰1830双头雕刻机
型号:1830
品牌:永福泰
原产地:中国
类别:工业设备 / 通用机械 / 雕刻蚀刻设备
标签︰雕刻机 , 石材雕刻机 , 永福泰雕刻机
单价: -
最少订量:1 台

产品描述

采用进口直线方形导轨,高精度斜齿齿条,双排四列滚珠滑块,承重冗余大、运行平稳,精度高,寿命长。

Adoptsimported linear square rails,high-precision helical rack, doublerow and four column ball slider,heavy loading, stable operation,high precision,longlife.

★钢架结构机身,刚性好,抖动少,长时间使用变形量少,使定位精度更加精确,机器承重力可达一吨以上,Y轴采用双丝杠传动,实现Y轴同步,消除阻力,避免龙门有扭曲现象,使得机器曲直线雕刻更加顺畅。
Steelframe structure, good rigidity, low jitter, long timeuse of lessdeformation, so that more precise positioning accuracy,machinebearing up to a ton of above, the Y axis by double screwdrive,realize the Y axis synchronous, eliminating the resistance,toavoid Longmen distorted, making the machine more smoothlycurvedstraight lineengraving.

★恒功率5.5KW主轴电机,矢量型变频器及恒功率,进口四轴承低噪音主轴,保证低转速下扭钜不变来确保刀得使用寿命和工作效率,切削力度大,效率高。

Constantpower 5.5KW spindle motor, converterand constant power, low noiseimport four bearing spindle, guaranteeunder low speed to ensurethat the knife was constant torsion majorservice life and workefficiency, cutting intensity,highefficiency.

★加滑动上料装置,将重物放在滑轮上轻松推移。

Plussliding feeding device, the load on pulleyeasypassage.

★软件兼容性好,可兼容Type3/Artcam/Castmate/文泰、精雕等多种CAD/CAM设计制作软件

Goodcompatibility, can be compatible with Type3/ Artcam / Castmate /Wen Tai, carved and other CAD / CAMdesignsoftware.

★单向刀具冷却系统,有效提高刀具使用寿命

Checktool cooling system, effectively improvetoollife.

★全部防尘防水设计,全方位保护机器传动部件

Dustproofwaterproof design, all-roundprotection of machine transmissionparts.

★高硬度聚酯板平台耐用不变形

Highhardness of polyester plate platformdurable withoutdeformation.

★防尘、防静电密封性电脑控制柜

Dust,anti-static seal computercontrolcabinet.

 技术参数/Technicai-parameters



雕刻深度Carvin**epth

最大雕刻深度300mm             Maximumdepth of300mm

雕刻速度Carvingspeed

最大雕刻速度6000/分             Maximumspeed 6000 /min

总功率  Totalpower

7.5kw

防水功能

Waterprooffunction

三轴全进口防水材料              Threeaxle all imports of waterproofmaterial

主轴电机Spindlemotor

高速水冷电主轴                  Highspeed water cooledspindle

传动部件Transmissionparts

XY轴:原装进口小模数、高精度,直尺、斜齿齿条。Z轴:进口丝杆     TheXY axis: imported small modulus, high precision, ruler,helicalrack. The Z axis: importedscrew

直线导轨Linearguide

台湾原装进口矩形重载高精度四列滚珠直线导轨    Taiwanimports original rectangular heavy load and high precisionfourcolumn ball linear guiderail

管路    Pipeline

防老化水管油管                 Antiaging pipetubing

电气线路Electricalcircuit

防老化寿命屏蔽电缆线            Antiaginglife shieldcable

冷却    Cooling

循环水回流设计                  Circulatingwaterreturndesign

重量     Weight

1500kg

主轴转速 Spindlespeed

24000转/分                     24000rpm

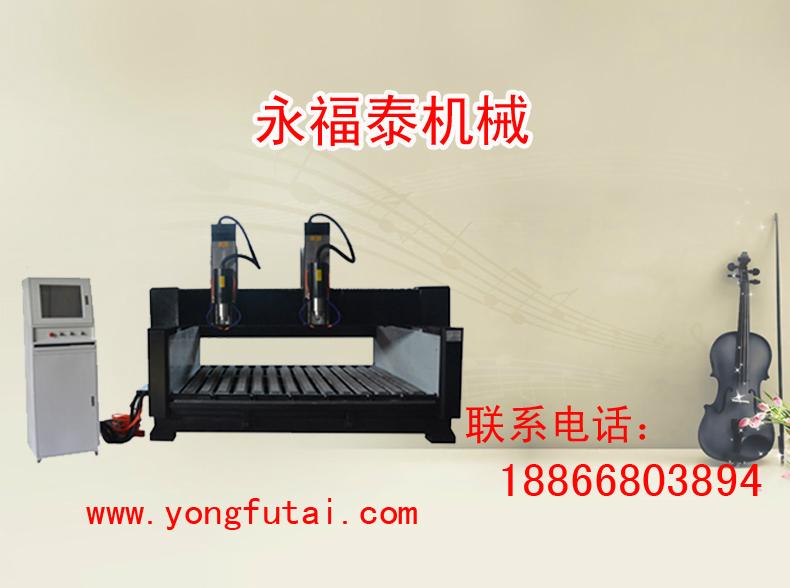

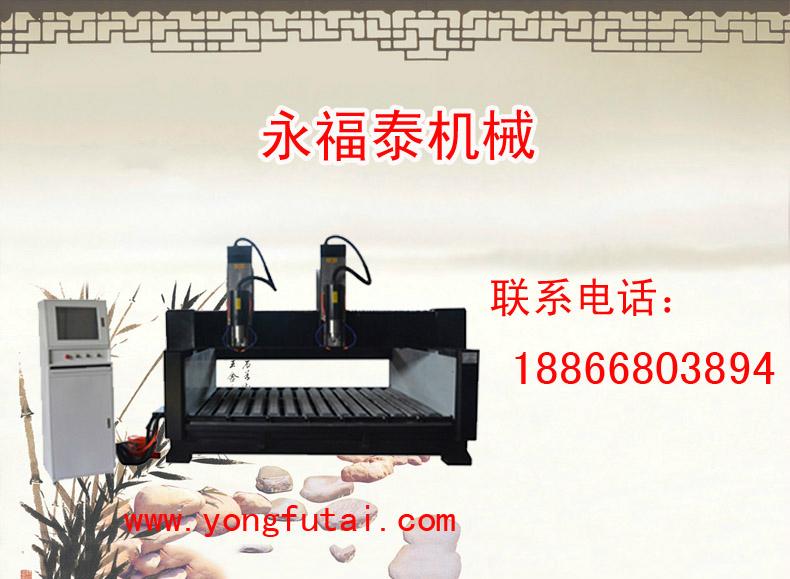

济南永福泰1830双头雕刻机 1济南永福泰1830双头雕刻机 2济南永福泰1830双头雕刻机 3济南永福泰1830双头雕刻机 4
