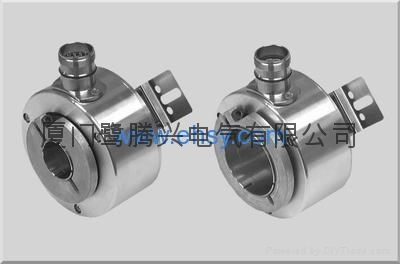

PVS58N-011AGR0BN-0013 倍加福编码器

PVS58N-011AGR0BN-0013 倍加福编码器
型号：514808
品牌：倍加福（P+F）
原产地：德国
类别：电子、电力 / 其它电力、电子
标签︰倍加福 , 工业备件 , 现货低价
单价： ¥0.01 / 件
最少订量：1 件
发送查询

产品描述

General specifications
Detection type photoelectric sampling
Device type Singleturn absolute encoder
Functional safety related parameters
MTTFd 80 a
Mission Time (TM) 20 a
L10h 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
Diagnostic Coverage (DC) 0 %
Electrical specifications
Operating voltage 10 ... 30 V DC
No-load supply current max. 230 mA at 10 V DC
max. 100 mA at 24 V DC
Power consumption max. 2.5 W
Time delay before availability < 1000 ms
Linearity ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
Output code binary code
Code course (counting direction) programmable,
cw ascending (clockwise rotation, code course ascending)
cw descending (clockwise rotation, code course descending)
Interface
Interface type PROFIBUS
Resolution
  Single turn up to 16 Bit
  Overall resolution up to 16 Bit
Transfer rate 0.0096 ... 12 MBit/s
Standard conformity PNO profile 3.062, RS-485
Connection
Terminal compartment in removable housing cover
Standard conformity
Degree of protection DIN EN 60529, IP65
IP66 (with shaft seal)
Climatic testing DIN EN 60068-2-30 , no moisture condensation
Emitted interference EN 61000-6-4:2007
Noise immunity EN 61000-6-2:2005
Shock resistance DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz
Approvals and certificates
UL approval cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature -40 ... 85 °C (-40 ... 185 °F)
Storage temperature -40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
  Combination 1 housing: powder coated aluminum
flange: aluminum
shaft: stainless steel
  Combination 2 (Inox) housing: stainless steel
flange: stainless steel
shaft: stainless steel
Mass approx. 550 g (combination 1)
approx. 1100 g (combination 2)
Rotational speed max. 12000 min -1
Moment of inertia 30 gcm2
Starting torque ≤ 3 Ncm (version without shaft seal)
Shaft load
  Axial 40 N
  Radial

110 N
