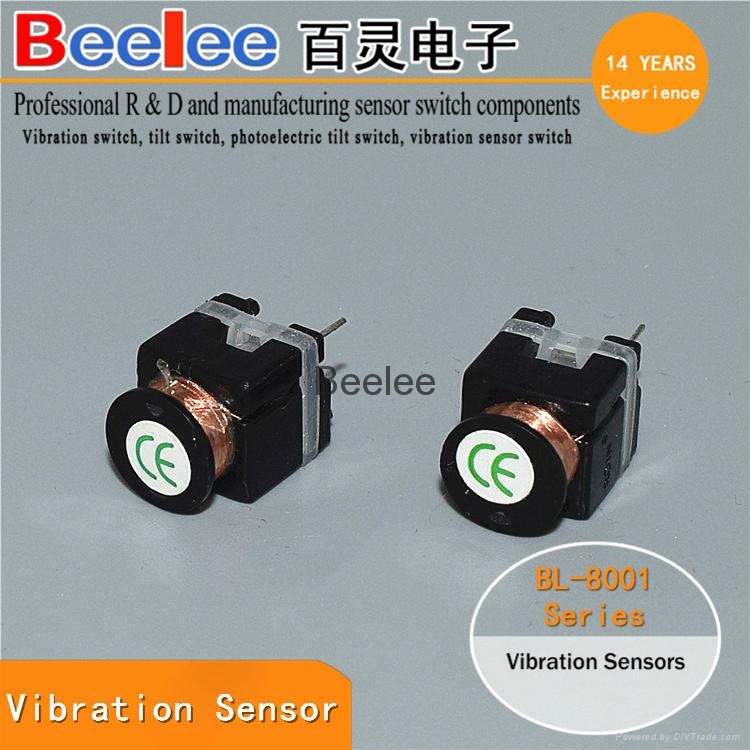

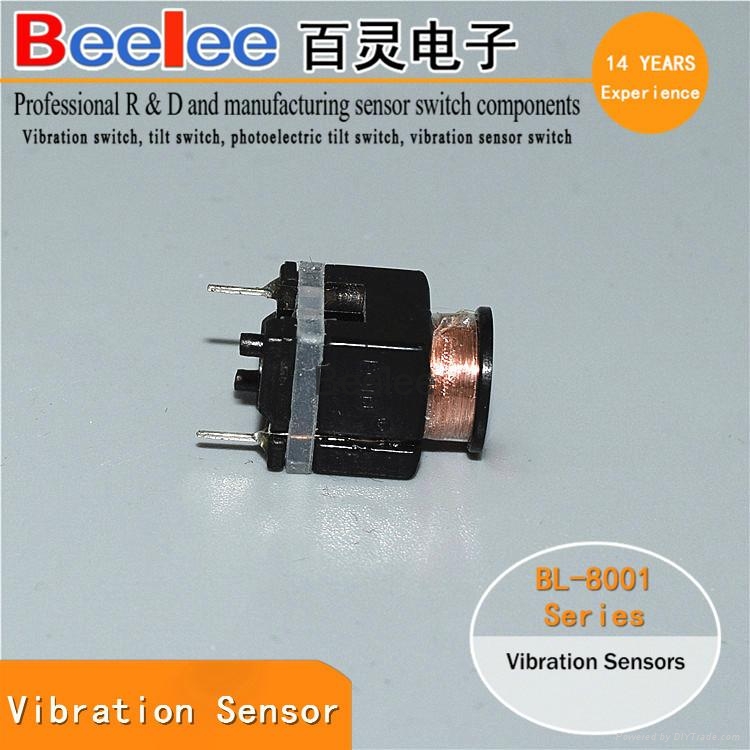

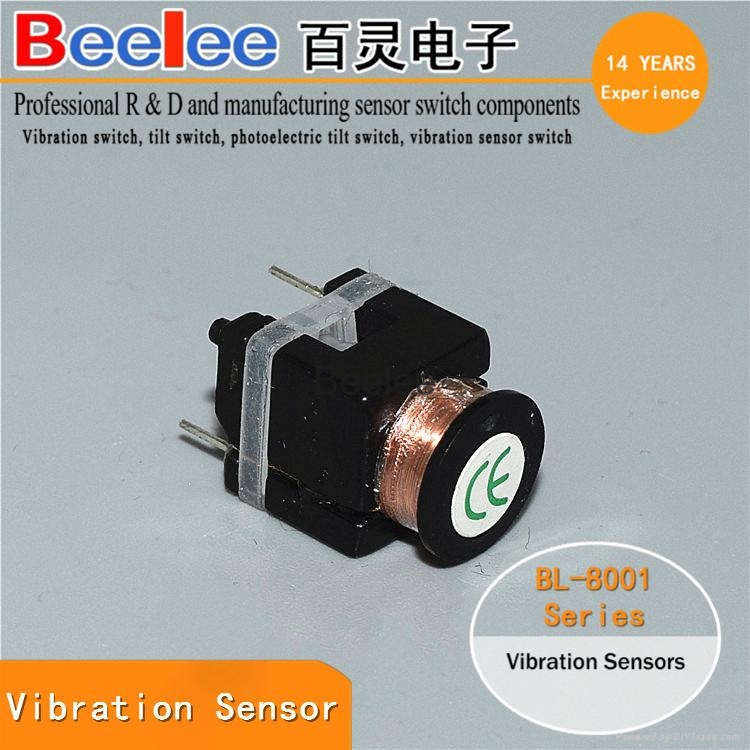

Vibration switch sensor BL 8001 is electric tilting component and is of vibration alarm.



Electrical characteristics :

 Voltage: less than12V

 Current: <20mA

 Tilt Sensor Closed resistance: <10 ohm

 Open resistance: >10M ohm

 Temperature range: Operating: -40 to 85’C

 Pull force of terminal: 500gf for 1 minute

 Humidity: 95% RH, 40°C for 96 hours

Operating lifespan: above 200,000 cycles





Bill of Material :

 Housing and cover: PE/PET heat shrinkable tubing

 Sealing adhesive: Temperature resistance nylon

 Ball: Stainless steel, gold-plated

 Lead wire: brass, gold-plated

 Guide pin: Brass, gold-plated





Applications  :

Automotive devices

Household appliances

automatic power-off function for household appliances

Air conditon / Air warm blower fall prevention protect switches

Communication devices





 Features :

  Cerification  :



RoHS compliance

Reach Compliance

ISO9001:2008





  Advantage:



 Manufacturer

 Competitive price can be offered

 Environmental Friendly

 OEM & ODM Customized is accepted

 Skilled and well-trained work team

 On-time delivery

 Durable and reliable

 Ecnomical,practical,and easy to using

 Samples delivery time within 24hours



Detailed Information About the Tilt Switches
Material	Ball, Tube, Leads, Spring,Diod
Type	Vibration sensor switches /Roll ball tilt switches /Optical roll ball sensor/ Mercury switches/  Roll Ball Switch/ ball switches  / electronic tilt switches
Finish	Nickel-plated, silver-plated, gold-plated, imitation gold-plated according to customers request  for ball switches / electronic tilt switches
Advantage	High quality, competitive prices, first-class semi- automatic production equipment , safe package and prompt delivery Tilt Sensor / electronic tilt switches
Application	Toys, Automotive device, Household appliance, Anti-theft alarm system, Car GPS and tracking
Payment terms	T/T, L/C, Western Union, Paypal
Lead-time	10 days based on the customer quantity
Packaging	Inner plastic bag, inner small boxer, outer carton box, and advised by customer forelectronic tilt switches
Certification	ISO9001:2008, and ROHs
