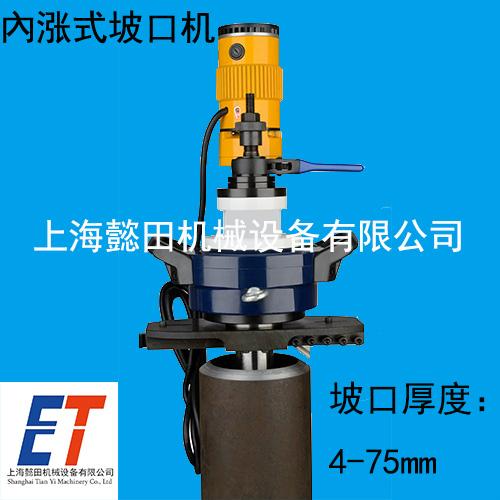

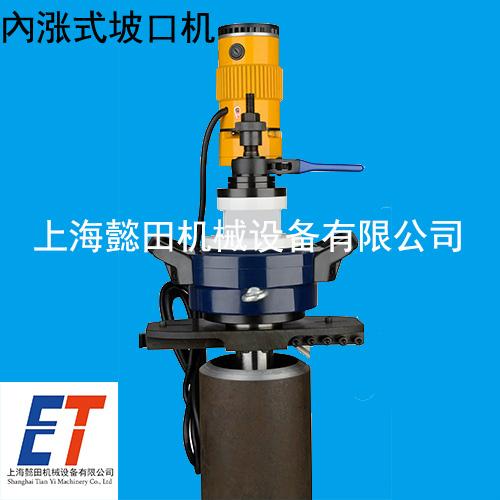

Up inside the groove machine

Brief introduction:

This machine is specially for the pipeline welding preparation before cutting, end cutting, cutting groove, this model is increase within type groove machine, the aircraft is installed, easy to operate, easy to, the cutting force is big, processing range is bigger also. Mainly used for forming tool for pipe end machining, large wall thickness, shape groove can be finished in one time and speed.

Advantages:

Groove are of good quality and fast speed, and the operation is simple, easy to the cutting force is big, wide processing cutting quantity adjustment, groove Angle between 0 °, 45 ° to choose, and can automatically feed

Tube by forming tool machining, large wall thickness, shape groove can be finished in one time and speed of small size, beautiful shape, simple operation, high precision, good performance of chamfer blades installed or only takes a few seconds

model

Scope of groove

Rock thick

EN30

18 to 30 mm

1.5-15 mm

EN89

28-89 - mm

1.5-15 mm

EN159

65-159 - mm

3-20 mm

EN273

80-273 - mm

4-20 mm

EN273S

80-273 - mm

15-75 - mm

EN356

150-356 - mm

4-20 mm

EN356S

150-356 - mm

15-70 - mm

EN630

300-630 - mm

4-20 mm

EN630S

300-630 - mm

15-75 - mm

EN850

450-850 - mm

6 to 20 mm
