OBDBEST CR-100 OBDII EOBD代码读取扫描仪

编号：CTC118



CR-100采用最新的ARM处理器系统框架，具有便携式通用自动诊断代码阅读器设备，由OBDBEST电子有限公司研发，致力于汽车电子研发多年，也是高科技企业，拥有自己的品牌 - OBDBEST。 Swift响应，一个3.2“全彩液晶屏，华丽生动，精美设计，使用方便，人性化菜单，根据环境和强度三种背景主题选择，自动调节背光，方便用户在车内使用时光线不强。



特征

诊断功能

读取动态数据流

准备状态测试

读取当前的DTC

O2传感器检测测试

阅读车辆信息

阅读on-boad系统或组件控件

MIL指示器

搜索冻结帧数据

清除DTC

读取待处理的DTC

测试数据播放

阅读永久性DTC

记录，保存和播放直播数据长达8小时！



功能测试

车辆燃油消耗试验

车辆加速试验。

氧传感器诊断试验

OBDII＆EOBDII＆CAN BUS



技术参数

屏幕：3.2,320 * 240彩色液晶屏。

输入电压范围：9〜18V

工作电流：典型值100mA 12V

典型消耗：<1.2W

接线方式连接方式：标准16pin诊断端口。

工作温度：0°C〜50°C

存储温度：-20°C〜70°C @ RH 60％



包

1pc * CR-100主机

1pc * USB电缆

1pc *用户手册

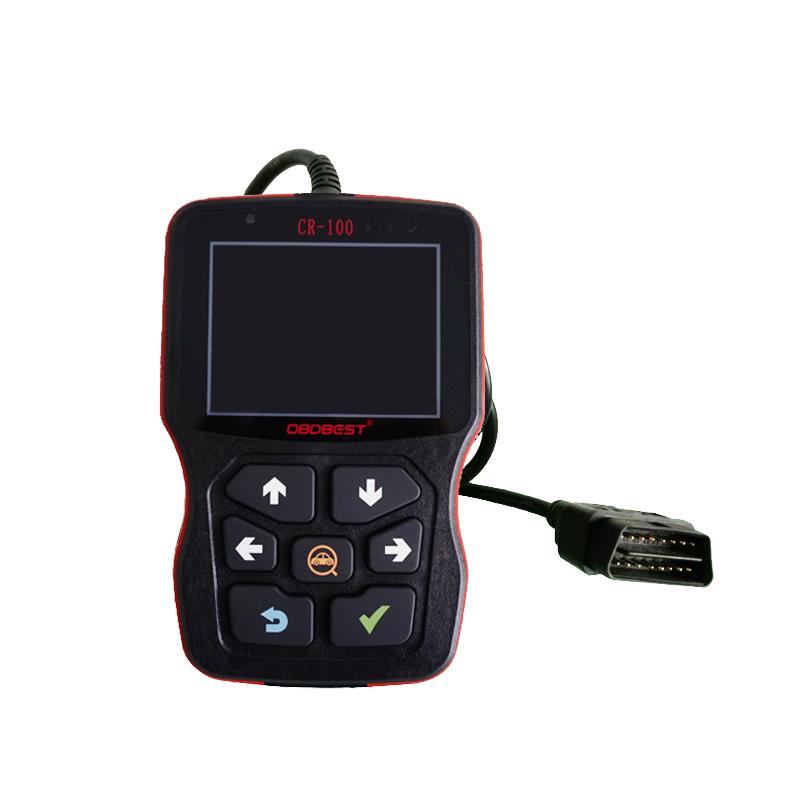

OBDBEST CR-100 OBDII EOBD Code Read Scanner

ID NO.：CTC118



CR-100 uses the latest ARM processor system frame with Portable universal auto diagnostic code reader equipment that researched by the OBDBEST electronic CO. LTD which has devoted itself to auto electronic research and development  for many years, also, it is the high-tech enterprise, with its own brand-- OBDBEST. Swift response, a 3.2" full color LCD screen, Gorgeous vivid, Streamlining design, easy to use, humanized menu, three background subject choices according to the environment and the strength of the light. It will automatically adjust the backlit, it is convenient for the users to use it in the car when the light is not strong.



Features

Diagnostic function.

Read dynamic data stream

Readiness status test

Read current DTCs

O2 sensor detection test

Read vehicle information

Read on-boad systems or components control

MIL Inicator

Search freeze frame data

Clear DTCs

Read pending DTCs

Tested data playback

Read permanent DTCs

Record, Save & Playback Live data up to 8 hours!



Function test

Vehicle fuel consumption test

Vehicle acceleration test.

Oxygen sensor derection test

OBDII & EOBDII & CAN BUS



Technical parameter

Screen：3.2,320*240 colorful LCD screen.

Input voltage range： 9 ~ 18V

Working current： typical value100mA  12V

Typical consumption：<1.2W

Wiring Connected way：standard 16pin diagnostic port.

Working temperature： 0 °C ~ 50 °C

Storage temperature：-20 °C ~ 70 °C @ RH 60%

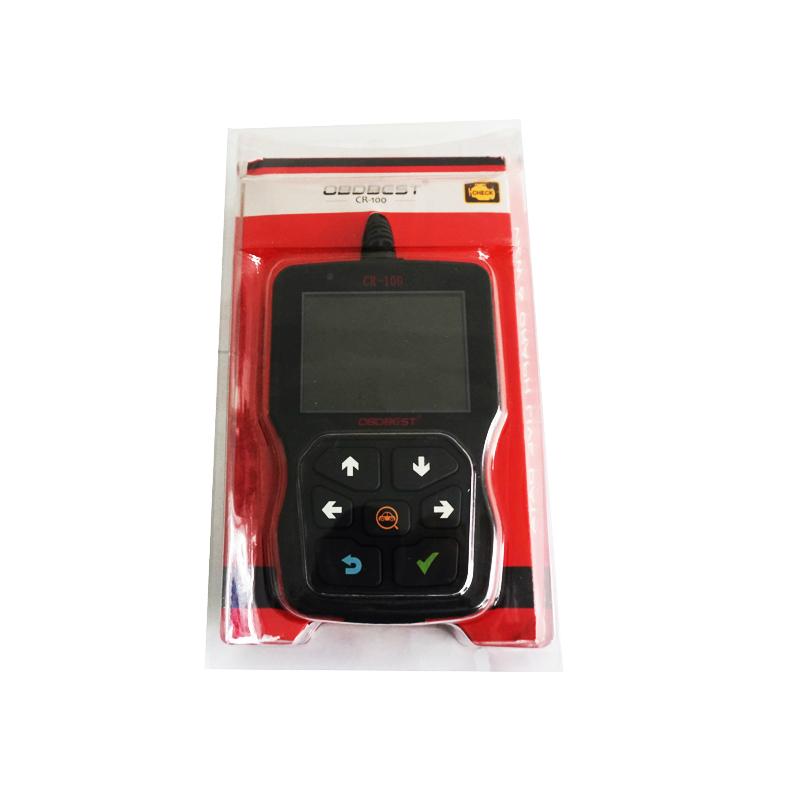

Package

1pc*CR-100 main unit

1pc*USB cable

1pc*User Manual
