四川橡胶耐压防爆挠性连接管DN32＊1500

产品描述

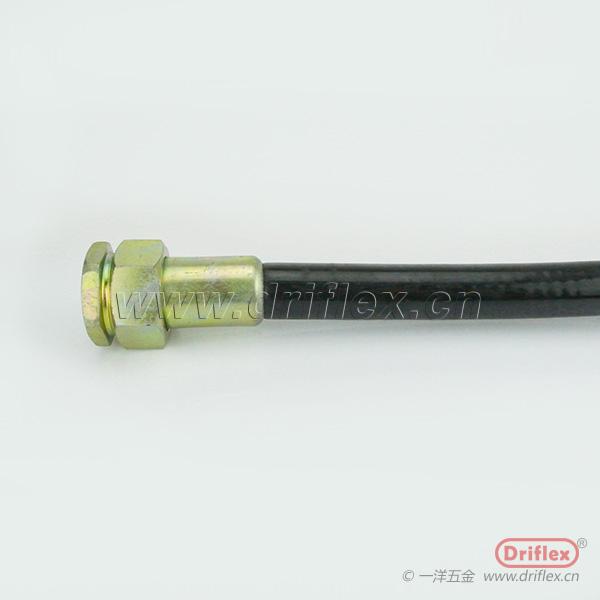

橡胶防爆挠性连接软管			Explosion Proof Flexible Pipe
			材质：金属软管+橡胶披覆
			防爆等级：Exe Ⅱ
			Materials:Steel + rubber
			Explosive:Exe Ⅱ



型号	管内径	接头管螺纹		长度	弯曲半径
Part No.	I.D(mm)	（G")		Length(mm)	Bending Radius(mm)
EXR700xG1/2"	15.0	1/2"		700	80
EXR1000xG1/2"	15.0	1/2"		1000	80
EXR700xG3/4"	20.0	3/4"		700	110
EXR1000xG3/4"	20.0	3/4"		1000	110
EXR700xG1"	25.0	1"		700	145
EXR1000xG1"	25.0	1"		1000	145
EXR700xG1-1/4"	32.0	1-1/4"		700	160
EXR1000xG1-1/4"	32.0	1-1/4"		1000	180
EXR700xG1-1/2"	40.0	1-1/2"		700	210
EXR1000xG1-1/2"	40.0	1-1/2"		1000	210
EXR700xG2"	50.0	2"		700	250
EXR1000xG2"	50.0	2"		1000	250
EXR700xG2-1/2"	70.0	2-1/2"		700	350
EXR1000xG2-1/2"	70.0	2-1/2"		1000	350
EXR700xG3"	80.0	3"		700	400
EXR1000xG3"	80.0	3"		1000	400
EXR700xG4"	100.0	4"		700	500
EXR1000xG4"	100.0	4"		1000	500

适用范围：
1区 2区危险场所。
ⅡA、ⅡB、ⅡC 类爆炸性气体环境。
产品特点：
具有耐燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固、工作可靠等优点。
橡胶防爆挠性连接软管长度，可根据用户需要特殊加工。
配套碳钢内丝、外丝接头螺纹标准有: 英制G螺纹、美标NPT螺纹、
公制ISO等。
标注螺纹规格时应注明内、外丝螺纹。
产品符合GB3836-2000,IEC60079标准要求。
