碳钢不锈钢高压锻制管件 2000磅 3000磅 6000磅

型号：	-
品牌：	OEM
原产地：	中国
类别：	建筑、装饰 / 建筑用管和附件 / 管件
标签︰	高压管件 , 3000磅弯头 , 6000磅三通
单价：	-
最少订量：	-

发送查询

产品描述

B16.11,MSS, BS3799, GBT

材质：A105,F304, F316

Standard	Pressure rating/t	End connection	Type	Size	Materials
ASME B16.3	CL150,CL300	TH	Elbow(90&45deg),tee,cross, reducing 90deg elbow,reducing cross,reducing tee,45deg Y-branches(straight size),street elbow(90&45deg),street tee,coulping(straight&reducing),caps,180deg return bends(closed,medium,open)	1/8"-6"	Stainless steel: ASTM A403 WP304/304L/316/316L; ASTM A182 F304/F304/F316/F316L; Stainless steel: CF8/CF8M/CF3/CF3M; Carbon steel: ASTM A234 WPB; A105; WCB;
ASME B16.9	SCH 5S/10S/10/20/30/40S/STD/40/60/80S/XS/80/100/120/140/160/XXS	BW	LR Elbows(90&45deg), LR/SR Returns(180deg), SR Elbows(90deg), 3D Elbow(90&45deg),Straight Tees&Crosses, Reducing Outlet Tees&Reducing Outlet Crosses, Lap Joint Stub Ends(Long Pattern/Short Pattern), Caps(E/E1), Reducers(Con/Ecc), LR Reducing Elbows(90deg)	1/2"-48"
ASME B16.11	CL2000/SCH80, CL3000/SCH160, CL6000/XXS	TH	Elbow(45&90deg),Tees,Crosses,Steet elbows,Coulping,Halfcoulping,Cap, Plug(Square/Hex/Round),Bushing(Hex&Flush)	1/8"-4"
ASME B16.11	CL3000/SCH80, CL6000/SCH160, CL9000/XXS	SW	Elbow(45&90deg),Tees,Crosses, Coulping,Half coulping,Cap	1/8"-4"
MSS SP43	SCH5S,SCH10S,SCH40S	BW	LR elbows(90&45deg),straight and reduceing tees,lap joint stub end,cap,LR 180deg returns,Con&Ecc reducers	1/2"-24"
MSS SP75	SCH 5S/10S/10/20/30/40S/STD/40/60/80S/XS/80/100/120/140/160/XXS	BW	LR elbow,3R elbow,straight and reducing tee,cap,Con&ecc reducers	16"-60"
MSS SP79	CL3000	SW	reducer inserts(type1,type2)	3/8"-4"
MSS SP79	CL6000	SW	reducer inserts(type1,type2)	3/8"-3"

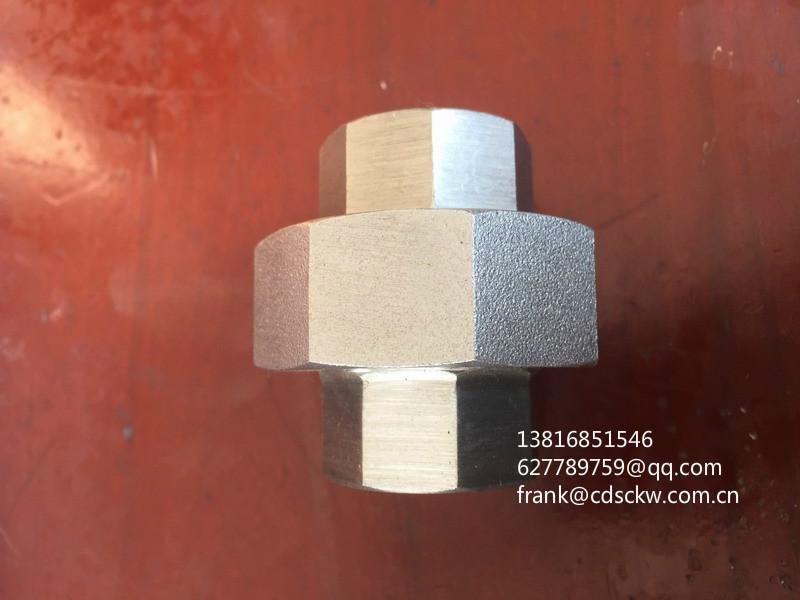

MSS SP83	CL3000	SW/TH	pipe unions	1/8"-3"
MSS SP95	SCH40,SCH80, SCH160,XXS	PBE/TBE/BBE	Swaged nipple(Con/Ecc)	1/4"1/8"-12"10"
MSS SP95	SCH40,SCH80, SCH160,XXS	TH	Bull plugs	1/8"-12"
MSS SP97	CL3000,CL6000	SW/TH	outlet(SW/TH)	1/8"-4"
MSS SP97	STD/XS/SCH160	BW	outlet(BW,Reducing/Full)	1/8"-24"
MSS SP114	CL150,CL1000	SW/TH	Elbows(90&45deg), Tees, Crosses, Street Elbows(90deg), Couplings (Straight and Reducing), Caps, Head Plugs(Square&Hex), Hex Bushings,Unions;Threaded Locknuts	1/8"-4"
ASTM A733	STD,XS,SCH160,XXS	TH	Close/Short/Long type pipe nipple	1/8"-12"
DIN2605	2mm~25mm	BW	Elbow 2D/3D/5D,45/90/180deg	1/2"~72"
DIN2615			Tee straight/reducing
DIN2616			Reducre Concentric/Eccentric
DIN2617			Cap
JIS B2311	SGP	BW	Elbow LR/SR,45/90/180deg; Tee straight/reducing; Reducer concentric/eccentric;Cap,Cross	1/2”-72”
GOST 17375,17376,17377,17378	2mm~25mm	BW	Elbow LR/SR,45/90/180deg; Tee straight/reducing; Reducer concentric/eccentric;Cap,Cross	1/2”~72”
ISO4144	150Lbs	TH	90deg elbow equal&reducing,45deg elbow, male&femal street elbow 90deg, tees equal&reducing,cross,half socket, socket equal&reducing, reducing bushes, hex nipple equal&reducing, caps, square plugs, hex plugs, unions(MM/FF/MF)	1/8"-4"
EN10241	PN10	TH	90deg Elbow equal,tee equal,cross equal,45deg equal elbow,elbow 90deg male and female equal,reducing tee, socket, half socket, reducing socket, equal hex nipple,hex bushing,square plug,hex plug,socket union with flat seat, socket with taper seat,hex backnut, Cap,single longscrew, double longscrew, pipe nipple,running nipple,close nipple,barrel nipple,Bend and spring	1/8"-4"
EN10253-1	2.0~12.7mm	BW	45deg elbow,90deg elbow,return bend,con reducer,ecc reducer,equal tee,reducing tee,dished end,cap,2D/3D/5D elbow	DN15~DN400
