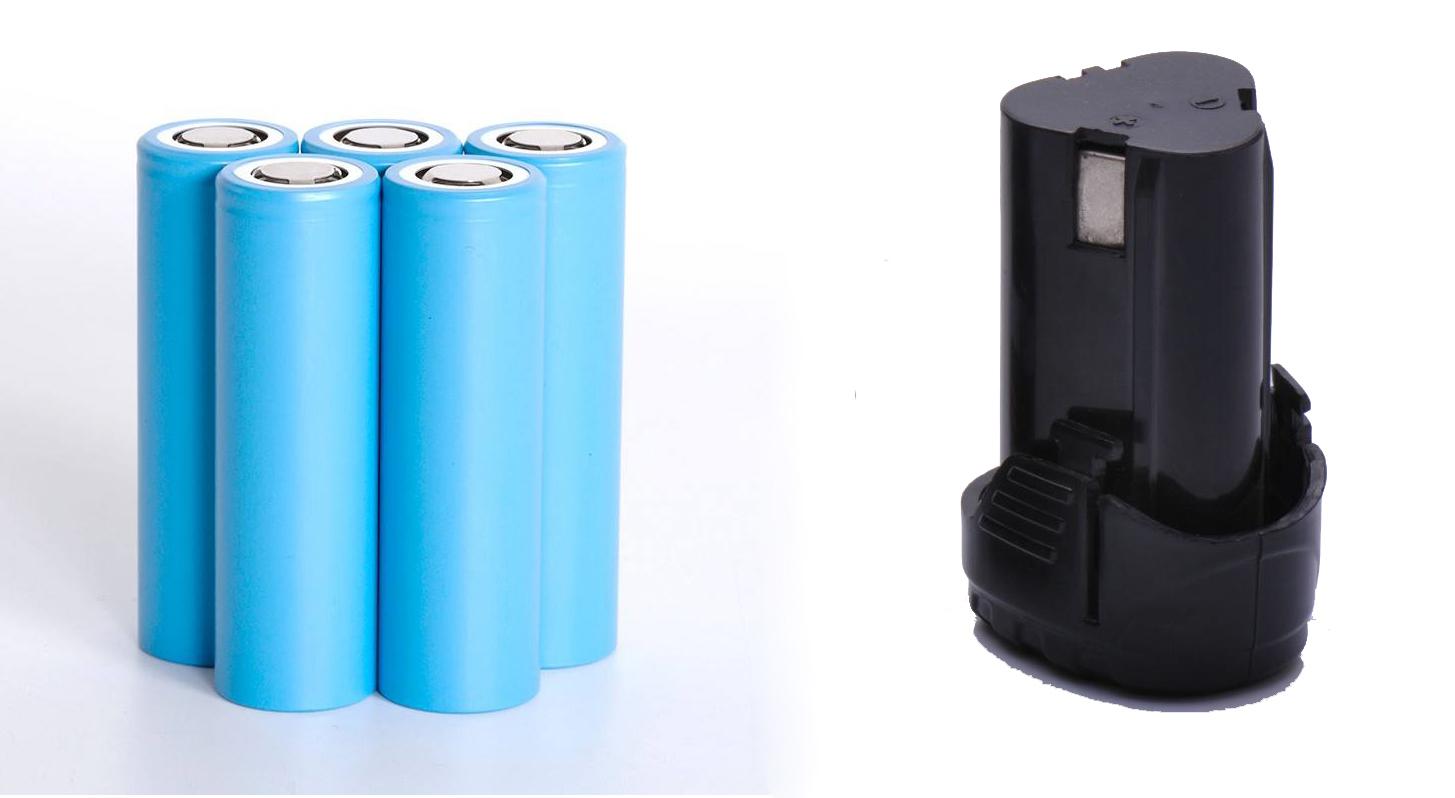

18650 锂电池 2000MAH 10C 3.7V 动力电池 - Li-ion battery - COLUMN 或代工 (中国江苏省生产商) - 电池、蓄电池、充电器

18650 锂电池 2000MAH 10C 3.7V 动力电

序号	项目	规格
1	Nominal Capacity	2000mAh @ 0.2C Discharge
2	Actual Capacity	2050mAh @ 0.2C Discharge
3	Nominal voltage	3.7V
4	Standard Charge	CC/CV,0.2C5A, 4.20V
5	Standard Discharge	CC,0.2C5A, 2.75V
6	End-of-charge Voltage	4.20V±0.05V
7	End-of-charge Current	0.01C5A (At CV mode)
8	End-of-discharge Voltage	2.75V
9	Charging Time	8.0hours(standard charge)
10	Quick Charge Current	2000mA (0.5C5 Rate)
11	Max Discharge Current	20000mA (10C 5 Rate)
12	Initial Impedance	Max:40mΩ
13	Weight	Approx:45.0±2g
14	Operating temperature	Charging: 0ºC~45ºC Discharging:-20ºC~60ºC
15	Storage temperature	-5ºC~35ºC
16	Storage Humidity	≤75% RH
17	Appearance	Without scratch, distortion, contamination and leakage
18	Standard environmental condition	Temperature : 23±5ºC Humidity : 45-75%RH Atmospheric Pressure : 86-106 Kpa
