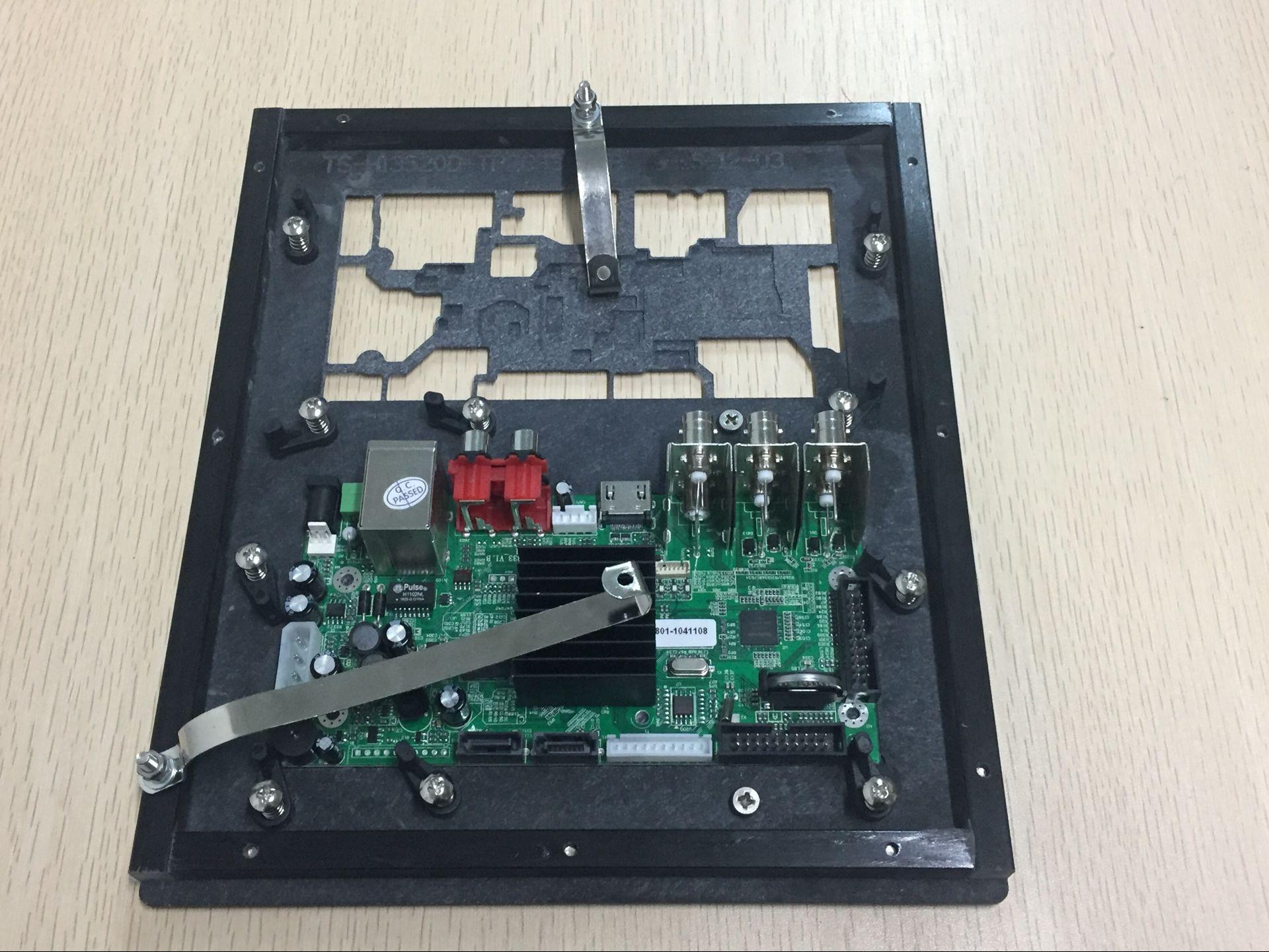

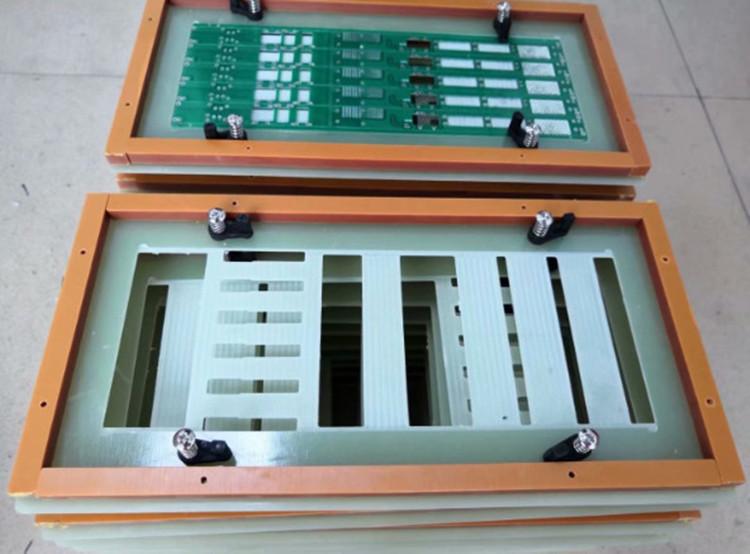

鸿成达厂家定制过炉治具 波峰焊治具 PCBA过炉载具 工装夹具
    波峰焊治具特点：采用防静电合成石、铝合金、防静电玻纤板、电木、压扣,不锈钢螺丝,不锈钢弹簧,玻纤档锡条,铝合金档锡条制作。在高温下性能优异出色的尺寸稳定性、防静电性能好、使用寿命长。
1.可用于不规则外型的PCB.
2.可承载多连板以增加生产率
3.将底端SMT元件覆盖住,使之能通过标准的回焊设备局部焊接防止弯曲；
4.防止PCB在回焊时产生弯曲现象,波峰焊在温度逐渐升高的环境中,仍能继续保持其物理特性的能力,使合成石可在波峰式焊锡过程中,达到高标准的结果并且不会有变形的情况发生.在短时间置于360℃及持续在300℃的操作温度的苛刻环境中,也不会造成Durostone基层分离。

       Features of wave soldering fixture: anti-static synthetic stone, aluminum alloy, anti-static fiberglass board, bakelite, press buckle, stainless steel screw, stainless steel spring, glass fiber tin bar, aluminum alloy tin bar. Excellent performance at high temperatures Exc- ellent dimensional stability, antistatic performance and long service life.
Main feature:
1. Can be used for irregular appearance PCB
2. Can carry multiple boards to increase productivity
3. Cover the bottom SMT component so that it can be partially welded to prevent bending by standard reflow soldering equipment.
4. Prevent the PCB from bending during reflow. Wave soldering can continue in the environment where the temperature is gradually increased. The ability to maintain its physical properties allows synthetic stones to achieve high standards of results in wave-type soldering without distortion. In harsh environments with a short-term operating temperature of 360 ℃ and continuous operation at 300 ℃ In the middle, it will not cause the separation of the Durostone base.
