型号: | DSY-RZB |
---|---|
品牌: | DSY |
原产地: | 中国 |
类别: | 工业设备 / 橡胶塑胶加工设备 |
标签︰ | 人字板设备 , 排水板设备 , 羊角板设备 |
单价: |
¥1500000
/ 套
|
最少订量: | 1 套 |

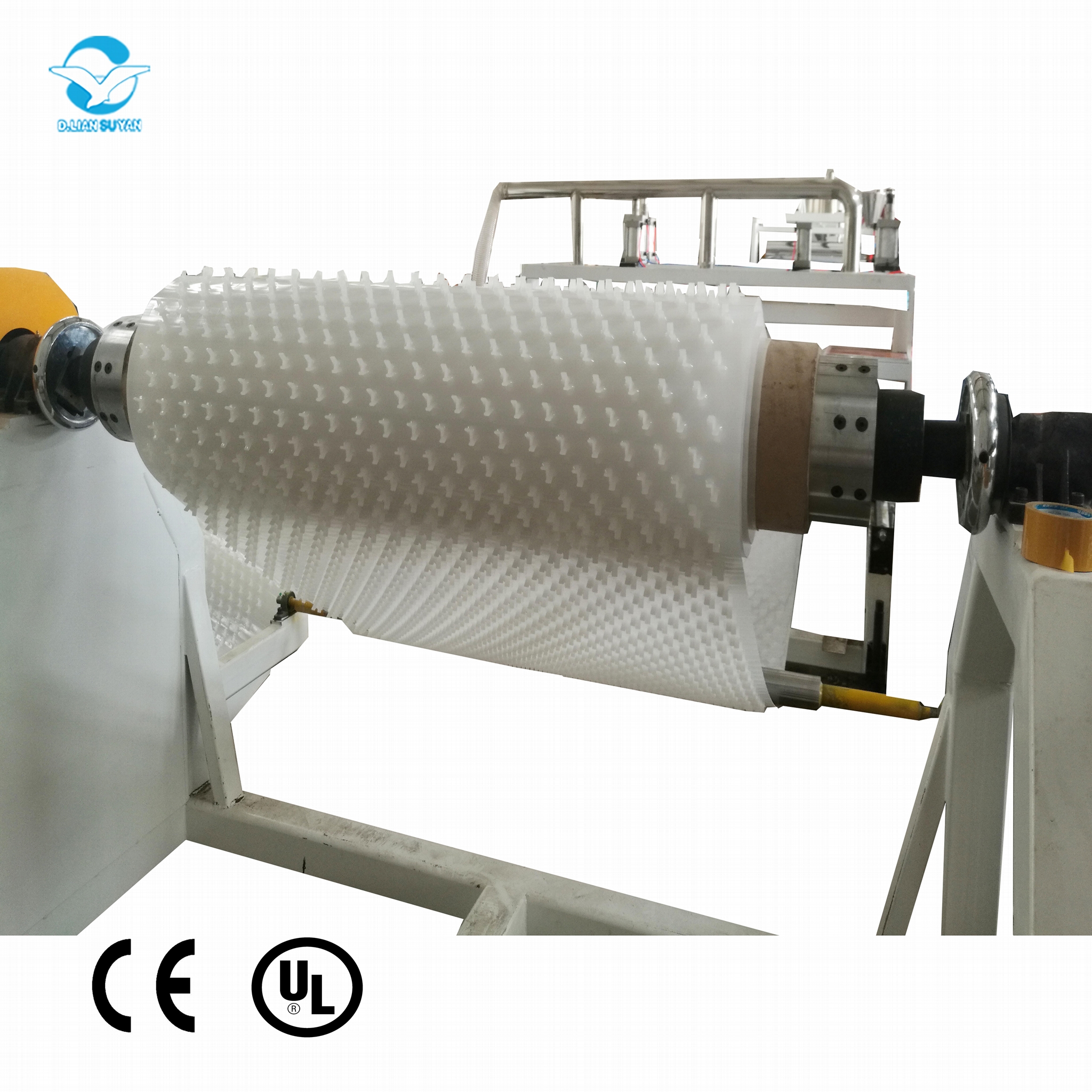

人字板生产线及技术
Anchor sheet production line and technology
人字板结构结合了热塑性塑料的优点(柔韧性、延展性、耐腐蚀)和混凝土的特点(强度高、钢性好),既能满足耐酸结构的最高要求,又能防止混凝土的劣化,从而延长建筑的使用寿命,还能防止泄露和渗透,直接保护环境。特殊的锚固系统使其适用于存在被压区域的建筑,广泛应用于存在渗漏,破损,局部塌陷,腐蚀,脱节等可修复缺陷的管道内衬。
The anchor sheet combines the advantages of thermoplastics (good flexibility, ductility and corrosion resistance) with the characteristics of concrete (high strength and rigidity) , it can not only meet the high requirement of acid-resistance structure, but also prevent the deterioration of concrete, which can prolong the building service life, meanwhile it can prevent leakage and penetration to protect the environment directly. The special anchoring system is suitable for buildings under pressure, and it is widely used for pipe liners with reparable defects, such as penetration, abrasion, partial collapse, corrosion, disconnection, etc.
规格 Specification 技术参数 Technical parameter |
|
制品宽度Width |
1000~2000mm |
制品厚度 Thickness |
13~19mm |
生产能力 Production capacity |
150~200kg/h |
整机容量 Power capacity |
300~400kW |
外形尺寸 Outer dimension |
21000×4500×3500mm |
