SPECIFICATIONS

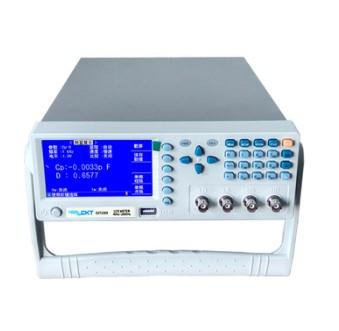

CKT100LA/CKT150LA/CKT100LD/CKT106X  Digital LCR Meter

Parameters

L,C, R, | Z|, D, Q，X，ESR，θ（Deg），θ（Rad）

Display Mode

Direct，Δ%，V/I

Accuracy

0.1% ± 5 dgt

Frequency

CKT100LA: 50Hz,60Hz,100Hz,120Hz,1KHz,10KHz,20KHz,40KHz,50KHz,100KHz

CKT150LA: 100Hz, 1KHz,10KHz,30KHz,40KHz,50KHz,60KHz,100KHz,120KHz,150KHz

CKT100LD: 40Hz~100KHz (38 frequency points)

CKT106X: 40Hz~200KHz (41 frequency points)

Display Range

Z,X,R:0.01mΩ~99.9999MΩ    C:0.00001pF~9.9999F         L:0.00001uH~9999.99H       D:0.00001~9.9999

Q:0.00001~9999.9            q(rad): -3.14159 –3.14159    q(deg): -179.999°-179.999°

Source Resistance

30Ω, 100Ω

Range

Auto, Hold, Manual selection

Comparator

5-bin sorting

Signal Level

0.1V,0.3V,1V

DC Bias Source

None

Trigger Mode

INT, MAN, EXT, BUS

Speed

FAST: 75 times/second, (Customizable faster), MED: 12 times/second, SLOW: 3 times/second

List Test

None

Adjustment

Open / short / shortcut

Files

U disk copy screen, real-time data storage, which can support the FAT16 format, FAT32 file system

Interface

RS232C, USB HOST, HANDLER

GENERAL FEATURES

Power Supply

Voltage: 110V/220V   Frequency: 50Hz - 60Hz

Size and Weight

265mm(W）*100mm（H）*340mm(L）3.5kg

ORDERING INFORMATION

Accessories

Kelvin Test clip; RS232 Communication cable; AC Power Cord

Optional

SMD patch test fixture; SMD patch test clip; Test fixture; Short-circuit slice
