TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005

TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005mm
型号：GTH5-L2-150-BC
品牌：TOYO
原产地：台湾 中国
类别：工业设备 / 其他工业设备
标签︰TOYO滑台模组 , 滑台模组 , ±0.005mm
单价： ¥1888 / 件
最少订量：1 件
发送查询

产品描述

TOYO新一代滑台模组｜重 “芯”定义模组精度±0.005mm

内嵌式螺杆型滑台模组/正品优价

本体宽幅：54mm

位置重复精度：±0.005mm

最大可搬重量 水平使用：30/15/10(Kg)

最大可搬重量 垂直使用：10/5/2.5(Kg)

规格特性: 位置重复精度：±0.005(mm)

螺杆导程：2/6/10/20(mm)

最高速度：100/250/500/1000(mm/s)

最大可搬重量 水平使用：30/15/10(kg)

最大可搬重量 垂直使用：10/5/2.5(kg)

定格推力：854/341/170/85(N)

标准行程：50-800/50间隔(mm)

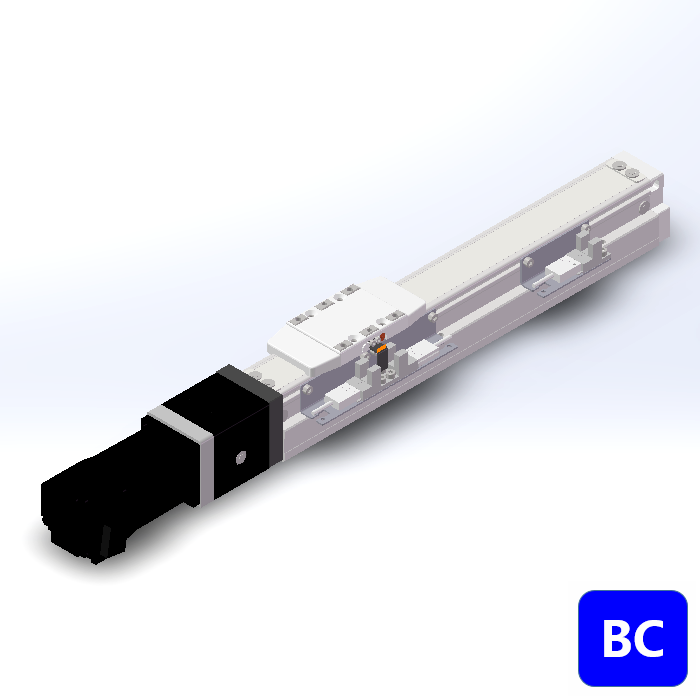

GTH5系列 最高速度：100mm/S 马达直接 配套100W松下伺服马达 使用3个感应器

GTH5-L2-50-BC-P10-C4-0001 GTH5-L2-50-BC-P20-C4-0001 GTH5-L2-50-BC-P40-C4-0001
GTH5-L2-100-BC-P10-C4-0001 GTH5-L2-100-BC-P20-C4-0001 GTH5-L2-100-BC-P40-C4-0001
GTH5-L2-150-BC-P10-C4-0001 GTH5-L2-150-BC-P20-C4-0001 GTH5-L2-150-BC-P40-C4-0001
GTH5-L2-200-BC-P10-C4-0001 GTH5-L2-200-BC-P20-C4-0001 GTH5-L2-200-BC-P40-C4-0001
GTH5-L2-250-BC-P10-C4-0001 GTH5-L2-250-BC-P20-C4-0001 GTH5-L2-250-BC-P40-C4-0001
GTH5-L2-300-BC-P10-C4-0001 GTH5-L2-300-BC-P20-C4-0001 GTH5-L2-300-BC-P40-C4-0001
GTH5-L2-350-BC-P10-C4-0001 GTH5-L2-350-BC-P20-C4-0001 GTH5-L2-350-BC-P40-C4-0001
GTH5-L2-400-BC-P10-C4-0001 GTH5-L2-400-BC-P20-C4-0001 GTH5-L2-400-BC-P40-C4-0001
GTH5-L2-450-BC-P10-C4-0001 GTH5-L2-450-BC-P20-C4-0001 GTH5-L2-450-BC-P40-C4-0001
GTH5-L2-500-BC-P10-C4-0001 GTH5-L2-500-BC-P20-C4-0001 GTH5-L2-500-BC-P40-C4-0001
GTH5-L2-550-BC-P10-C4-0001 GTH5-L2-550-BC-P20-C4-0001 GTH5-L2-550-BC-P40-C4-0001
GTH5-L2-600-BC-P10-C4-0001 GTH5-L2-600-BC-P20-C4-0001 GTH5-L2-600-BC-P40-C4-0001
GTH5-L2-650-BC-P10-C4-0001 GTH5-L2-650-BC-P20-C4-0001 GTH5-L2-650-BC-P40-C4-0001
GTH5-L2-700-BC-P10-C4-0001 GTH5-L2-700-BC-P20-C4-0001 GTH5-L2-700-BC-P40-C4-0001
GTH5-L2-750-BC-P10-C4-0001 GTH5-L2-750-BC-P20-C4-0001 GTH5-L2-750-BC-P40-C4-0001
GTH5-L2-800-BC-P10-C4-0001 GTH5-L2-800-BC-P20-C4-0001

GTH5-L2-800-BC-P40-C4-0001

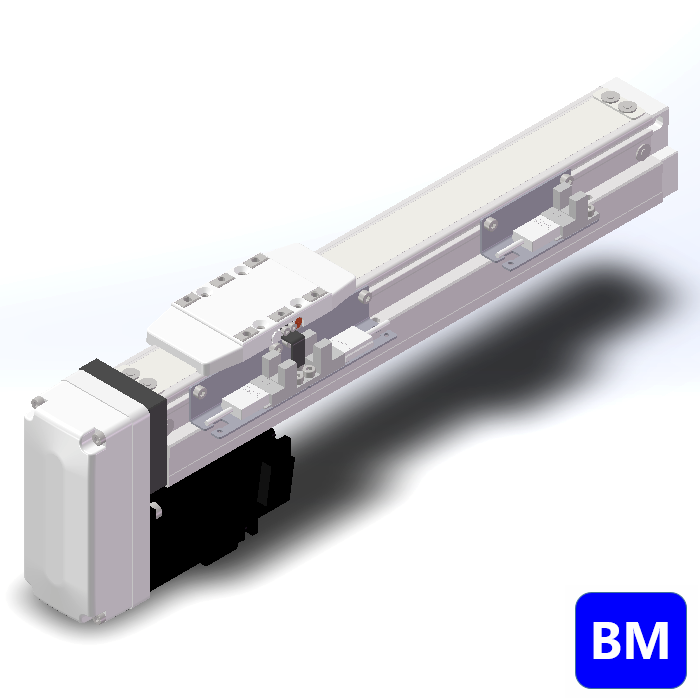

GTH5系列 最高速度：100mm/S 马达下装 配套100W松下伺服马达 使用3个感应器

GTH5-L2-50-BM-P10-C4-0001 GTH5-L2-50-BM-P20-C4-0001 GTH5-L2-50-BM-P40-C4-0001
GTH5-L2-100-BM-P10-C4-0001 GTH5-L2-100-BM-P20-C4-0001 GTH5-L2-100-BM-P40-C4-0001
GTH5-L2-150-BM-P10-C4-0001 GTH5-L2-150-BM-P20-C4-0001 GTH5-L2-150-BM-P40-C4-0001
GTH5-L2-200-BM-P10-C4-0001 GTH5-L2-200-BM-P20-C4-0001 GTH5-L2-200-BM-P40-C4-0001
GTH5-L2-250-BM-P10-C4-0001 GTH5-L2-250-BM-P20-C4-0001 GTH5-L2-250-BM-P40-C4-0001
GTH5-L2-300-BM-P10-C4-0001 GTH5-L2-300-BM-P20-C4-0001 GTH5-L2-300-BM-P40-C4-0001
GTH5-L2-350-BM-P10-C4-0001 GTH5-L2-350-BM-P20-C4-0001 GTH5-L2-350-BM-P40-C4-0001
GTH5-L2-400-BM-P10-C4-0001 GTH5-L2-400-BM-P20-C4-0001 GTH5-L2-400-BM-P40-C4-0001
GTH5-L2-450-BM-P10-C4-0001 GTH5-L2-450-BM-P20-C4-0001 GTH5-L2-450-BM-P40-C4-0001
GTH5-L2-500-BM-P10-C4-0001 GTH5-L2-500-BM-P20-C4-0001 GTH5-L2-500-BM-P40-C4-0001
GTH5-L2-550-BM-P10-C4-0001 GTH5-L2-550-BM-P20-C4-0001 GTH5-L2-550-BM-P40-C4-0001
GTH5-L2-600-BM-P10-C4-0001 GTH5-L2-600-BM-P20-C4-0001 GTH5-L2-600-BM-P40-C4-0001
GTH5-L2-650-BM-P10-C4-0001 GTH5-L2-650-BM-P20-C4-0001 GTH5-L2-650-BM-P40-C4-0001
GTH5-L2-700-BM-P10-C4-0001 GTH5-L2-700-BM-P20-C4-0001 GTH5-L2-700-BM-P40-C4-0001
GTH5-L2-750-BM-P10-C4-0001 GTH5-L2-750-BM-P20-C4-0001 GTH5-L2-750-BM-P40-C4-0001
GTH5-L2-800-BM-P10-C4-0001 GTH5-L2-800-BM-P20-C4-0001 GTH5-L2-800-BM-P40-C4-0001

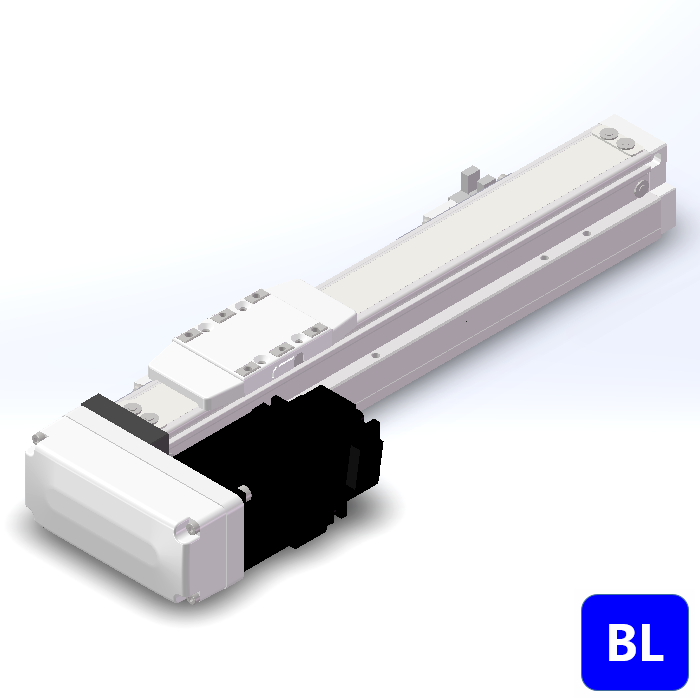

 GTH5系列 最高速度：100mm/S 马达左折 配套100W松下伺服马达 使用3个感应器

GTH5-L2-50-BL-P10-C4-0001 GTH5-L2-50-BL-P20-C4-0001 GTH5-L2-50-BL-P40-C4-0001
GTH5-L2-100-BL-P10-C4-0001 GTH5-L2-100-BL-P20-C4-0001 GTH5-L2-100-BL-P40-C4-0001
GTH5-L2-150-BL-P10-C4-0001 GTH5-L2-150-BL-P20-C4-0001 GTH5-L2-150-BL-P40-C4-0001
GTH5-L2-200-BL-P10-C4-0001 GTH5-L2-200-BL-P20-C4-0001 GTH5-L2-200-BL-P40-C4-0001
GTH5-L2-250-BL-P10-C4-0001 GTH5-L2-250-BL-P20-C4-0001 GTH5-L2-250-BL-P40-C4-0001
GTH5-L2-300-BL-P10-C4-0001 GTH5-L2-300-BL-P20-C4-0001 GTH5-L2-300-BL-P40-C4-0001
GTH5-L2-350-BL-P10-C4-0001 GTH5-L2-350-BL-P20-C4-0001 GTH5-L2-350-BL-P40-C4-0001
GTH5-L2-400-BL-P10-C4-0001 GTH5-L2-400-BL-P20-C4-0001 GTH5-L2-400-BL-P40-C4-0001
GTH5-L2-450-BL-P10-C4-0001 GTH5-L2-450-BL-P20-C4-0001 GTH5-L2-450-BL-P40-C4-0001
GTH5-L2-500-BL-P10-C4-0001 GTH5-L2-500-BL-P20-C4-0001 GTH5-L2-500-BL-P40-C4-0001
GTH5-L2-550-BL-P10-C4-0001 GTH5-L2-550-BL-P20-C4-0001 GTH5-L2-550-BL-P40-C4-0001
GTH5-L2-600-BL-P10-C4-0001 GTH5-L2-600-BL-P20-C4-0001 GTH5-L2-600-BL-P40-C4-0001
GTH5-L2-650-BL-P10-C4-0001 GTH5-L2-650-BL-P20-C4-0001 GTH5-L2-650-BL-P40-C4-0001
GTH5-L2-700-BL-P10-C4-0001 GTH5-L2-700-BL-P20-C4-0001 GTH5-L2-700-BL-P40-C4-0001
GTH5-L2-750-BL-P10-C4-0001 GTH5-L2-750-BL-P20-C4-0001 GTH5-L2-750-BL-P40-C4-0001
GTH5-L2-800-BL-P10-C4-0001 GTH5-L2-800-BL-P20-C4-0001 GTH5-L2-800-BL-P40-C4-0001

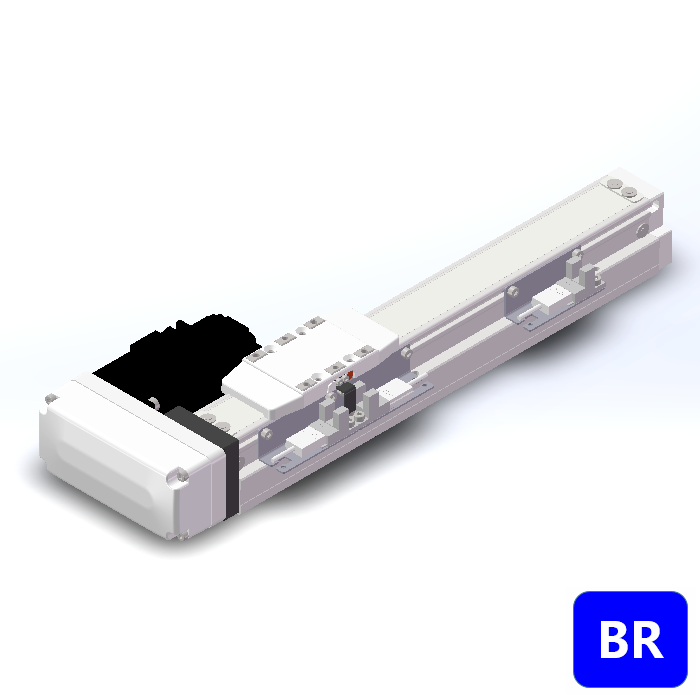

GTH5系列 最高速度：100mm/S 马达右折 配套100W松下伺服马达 使用3个感应器

GTH5-L2-50-BR-P10-C4-0001 GTH5-L2-50-BR-P20-C4-0001 GTH5-L2-50-BR-P40-C4-0001
GTH5-L2-100-BR-P10-C4-0001 GTH5-L2-100-BR-P20-C4-0001 GTH5-L2-100-BR-P40-C4-0001
GTH5-L2-150-BR-P10-C4-0001 GTH5-L2-150-BR-P20-C4-0001 GTH5-L2-150-BR-P40-C4-0001
GTH5-L2-200-BR-P10-C4-0001 GTH5-L2-200-BR-P20-C4-0001 GTH5-L2-200-BR-P40-C4-0001
GTH5-L2-250-BR-P10-C4-0001 GTH5-L2-250-BR-P20-C4-0001 GTH5-L2-250-BR-P40-C4-0001
GTH5-L2-300-BR-P10-C4-0001 GTH5-L2-300-BR-P20-C4-0001 GTH5-L2-300-BR-P40-C4-0001
GTH5-L2-350-BR-P10-C4-0001 GTH5-L2-350-BR-P20-C4-0001 GTH5-L2-350-BR-P40-C4-0001
GTH5-L2-400-BR-P10-C4-0001 GTH5-L2-400-BR-P20-C4-0001 GTH5-L2-400-BR-P40-C4-0001
GTH5-L2-450-BR-P10-C4-0001 GTH5-L2-450-BR-P20-C4-0001 GTH5-L2-450-BR-P40-C4-0001
GTH5-L2-500-BR-P10-C4-0001 GTH5-L2-500-BR-P20-C4-0001 GTH5-L2-500-BR-P40-C4-0001
GTH5-L2-550-BR-P10-C4-0001 GTH5-L2-550-BR-P20-C4-0001 GTH5-L2-550-BR-P40-C4-0001
GTH5-L2-600-BR-P10-C4-0001 GTH5-L2-600-BR-P20-C4-0001 GTH5-L2-600-BR-P40-C4-0001
GTH5-L2-650-BR-P10-C4-0001 GTH5-L2-650-BR-P20-C4-0001 GTH5-L2-650-BR-P40-C4-0001
GTH5-L2-700-BR-P10-C4-0001 GTH5-L2-700-BR-P20-C4-0001 GTH5-L2-700-BR-P40-C4-0001
GTH5-L2-750-BR-P10-C4-0001 GTH5-L2-750-BR-P20-C4-0001 GTH5-L2-750-BR-P40-C4-0001
GTH5-L2-800-BR-P10-C4-0001 GTH5-L2-800-BR-P20-C4-0001 GTH5-L2-800-BR-P40-C4-0001
TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005mm 1TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005mm 2TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005mm 3TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005mm 4TOYO新一代滑台模组,重 “芯”定义模组,精度±0.005mm 5
