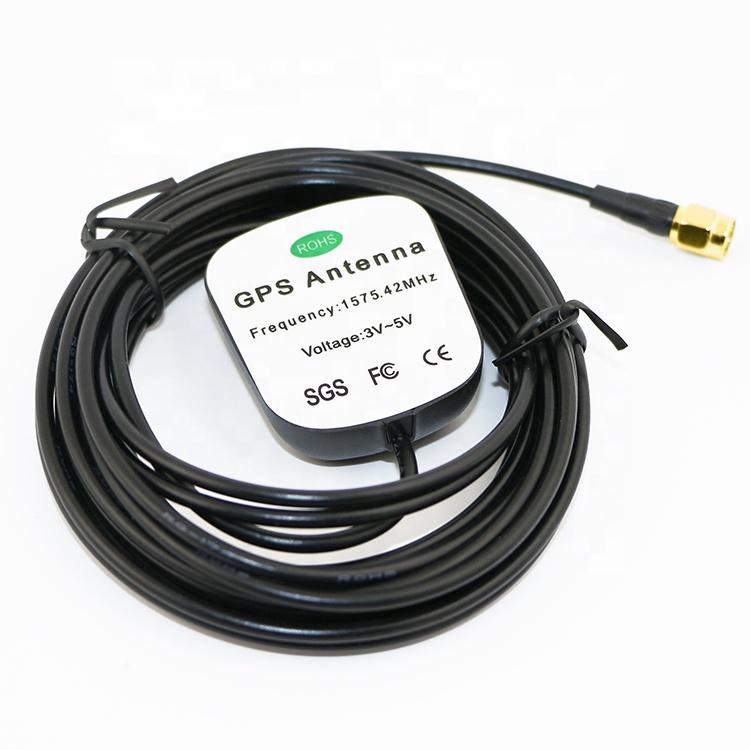

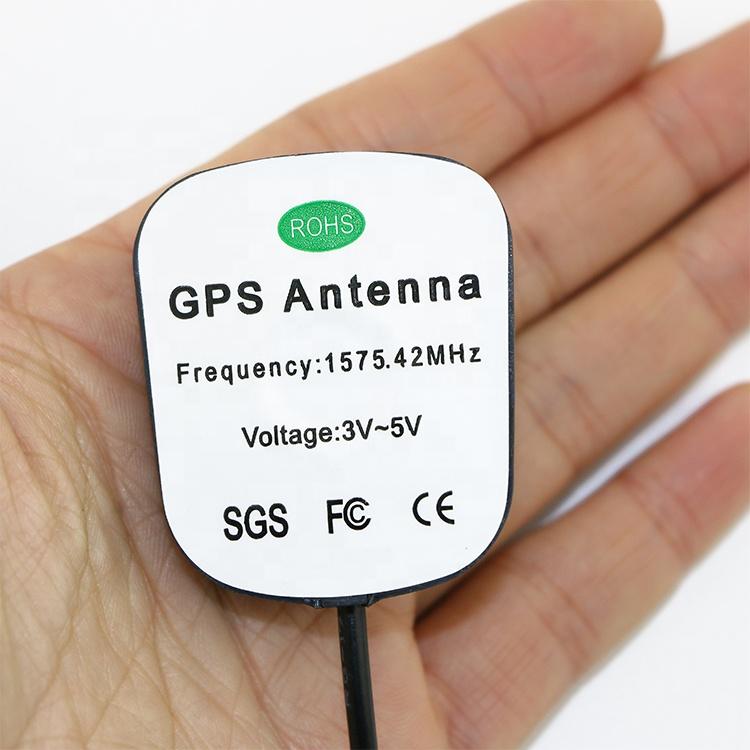

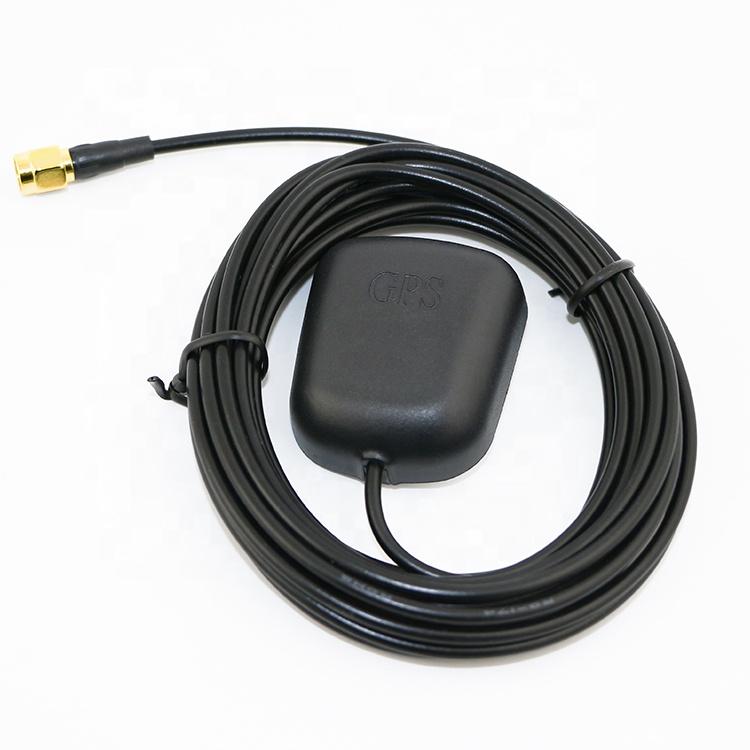

汽车GPS天线，带SMA或Fakra街头，RG174线3米线
| 型号： | GPS-A |
|---|---|
| 品牌： | HURRYUP/禾锐尔 |
| 原产地： | 中国 |
| 类别： | 电子、电力 / 通信和广播电视设备 / GPS系统 |
| 标签︰ | GPS天线 , 汽车GPS天线 , GPS Antenna |
| 单价： |
¥12.9
/ 件
|
| 最少订量： | 1 件 |
产品描述
Hightlights:
1) High Qulity with 1 year warranty;
2) GPS+GLONASS or GPS+BEIDOU Combo Antenna is also available for GNSS Function;
3) Support magnetic or adhesive mounting options;
4) Antenna cable type and length as well as cable connector can be customized.
Applications:
Car Vehicle Satellite Navigation, GPS Tracking, Car GPS Antenna, ect.
Details of the antenna, such as frequency band, cable length, connector type, and appearance can be customized.
Connector Supported: Fakra, SMA, SMB, BNC, TNC, MCX, MMCX, N-Type, ect
|
Model No. |
GPS-A |
|
Cable |
RG174, Length=3M or customized |
|
Cable Gain |
±2dBi |
|
Dielectric |
|
|
Center Frequency |
1575.42±3 MHz |
|
V.S.W.R |
2:1 |
|
Band Width |
±5 MHz |
|
Impendence |
50Ω |
|
Peak Gain |
>3dBic Based on 7×7cm ground plane |
|
Gain Coverage |
>-4dBic at -90°<0<+90°(over 75% Volume) |
|
Polarization |
RHCP |
|
LNA/Filter |
|
|
LNA Gain Without Cable |
28dB Typical |
|
Noise Figure |
2.0dB |
|
Filter Out Band Attenuation |
(f0=1575.42MHz) 7dB Min f0+/-20MHz; 20dB Min f0+/-50MHz; 30dB Min f0+/-100MHz |
|
V.S.W.R |
<2.0 |
|
DC Voltage |
3V to 5V |
|
DC current |
7-10MA |
|
Mechanical |
|
|
Weight |
60 gram |
|
Size |
45X38X15mm |
|
Cable Type |
RG174 Cable, 3 Meters (customized) |
|
Connector |
SMA Male Connector (SMB, MCX, MMCX, ect customized) |
|
Mounting |
Magnetic Mounting (Adhesive Mouting customized) |
|
Housing |
Black |
|
Environmental |
|
|
Working Temp |
-40℃~+105℃ |
|
Vibration |
Sine sweep 1g(0-p)10~50~10Hz each axis |
|
Humidity |
95%~100% |
