With more than 18 years experiences of producing optical fiber connectors,3V TECHNOLOGY is a professional world-service manufacturer.Our products are high-quality & eco-friendly with the best quality materials and the most perfect process manufacturing, all will compliant with Rohs&Reach2.0,andIEC standards, stability and reusable.

We own technology research and development ability, can customize all kinds of non-standard connectors for customers.The following is the SMA905 connector,a special fiber optic connectors,it's inner-assembled ferrule material could be ceramic or metal, it's metal core end face is divided into flat end face and concave end face.and the fiber could be chosen with Step-index fiber or Graded-index fiber or other specified fiber. Fiber is a excellent medium with high light transmittance for light transmission and light guiding, which can be applied in a wide wavelength from near ultraviolet and infrared(190nm~5000nm) .According to user's application, we chould select high OH quartz fiber or low OH quartz fiber or other specificed fiber with cladding layer of fluorine doped quartz material, fluorine doped plastic material or others.Also different coating materials can be selected to protect the optical fiber from moisture and external forces,improved micro bending resistance and high-temperature resistance.

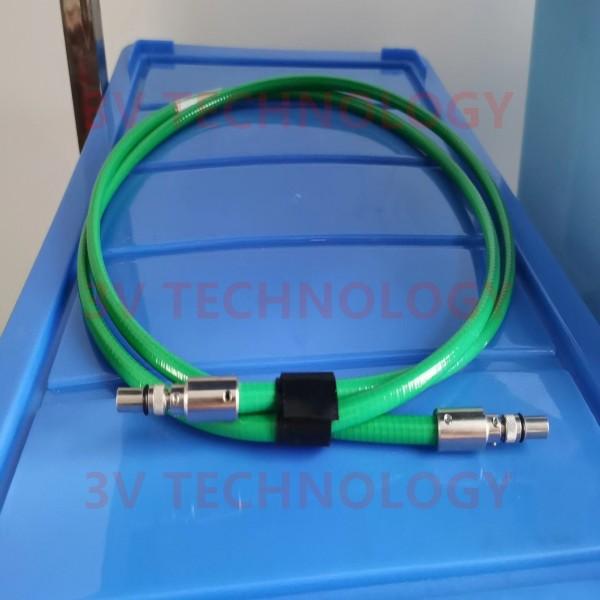

SMA905 optical fiber connector or improved SMA-905 connector with air gap protection at the end, are assembled with large-core diameter ferrule and fiber,when processed by polishing finely at the end face, sometimes,AR/HR coating will be treated to ensure of high damage threshold and high core-concentricity. SC, FC, ST, LC, TA, TB and other connectors can be customized according to client's requirements.
Moreover, its streamlined design makes the product more beautiful, and the scientific and refined end face processing technology can meet the output energy laser transmission of general semiconductor lasers/modules and medium and low power solid lasers. Epoxy-free processing technology can improve the heat dissipation effect and service life，and meet the needs of high power transmission such as laser welding,cutting, etc

The SMA905 connector manufactured by 3V has high precision and good core concentricity. Using our products, you can greatly improve the rate of finished product.

Product Features:

Integrated connector

Corrosion resistant, 304 stainless steel joint, can be used continuously in extreme environment

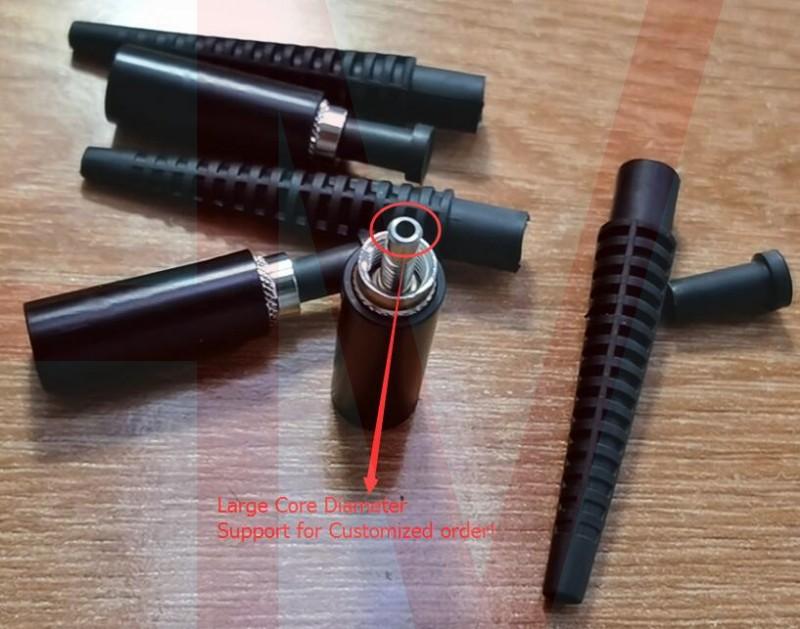

SMA905 / 906 connector, stainless steel ferrule, very suitable for large core diameter fiber

Standard joints or hex nut joints contain stress relief sheaths for Ø Crimping sleeve and joint cap for 3 mm sleeve

High quality large core diameter quartz fiber (UV fiber, glass cladded step-index multimode fiber)

Optional curing with high-temperature resistant adhesive or epoxy free assembling technology,finely grinded endface, with good coupling and high light transmittance. to protect the large core diameter energy optical fibers, we could choose verious coatings such as PVC, TPU, LSZH, Teflon high-temperature resistant protective tube, armored protective tube, metal hose, etc. according to different applications.

Application scope:
Compared with traditional fiber optic connectors, the application range of SMA905 connectors is more wide,It can not only be used in industrial, medical,military and etc, but also in spectral measurement, temperature, environmental detection, jewelry detection, and so on. Popularlly be used for laser surgery, photodynamic therapy, spectral measurement, laser welding, lighting, sensors, special energy transmission with low-loss and high-speed, high-precision transmission.

1. Optical application experiments, research and measurement, etc
2. Medical optical testing equipment
3. Industrial silicon wafers, liquids, spectral detection, etc
4. Food safety testing
5. UV light for skin beauty applications, etc
6. Industrial control, factory automation
7. Medical laser instruments
8. Other high-power energy transmission systems
9. Automobiles and aircraft, as well as military applications
