Why upp pipe not traditional steel pipeline

1. Within -40℃~50℃ temperature range, the burst pressure of UPP pipe which is over 40 standard atmospheric pressure protect the pipeline to perform durably.

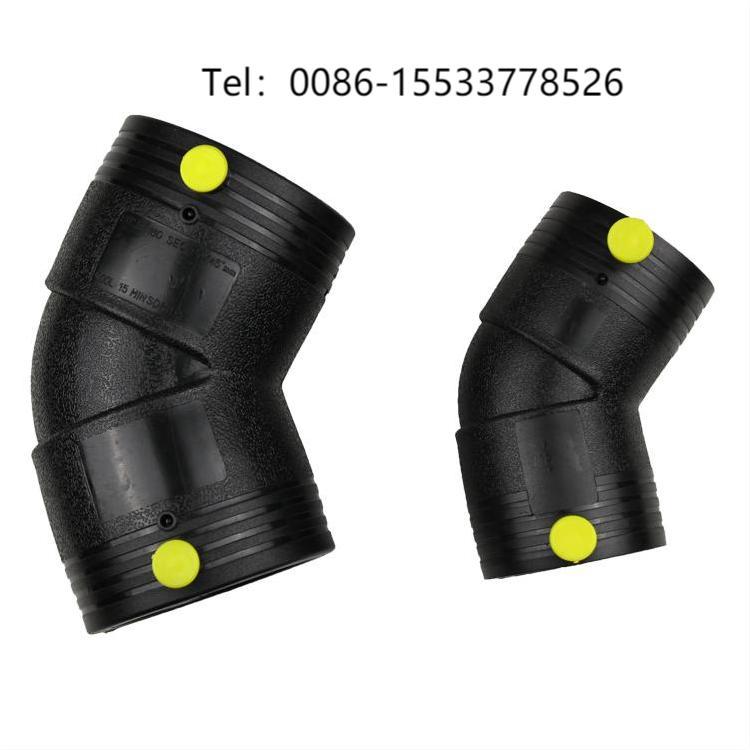

2. The efficient Electro fusion welding techniques connect pipe with its accessories and produce a seamless buried oil-supply pipeline system.

3. The gasstation pipe  can eliminate all the leakage from oil tank to fuel dispenser, thus protecting the environment. It prevents the underground water from permeating into the pipe.

4. UPP PE pipeline with polytene composite material can be used for all kinds of fuel, ethanol mixture and additives. According to EN14125 standard testing and proving, the pipe can apply to hydrocarbon, ethanol fuel mixture and biofuel at 10 standard atmospheres of pressure (bar)

5. Excellent static conductivity demonstrates the UPP pipe with high safety performance.

6. No need concrete furrow. It can significantly reduce the construction cost for fuel station.

7. Easy installation with rich choice for accessories provides the flexibility of pipeline direction.

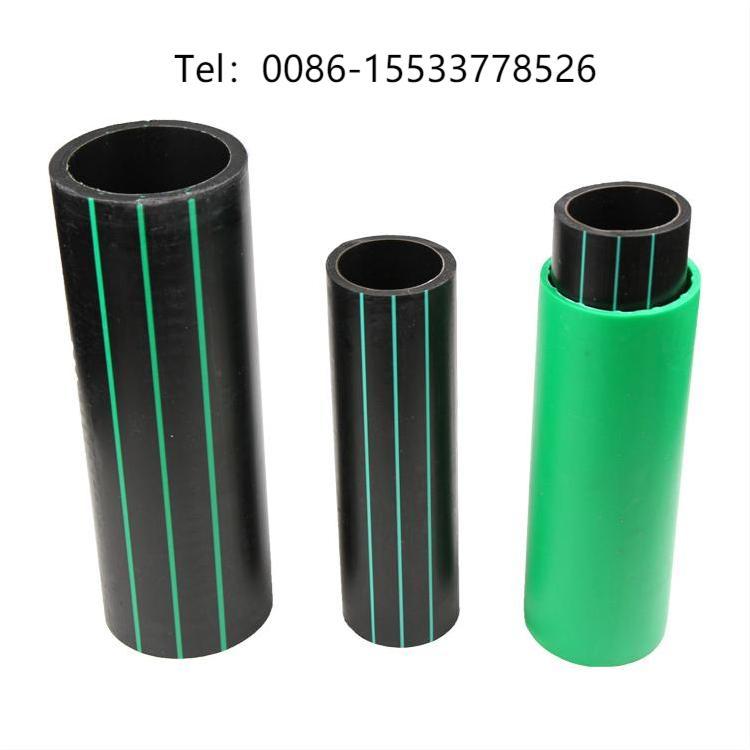

Underground flexible Dual and Secondary Containment Piping Systems is the most advanced and installer friendly double-wall piping system available for use on filling stations. The product range covers all piping needs that may arise on a filling station: Remote fill, pressure and suction, ventilation, vapor recovery or conduits.With zero permeation of hydrocarbons piping keep fuel where it is supposed to be.

1. Impermeable layer is made from pure EVOH without any modification for the best separation impact. This impermeable layer can be used together with all kinds of oil, ethanol mixture and additive, it's ensured to be appropriate for all of types of fuel in the world.

2. The proper five-layer structure makes the layers can be pasted in each other

3. Non-corroding, service life is long, It's able to bear various chemical mediators, no electrochemical corrosion.  4. It's burst pressure exceeds 40 standard atmospheric oressure, ten times of working pressure, so that higher safety can be kept.

5. Working temperature range from -40 to 50℃ , with excellent capability.

6. Lightweight, covenient for transport and installation.

7. Our own R&D team.

8. Meeting the standard of EN14125,ISO9001
