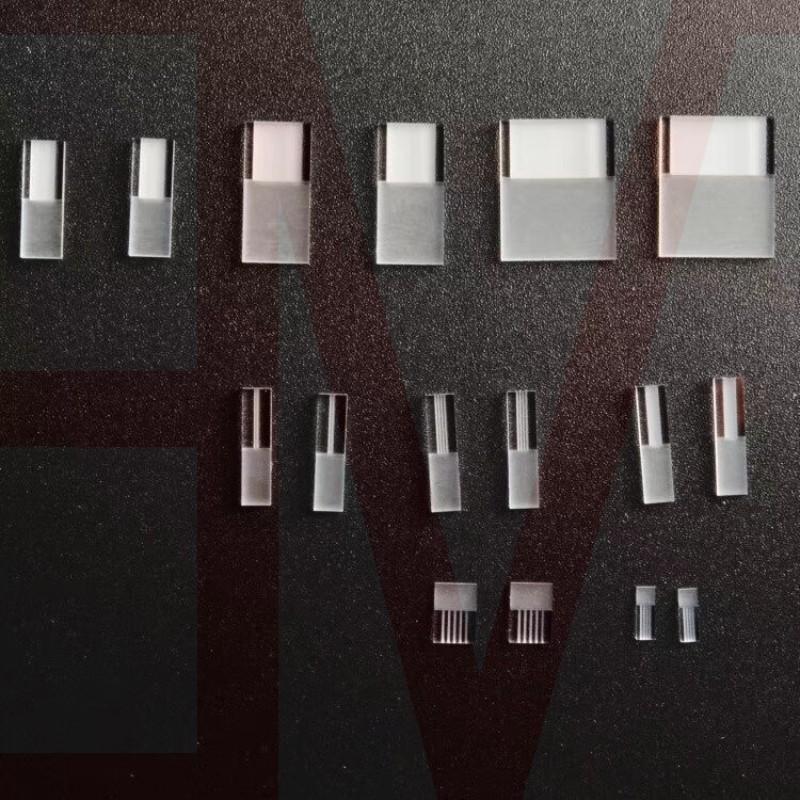

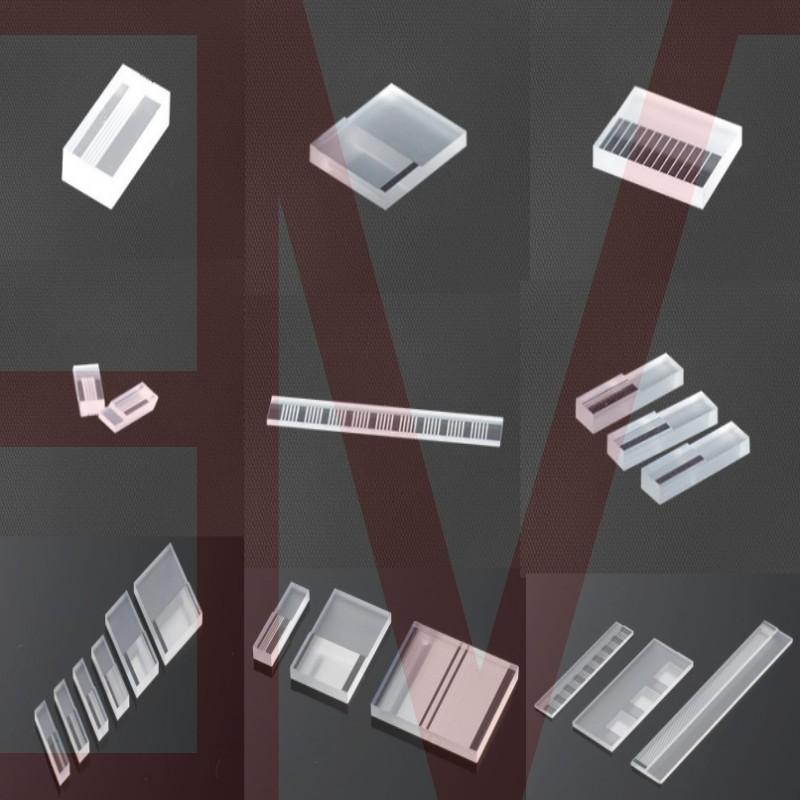

定制微型玻璃V槽

定制微型玻璃V槽
型号:微型
品牌:3V-TECH
原产地:中国
类别:电子、电力 / 通信和广播电视设备 / 其他通讯产品
标签︰V槽 , 光纤V槽 , V型槽
单价: ¥1 / 件
最少订量:100 件

产品描述

With 18 years experiences of processing fiber v-groove chip,3V TECHNOLOGY is a China professional manufacturer,who can design and develop according to clients' special requirements.

Customization of special fiber,special pitch,special channel based on varies material, like fused silica(quartz),borosilicate(Schott BF33),BK-7,silicon etc.,

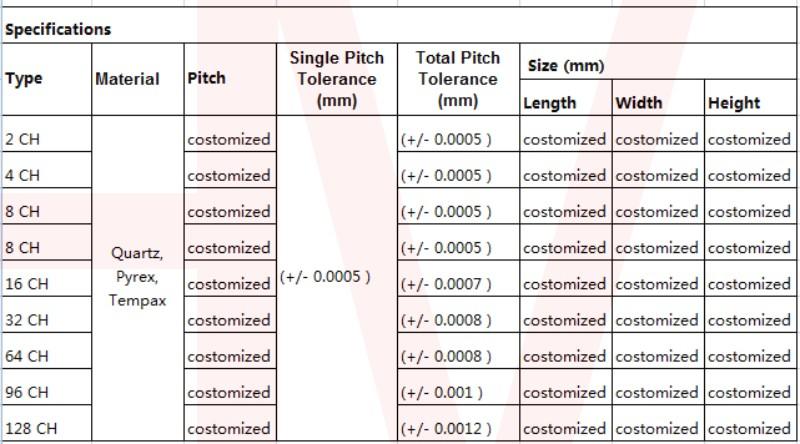

Customized Channels,like 1CH,2CH,4CH,6CH,8CH,12CH,16CH,32CH,48CH or customize
Customized v-groove angle/opening width(depth) for SM/MM/PM fiber specified by clients
Customized v-groove pitch,127um and 250um are popular in the market,or special core-pitch
Customized v-groove size, not only included length/width/thickness,but also,sides chamfer can be machined.



Advantages:

All Japanese DISCO Dicing machines(DAD3350,DAD3430)

First-class clean operation workshop & 0.5 micron channel spacing accuracy

High-precision processing&expereienced quality control

More than 40 sets machines high processing capacity can deal with mass order demand

付款方式︰TT
