自贡自泵水泵铸铁ZIS或ZIR型卧式单级单吸离心泵清水泵循环泵

在线服务：WEIXIN：180（8165）9672 或zipo2019; Q: 219(141)7589

咨询或购买前，请用户告知准确的流量、扬程、管损、介质比重、电机功率等参数。

ZIS、ZIR系列水泵为单级单吸离心泵，水平轴向吸入，产品适用于输送清水或性质类似清水的其它介质。是工厂、矿山、农用排灌工地抽水和城市给排水的常用产品。

ZIS系列产品所输送的介质温度不高于80℃，泵的吸入压力不得大于0.3MPa（即3kg/cm3）；

ZIR系列产品输送介质温度低于150℃，泵的吸入压力低于0.8MPa(即8kg/cm3)。

 ZIS、ZIR系列泵性能范围（按设计点计）：转速 1450r/min, 进口直径  50-200毫米, 扬  程  5~12.5m, 功 率 0.55~110KW

常见的ZIS型清水泵的型号有：

ZIS50-32-125, ZIS50-32-160, ZIS50-32-200, ZIS50-32-250, ZIS65-50-125, ZIS65-50-160, ZIS65-40-200, ZIS65-40-250, ZIS65-40-315, ZIS80-65-125, ZIS80-65-160, ZIS80-50-200, ZIS80-50-250, ZIS80-50-315, ZIS100-80-125, ZIS100-80-160, ZIS100-65-200, ZIS100-65-250, ZIS100-65-315, ZIS125-100-200, ZIS125-100-250,ZIS125-100-315,ZIS125-100-400,ZIS150-125-250, ZIS150-125-315, ZIS150-125-400, ZIS200-200-200, ZIS200-150-250,  ZIS200-150-315, ZIS200-150-400

供货单位：自贡自泵球阀水泵有限公司ZIPO VALVE & PUMP CO., LTD

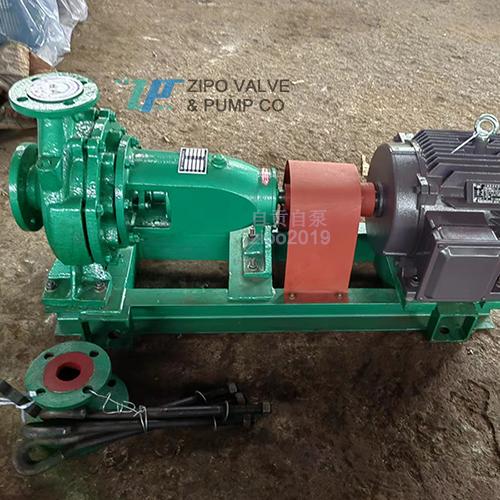

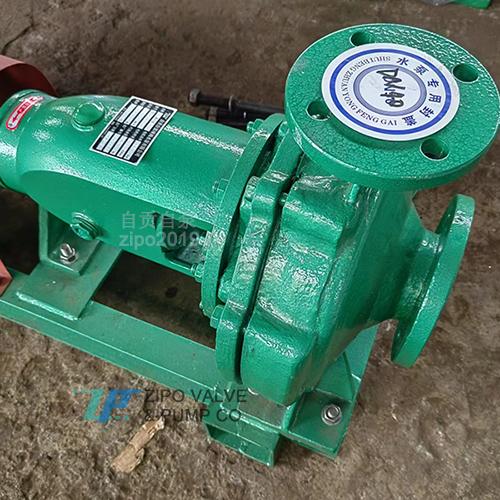

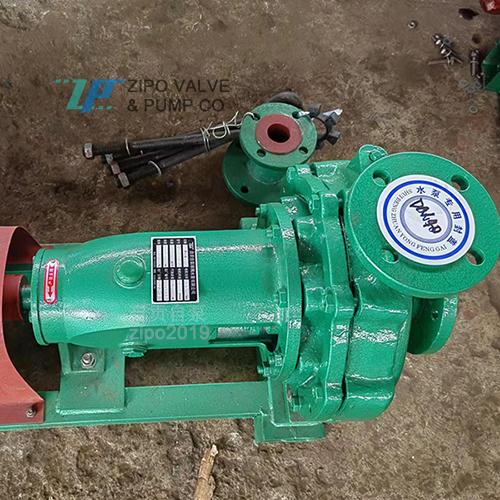

ZIPO ZIS or ZIR horizontal single stage single suction centrifugal pump clean water pump circulating pump.

Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672

Please inform us of the accurate flow, head, pipe loss, medium specific gravity, motor power and other parameters, before consulting or purchasing the product. Thanks!

ZIS and ZIR series pumps are single-stage single suction centrifugal pumps, with horizontal axial suction. All technical indicators meet the national standards. The product has high efficiency, reasonable structure and reliable use. The product is suitable for conveying clear water or other media with similar properties. It is an ideal product for pumping water and urban water supply and drainage in factories, mines, agricultural drainage and irrigation sites.

The medium temperature conveyed by ZIS series products shall not be higher than 80 ℃, and the suction pressure of the pump shall not be higher than 0.3MPa (3kg / cm3);

The transmission medium temperature of ZIR series products is lower than 150 ℃, and the suction pressure of the pump is lower than 0.8MPa (8kg / cm3).

Performance range of ZIS and ZIR series pumps (based on design points): rotating speed 1450r / min, inlet diameter 50-200mm, lift 5-12.5m, power 0.55-110kw

The common models of ZIS clean water pump are:

ZIS50-32-125, ZIS50-32-160, ZIS50-32-200, ZIS50-32-250, ZIS65-50-125, ZIS65-50-160, ZIS65-40-200, ZIS65-40-250, ZIS65-40-315, ZIS80-65-125, ZIS80-65-160, ZIS80-50-200, ZIS80-50-250, ZIS80-50-315, ZIS100-80-125, ZIS100-80-160, ZIS100-65-200, ZIS100-65-250, ZIS100-65-315, ZIS125-100-200, ZIS125-100-250,ZIS125-100-315,ZIS125-100-400,ZIS150-125-250, ZIS150-125-315, ZIS150-125-400, ZIS200-200-200, ZIS200-150-250,  ZIS200-150-315, ZIS200-150-400

Manufacturer: ZIPO VALVE & PUMP CO., LTD
