定制特殊间距玻璃V型槽

定制特殊间距玻璃V型槽
型号:间距定制
品牌:3V-TECH
原产地:中国
类别:电子、电力 / 通信和广播电视设备 / 其他通讯产品
标签︰石英V槽 , 光纤V型槽 , 光纤V槽
单价: ¥1 / 件
最少订量:10 件

产品描述

With 18 years experiences of processing fiber v-groove chip,3V TECHNOLOGY is a China professional manufacturer,who can design and develop according to clients' special requirements.

Customization of special fiber,special pitch,special channel based on varies material, like fused silica(quartz),borosilicate(Schott BF33),BK-7,silicon etc.,

Customized Channels,like 1CH,2CH,4CH,6CH,8CH,12CH,16CH,32CH,48CH or customize

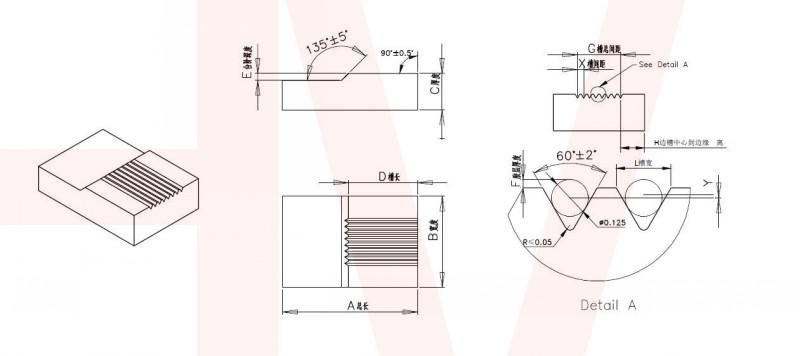

Customized v-groove angle/opening width(depth) for SM/MM/PM fiber specified by clients
Customized v-groove pitch,127um and 250um are popular in the market,or special core-pitch
Customized v-groove size, not only included length/width/thickness,but also,sides chamfer can be machined.



Advantages:

All Japanese DISCO Dicing machines(DAD3350,DAD3430)

First-class clean operation workshop & 0.5 micron channel spacing accuracy

High-precision processing&expereienced quality control

More than 40 sets machines high processing capacity can deal with mass order demand

付款方式︰TT

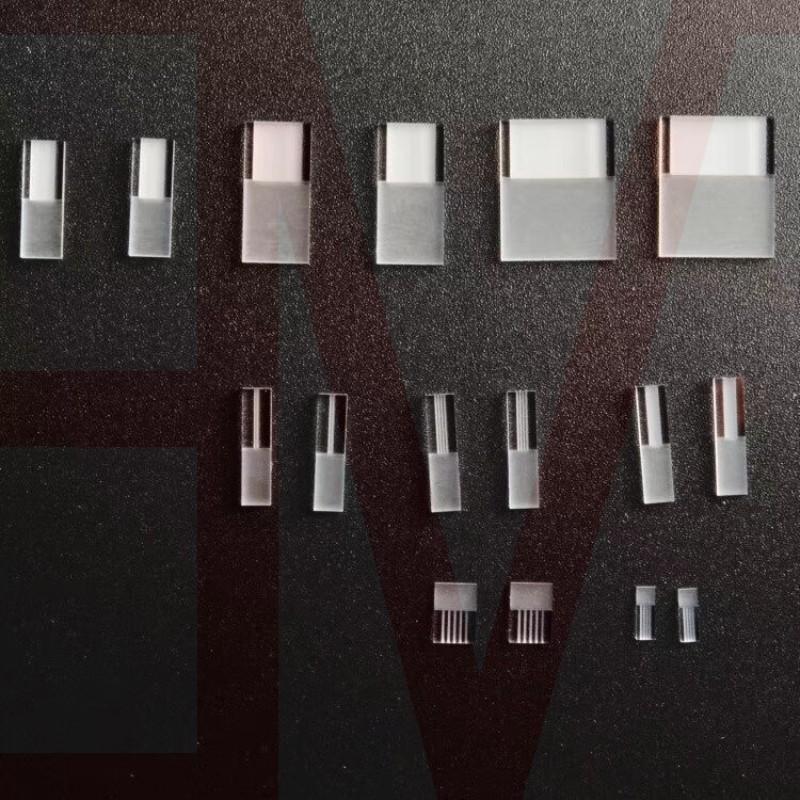

定制特殊间距玻璃V型槽 1定制特殊间距玻璃V型槽 2定制特殊间距玻璃V型槽 3定制特殊间距玻璃V型槽 4定制特殊间距玻璃V型槽 5

会员信息

苏州三村光电科技有限公司
国家/地区︰江苏省苏州市
经营性质︰生产商
联系电话︰18913093537
联系人︰孙向伟 (经理)
最后上线︰2024/12/23
