型号: | 定制 |
---|---|
品牌: | 3V-TECH |
原产地: | 中国 |
类别: | 电子、电力 / 通信和广播电视设备 / 其他通讯产品 |
标签︰ | 光纤准直器 , 准直器定制 , 定制准直器 |
单价: |
¥1
/ 件
|
最少订量: | 10 件 |

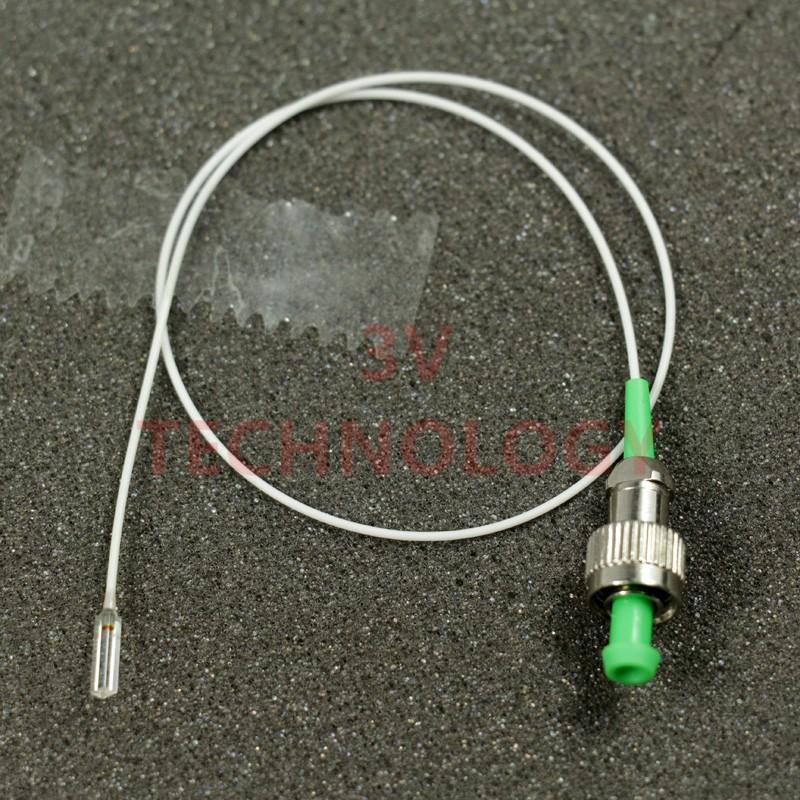

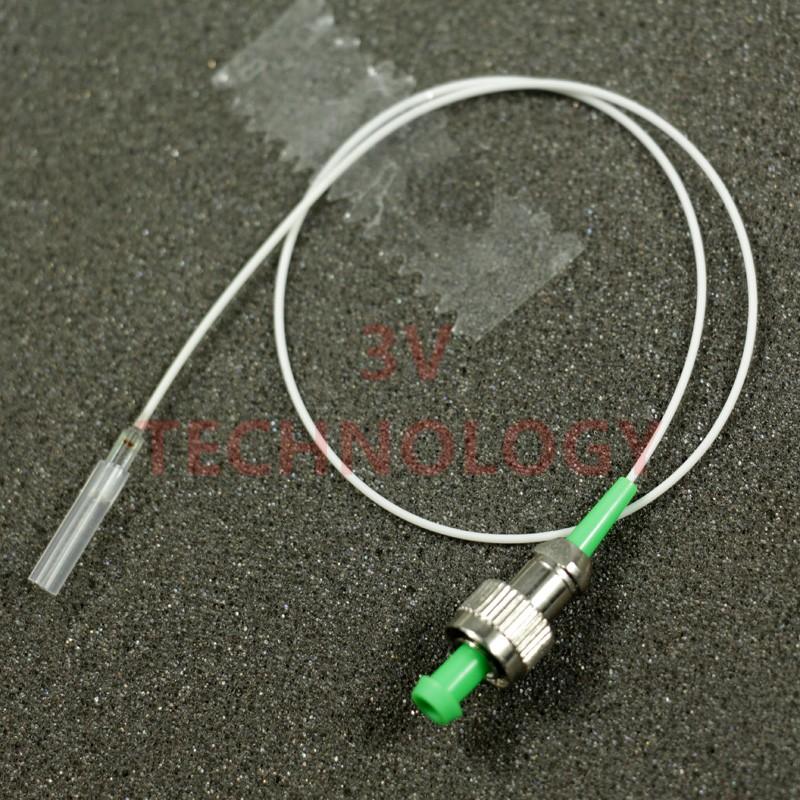

3V TECHNOLOGY is a professional manufacturer with 18years experiences in producing fiber collimator,and could design and develop according to clients' special requirements.Even more,with special SM/MM fiber to produce single-core,duoble-core and multi-core colliamtors;Working wavelength,working distance and working optical power can be specified
Function/Application:
It collimates beam from fiber tip, or couplers a collimated beam to fiber.
Widely used in optical communication,sensing,lasing,medical industries.
Typical Products like:optical inline isolator,CWDM/DWDM Device,optical fiber circulator,optical switches,hybird optics
Customization Optional:
1,)1300nm/1500nm working wavelength or customize(AR coating)
2,)2-5mm working distance or customize
3,)C-lens/G-lens or customize endcaps
4,)500mW optical power or customize
5,)SMF-28e fiber or other SM,MM,PM fiber can choose
6,)Glass ferrule/ceramic ferrule can choose
7,)Glass sleeve or metal sleeve can choose for tubing
8,)Fiber length will be sepcified by customers
9,)Bare fiber or 900um tube jacket fiber can choose
10,)Connector types customized, like LC,FC(UPC or APC),SMA or D80(SUS ferrule)
Our products(included materials) are campliant with Telcordia and Rohs requirements.
付款方式︰ | TT |
---|---|
苏州三村光电科技有限公司 | |
---|---|
国家/地区︰ | 江苏省苏州市 |
经营性质︰ | 生产商 |
联系电话︰ | 18913093537 |
联系人︰ | 孙向伟 (经理) |
最后上线︰ | 2024/08/19 |
