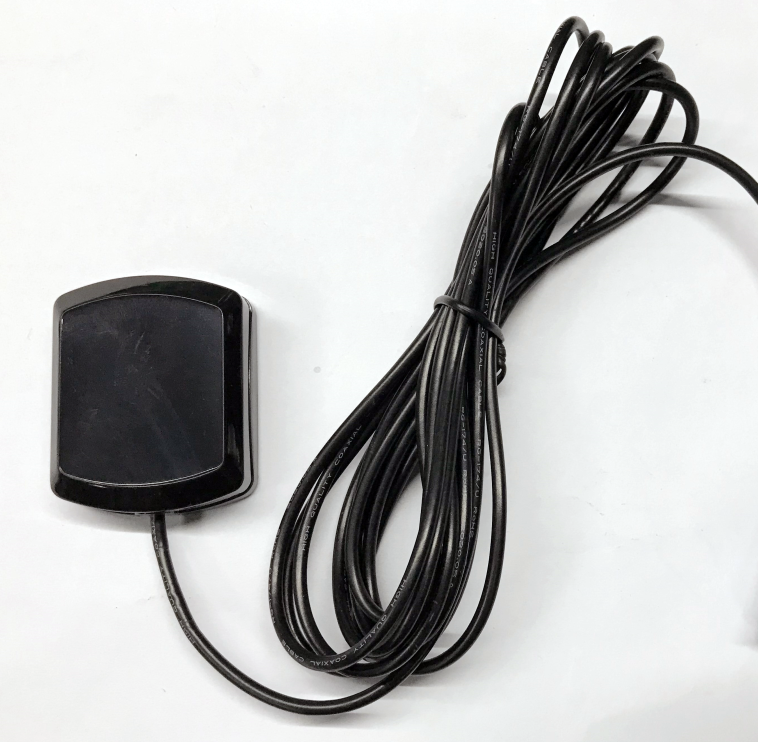

Part Number: GPSGNBD001-FAKRA

Dielectric Antenna Specification

Size

25×25×4mm

Frequency Range

1559-1610MHz

BEIDOU:1561MHz, GPS:1575.42MHz, GLONASS:1602MHz

V.S.W.R

＜2.0

Attenuation

＞25dB

Impedance

50 ohm

Peak Gain

＞3dBic, Based on 7×7cm ground plane

Gain Coverage

＞-4dBic at –90°＜0＜+90°(over 75% Volume)

Polarization

Right-handed Circular(RHCP)

LNA specifications

LNA Gain

(Without cable)

28dB Typical

Noise Figure

1.8dB

V.S.W.R

＜2.0

DC Voltage

2.7V-5.0V±0.5V

DC current

＜25mA   Max(5V DC)

Mechanical Specifications

Weight

＜200g

Size

48.5x38.5x15.5mm

Cable

3m RG174 cable

Connector

FAKRA female straight(code C)

Other Cable

RG316, LMR100 or others

Other Cable Length

50cm, 100cm, 200cm, 4m, 5m or others

Other Connector

SMB, FME, SMA, MCX, MMCX, BNC, TNC or others

Mounting

Magnetic or Adhesive

Housing

Black ABS

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

Waterproof

IP67
