Power supply parameters:
Input voltage: 110/220V
Output voltage: 0~110VDC
Output current: 0~18A
Power: 2000W
Working frequency: 47-63Hz
Efficiency: 88%
Size: 280*180*65mm
Control port: CN3
Description:
Professional high-power switching power supply, which can be widely used in industrial automation, personal CNC stepping/servo system DIY/motor
(For example: if the load device is a motor, the positive pole of the power supply output needs to be connected to a diode module to prevent the motor from being reversed and impacting the switching power supply)
CCTV equipment and LED lighting equipment. Powerful functions (for example, PWM control) and professional design (for example, double overlap of fan cooling) ensure high reliability, high efficiency and power. Low cost, wide use, and easier to accept.
Features:
High efficiency, high reliability, low cost.
Regulated voltage and high power, can accommodate more equipment.
Support 0-110V adjustable output voltage

PWM control and adjustment to ensure stable and accurate output voltage.

Built-in dual fan forced air cooling.

Built-in EMI filter.

100% full load aging test.

Overcurrent, overvoltage, short circuit and thermal protection.

Low output ripple and crying.

Control:

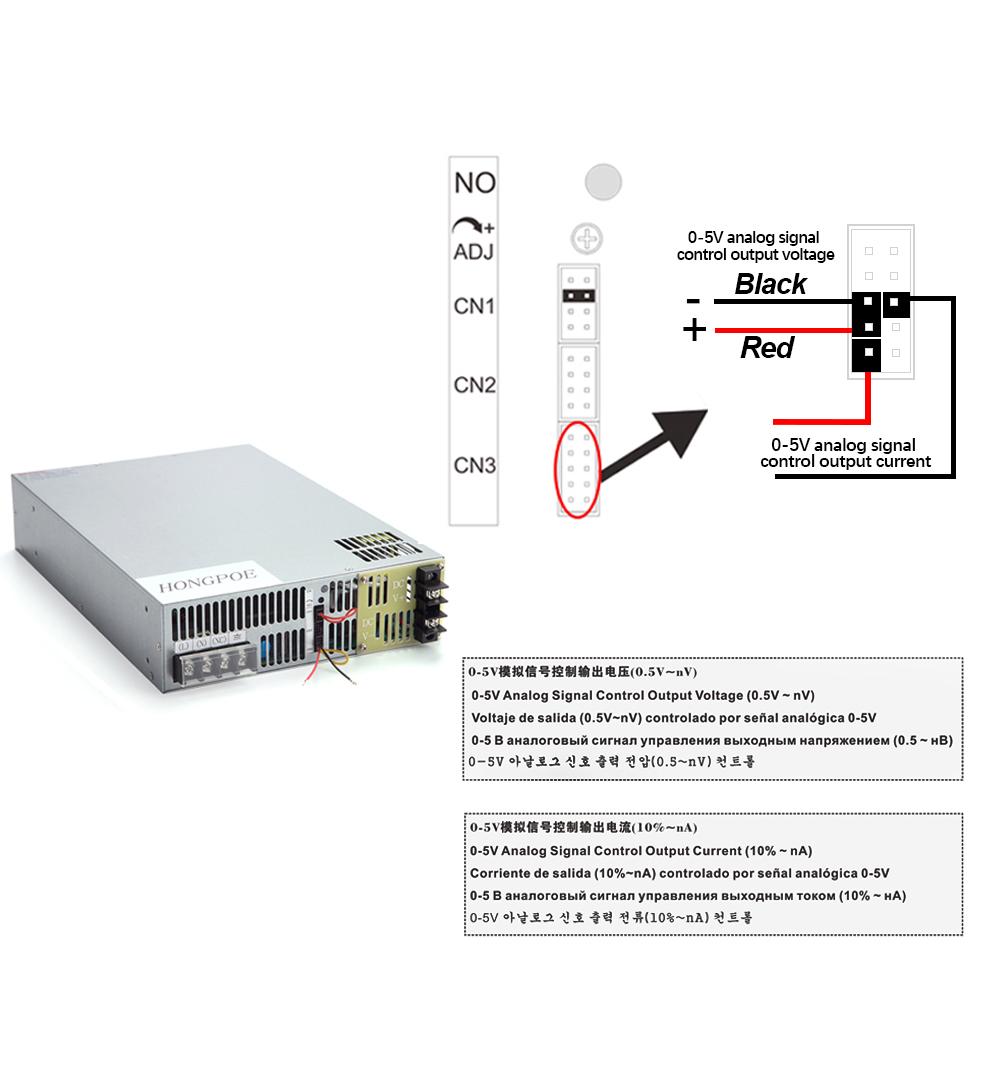

Support 0-5V (0-10V) analog signal to control output voltage (linear increase)

Support 0-5V (0-10V) analog signal to control output current (10%~100%)

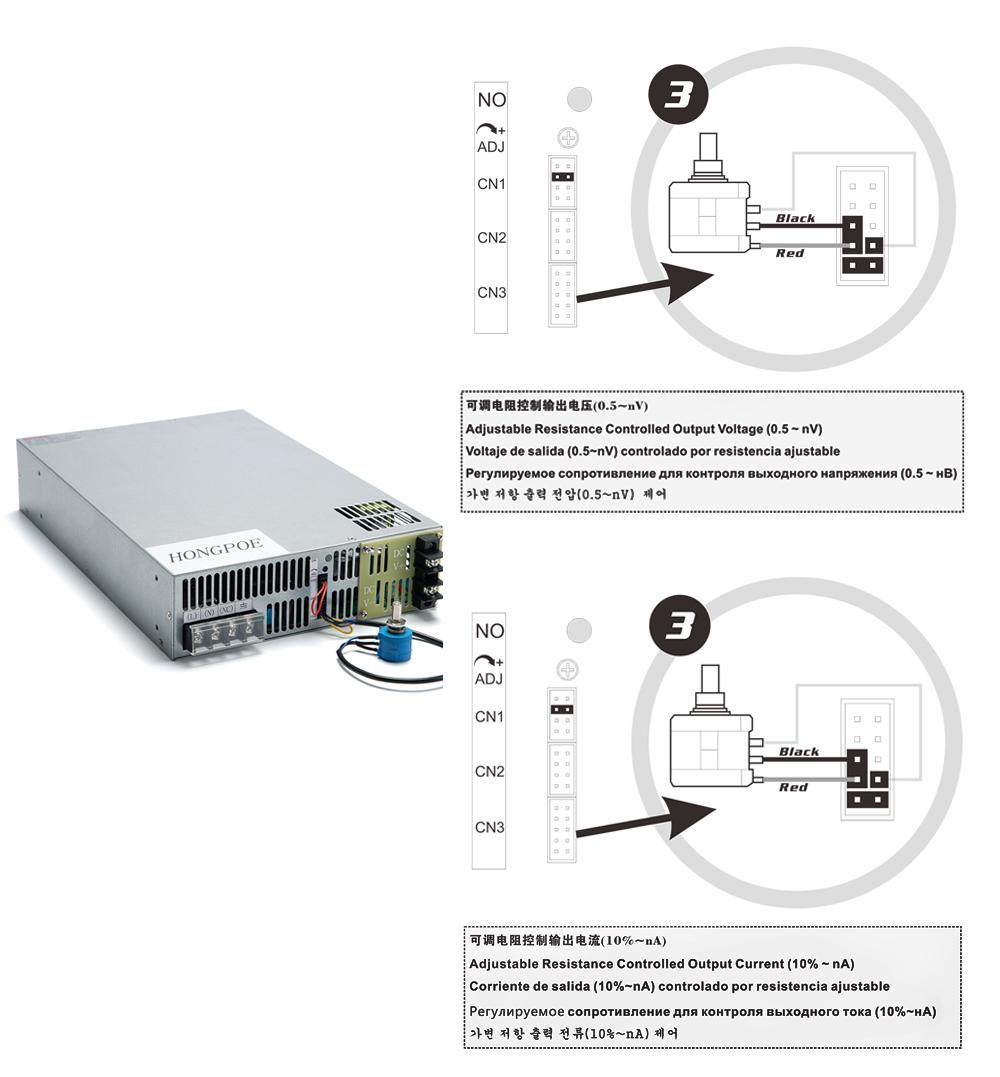

Support adjustable resistor to control output voltage (linear increase)

Support adjustable resistor to control output current (10%~100%)

Support ON/OFF remote switch

Support N+1 function
