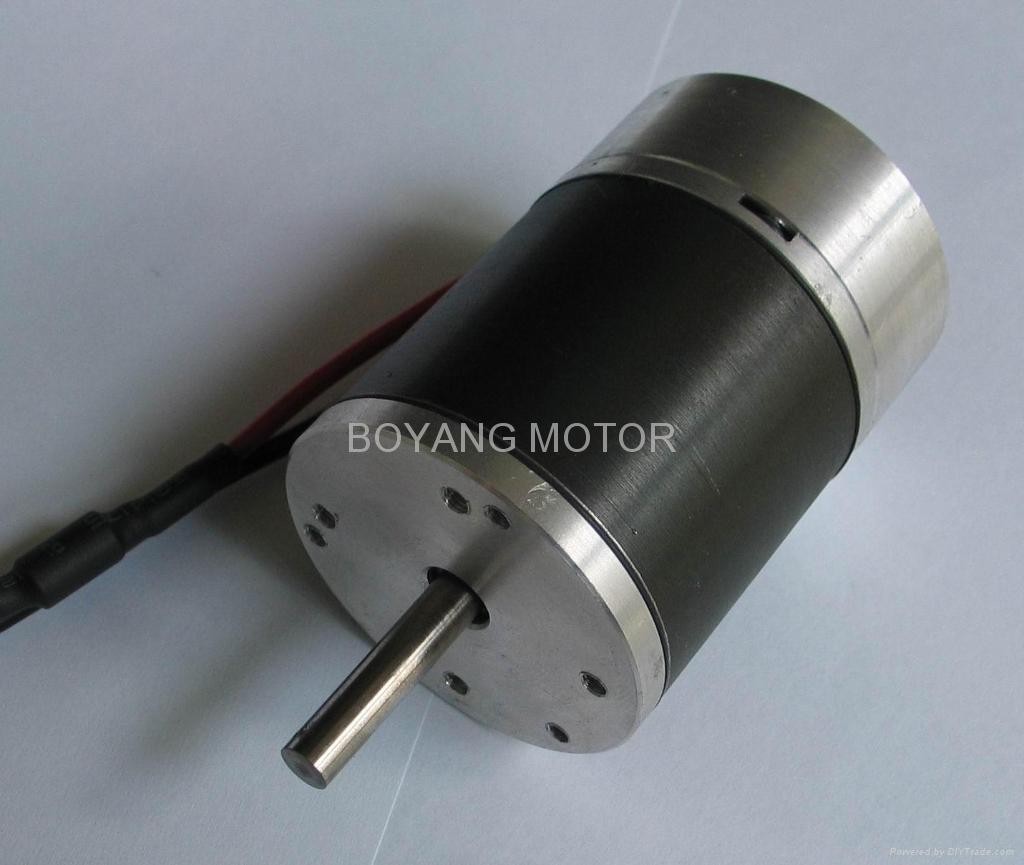

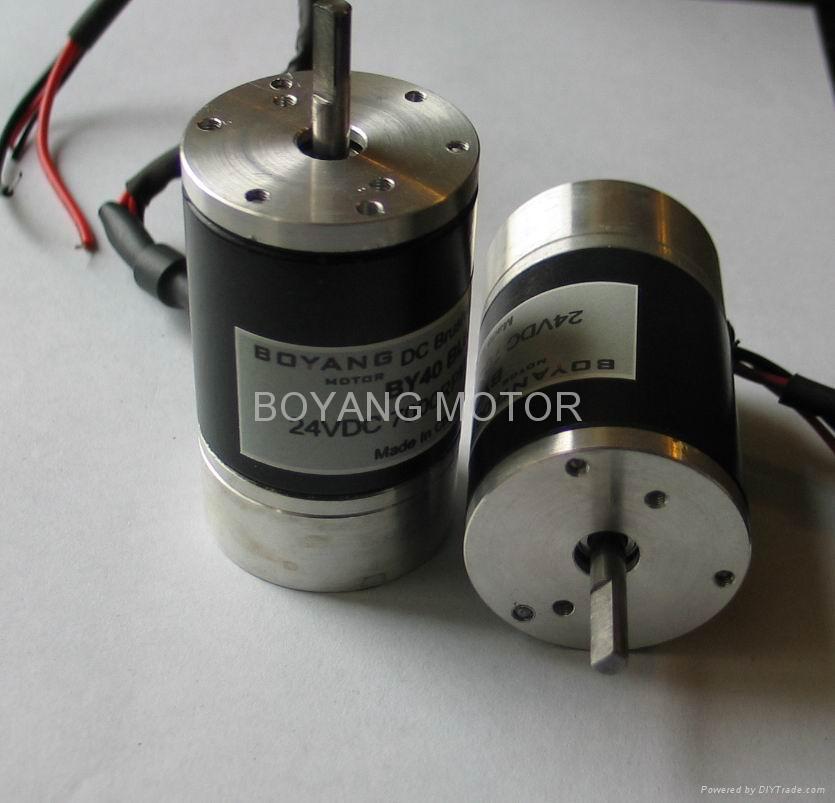

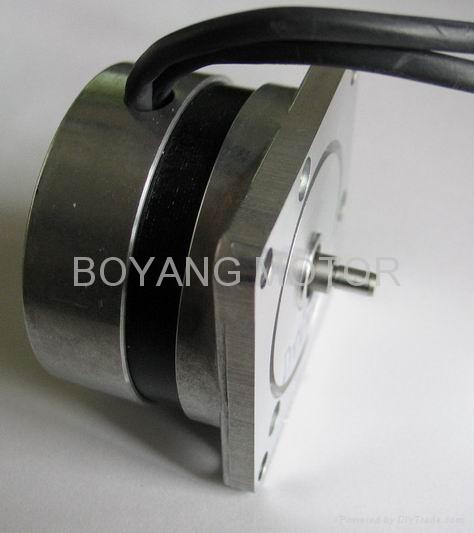

直流无刷电机
| 型号： | 40mm-57mm |
|---|---|
| 品牌： | BOYANG |
| 原产地： | 中国 |
| 类别： | 电子、电力 / 电动机 |
| 标签︰ | 直流电机 , 直流无刷 |
| 单价： |
¥100
/ 件
|
| 最少订量： | 1000 件 |
产品描述
直流无刷电机
高速度，高扭矩。
可以根据客户要求进行定制生产：
| Model | Rated
Voltage (V) |
Rated
Speed (RPM) |
No Load
Speed (RPM) |
Rated
Current (A) |
No Load
Current (A) |
Rated
Torque (N.m) |
Winding Type | Power
(watts) |
Weight (g) |
| BY40BL10 | 12 | 3000 | 4000 | 1.2 | 0.2 | 0.04 | Y | 10 | |
| BY40BL30 | 12 | 6000 | 7000 | 3.5 | 0.4 | 0.08 | Y | 30 | |
| BY40BL60 | 12 | 10000 | 12000 | 10 | 1.1 | 0.1 | Y | 60 | |
| BY40BL100 | 24 | 15000 | 17000 | 8 | 0.7 | 0.1 | Y | 100 | |
| BY40BL120 | 24 | 20000 | 22000 | 11 | 1.1 | 0.1 | Y | 120 |
| Model | Rated speed RPM
|
Continuous stall torque N.m | Mass Kg | Rated torque N.m | Rated power W
|
Peak torque N.m
|
Peak current A
|
Line to line resistance ohms
|
Line to line inductance mH | Torque constant Nm/A | Back E.M.F V/KRPM
|
| BY42BL26 | 4000 | 0.075 | 0.3 | 0.0625 | 26 | 0.19 | 5.4 | 1.8 | 2.6 | 0.035 | 3.66 |
| BY42BL50 | 4000 | 0.15 | 0.45 | 0.125 | 52.5 | 0.38 | 10.6 | 0.8 | 1.2 | 0.0355 | 3.72 |
| BY42BL75 | 4000 | 0.22 | 0.65 | 0.185 | 77.5 | 0.56 | 15.5 | 0.55 | 0.8 | 0.036 | 3.76 |
| BY42BL100 | 4000 | 0.3 | 0.8 | 0.25 | 105 | 0.75 | 20 | 0.28 | 0.54 | 0.0376 | 3.94 |
| Model | Rated
Voltage (V) |
Rated
Speed (RPM) |
No Load
Speed (RPM) |
Rated
Current (A) |
No Load
Current (A) |
Rated
Torque (KG.CM) |
Winding Type | Power
(watts) |
Weight (g) |
| BY46BL77 | 24 | 3000 | 3600 | 2.5 | 0.35 | 1.5 | Y | 45 |
| Model | Rated
Voltage (V) |
Rated
Speed (RPM) |
No Load
Speed (RPM) |
Rated
Current (A) |
No Load
Current (A) |
Rated
Torque (N.M) |
Winding Type | Power
(watts) |
Weight (g) |
| BY58BL12-30 | 12VDC | 3000 | 4000 | 2 | 0.3 | 0.1 | Y | 30 | |
| BY58BL12-50 | 12VDC | 6000 | 7000 | 4 | 0.5 | 0.12 | Y | 50 | |
| BY58BL12-70 | 12VDC | 8000 | 9500 | 5 | 0.9 | 0.13 | Y | 70 | |
| BY58BL24-100 | 24VDC | 15000 | 17500 | 6 | 0.8 | 0.2 | Y | 100 | |
| BY58BL24-150 | 24VDC | 2000 | 23000 | 10 | 1.3 | 1.5 | Y | 150 |
| 付款方式︰ | TT |
|---|---|
