小型壁挂式工控机

产品描述

深圳精视控制技术有限公司，专业为机器视觉行业开发有FVC系列无风扇视觉控制器和TVC一体式
视觉控制器。采用Intel双核处理器，兼容千兆网口/1394/USB相机采集图象处理，集成数字量输
入/输出接口可以方便地集成到工厂自动化控制系统中。

型号：FEC-7120

安装：7槽壁挂式工控机

主板：ATX/Micro ATX母板12"* 9.6"(305*245MM)

硬盘：4个硬盘位位：2个3.5寸硬盘位或+2个2.5寸硬盘位

光驱：无光驱

电源：ATX规格电源

标配风扇：2个8025静音含油风扇

扩展槽：7个全高直插槽

面板设置：2个USB2.0，1个电源开关，一个硬盘指示灯，一个电源指示灯

材质：1.2MM厚度马钢高级无花镀锌板

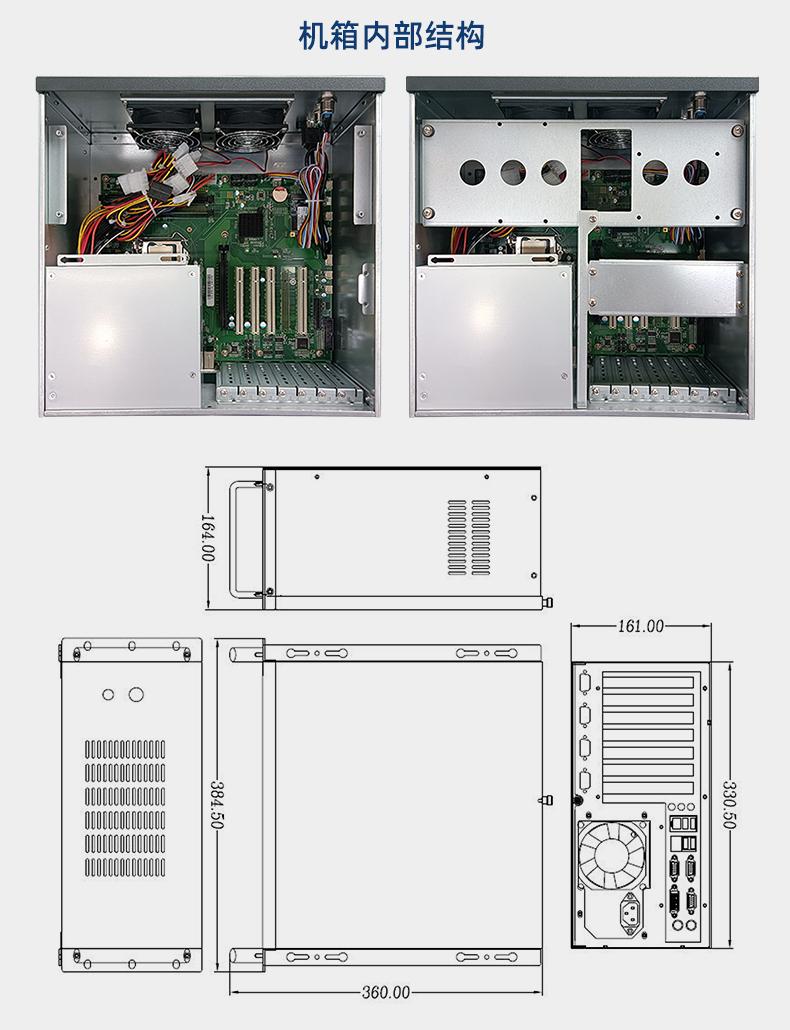

尺寸(mm)：330(宽）*325（深）*160mm（高）

General
CPU	Intel® 4th Generation CoreTM i3/i5/i7, Pentium®, Celeron® CPU, LGA1150
Chipset	Intel® H81 Chipset, TDP 4.1W
Memory	DDR3-1333/1600, 2*U-DIMM, up to 16 GB
Storage	1SATA 3.0, 2SATA 2.0, 1*mSATA
Expansion Interface	1PCIe x16, 1PCIe x4, 1PCIe x1, 4PCI, 1*Mini-PCIe(mSATA supported)
BIOS	AMI UEFI BIOS
System	Windows 7/8.1/10, Linux
I/O Interface
Ethernet	2*Realtek® 1Gbps PCIe Ethernet Controller, RJ45
Serial	5RS232, 1RS232/RS485
USB	2USB 3.0, 8USB 2.0
Audio	Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out
PS/2	2*PS/2 Port (Keyboard & Mouse)
Parallel Port	1*LPT Header
GPIO	8*Programmable GPIO
Display
Display Interface	1VGA: max resolution up to 19201200@60Hz 1DVI: max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	305*220mm
Power Input	ATX PSU
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing

SMB-H1134主板：

General
CPU	Intel® 6th and 7th Generation CoreTM i3/i5/i7, Pentium®, Celeron® CPU, LGA1151
Chipset	Intel® H110 Chipset, TDP 6W
Memory	DDR4-1866/2133, 2*U-DIMM, up to 32 GB
Storage	4SATA 3.0, 1mSATA/ M.2
Expansion Interface	1PCIe x16, 1PCIe x4, 1PCIe x1,4PCI, 2Mini-PCIe (1mSATA, 1*Wifi/3G/4G supported)
BIOS	AMI UEFI BIOS
System	Windows 7/8.1/10, Linux
I/O Interface
Ethernet	2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial	4RS232, 2RS232/RS485
USB	4USB 3.0, 6USB 2.0
Audio	Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2	1*PS/2 Port (Keyboard & Mouse)
Parallel	1*LPT Header
GPIO	8*Programmable GPIO
Display
Display Interface	1VGA: max resolution up to 19201200@60Hz 1HDMI: max resolution up to 40962160@24Hz 1DVI-D: max resolution up to 19201200@60Hz
Multiple Display	Dual
Mechanical & Environment
Dimension	305*217mm
Power Input	ATX PSU
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing

SMB-Q4752A主板

General
CPU	Intel® 10th Generation CoreTM i3/i5/i7/i9, Pentium®, Celeron® CPU, LGA1200
Chipset	Intel® Q470 Chipset, TDP 6W
Memory	DDR4-2666/2933, 4*U-DIMM, up to 64 GB
Storage	4SATA 3.0 1M.2 (Key-M, 2242/2280, PCIe x4/ SATA SSD)
Expansion Interface	1PCIe x16 Slot (PCIe x16 Gen3) 1PCIe x16 Slot (PCIe x8 Gen3) 3PCIe x4 Slot (PCIe x4 Gen3) 2PCI, 1*Mini-PCIe (Wifi+4G)
BIOS	AMI UEFI BIOS
System	Windows 10, Linux
I/O Interface
Ethernet	2*Intel® 1Gbps PCIe Ethernet Controller, RJ45
Serial	4RS232, 1RS232/RS485/RS422, 1*RS232/RS485
USB	6USB 3.0, 7USB 2.0
Audio	Realtek® ALC662 5.1 channel HDA Codec, with MIC/Line-out/Line-in
PS/2	1*PS/2 Port (Keyboard & Mouse)
GPIO	8*Programmable GPIO
Display
Display Interface	1DVI-D: max resolution up to 19201200@60Hz 1HDMI 1.4b: max resolution up to 40962160@30Hz 1VGA: max resolution up to 19201200@60Hz 1eDP: max resolution up to 40962304@60Hz
Multiple Display	Triple
Mechanical & Environment
Dimension	305*244mm
Power Input	ATX 28P
Temperature	Operation: 0℃~60℃, Storage: -25℃~75℃
Relative Humidity	Operation: 10%~90%, Storage: 5%~95%, non-condensing
