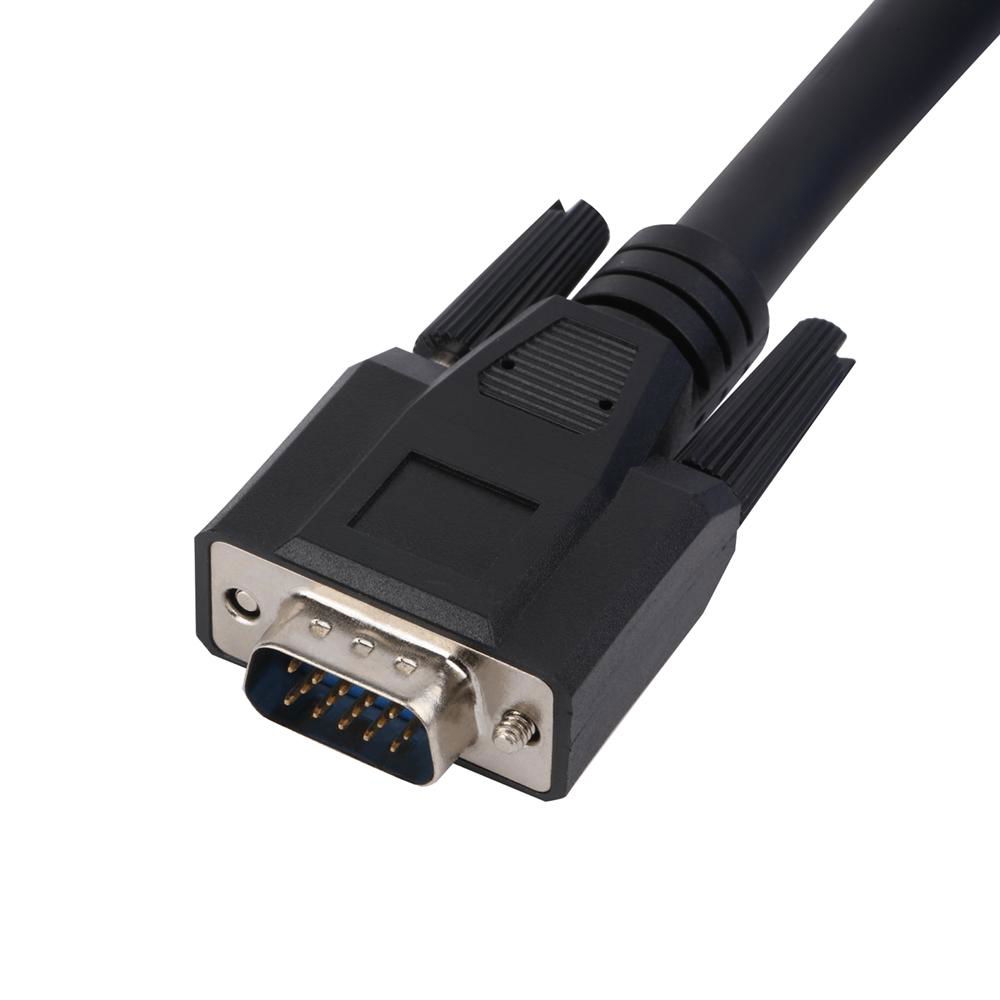

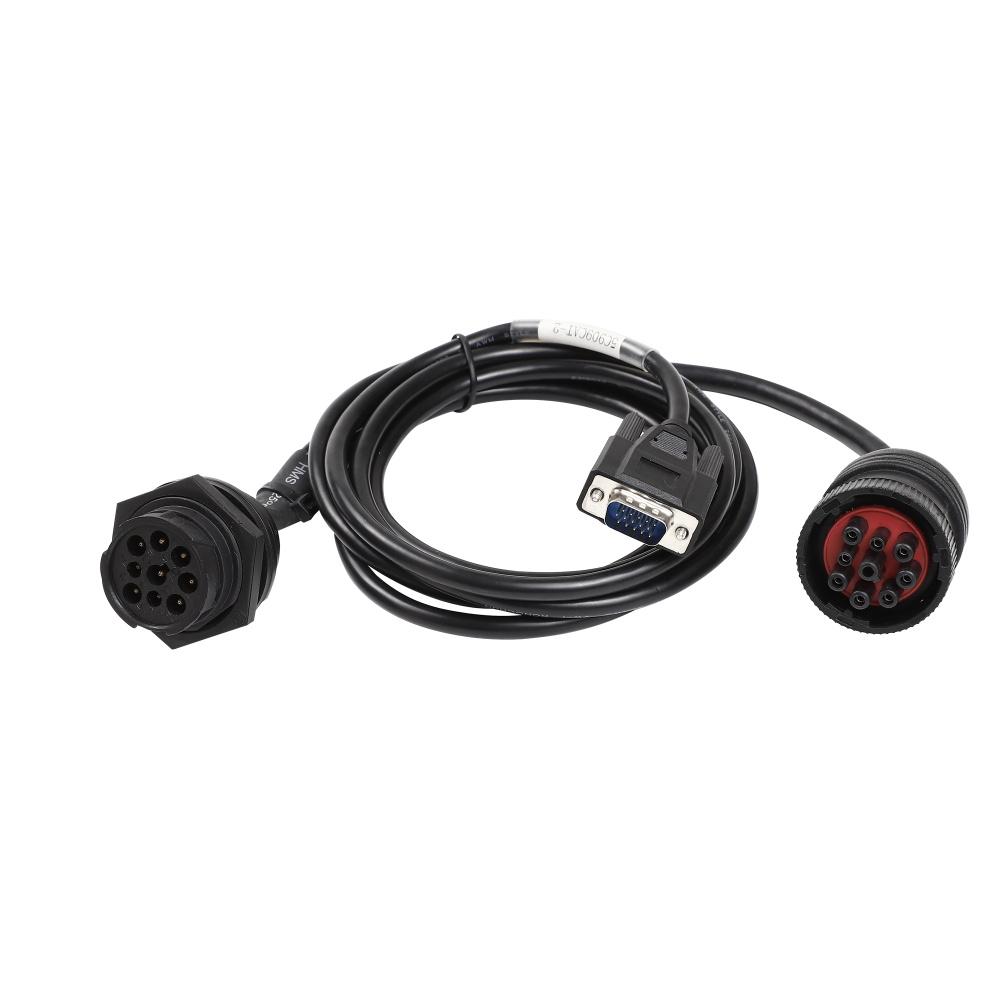

9针1型阳黑至9P1型螺纹阴带D-SUB15针阳j1939

型号：	CT011-193907
品牌：	COMTECH
原产地：	中国
类别：	交通运输 / 汽车部件和附件
标签︰	j1939 9 pin cab , j1939 jpod , splitter y cable
单价：	¥54.4 / 件
最少订量：	1000 件

J1939 female socket	equivalent of Deutsch HD16-9-1939S-P080
Type of J1939 female socket	Type 2

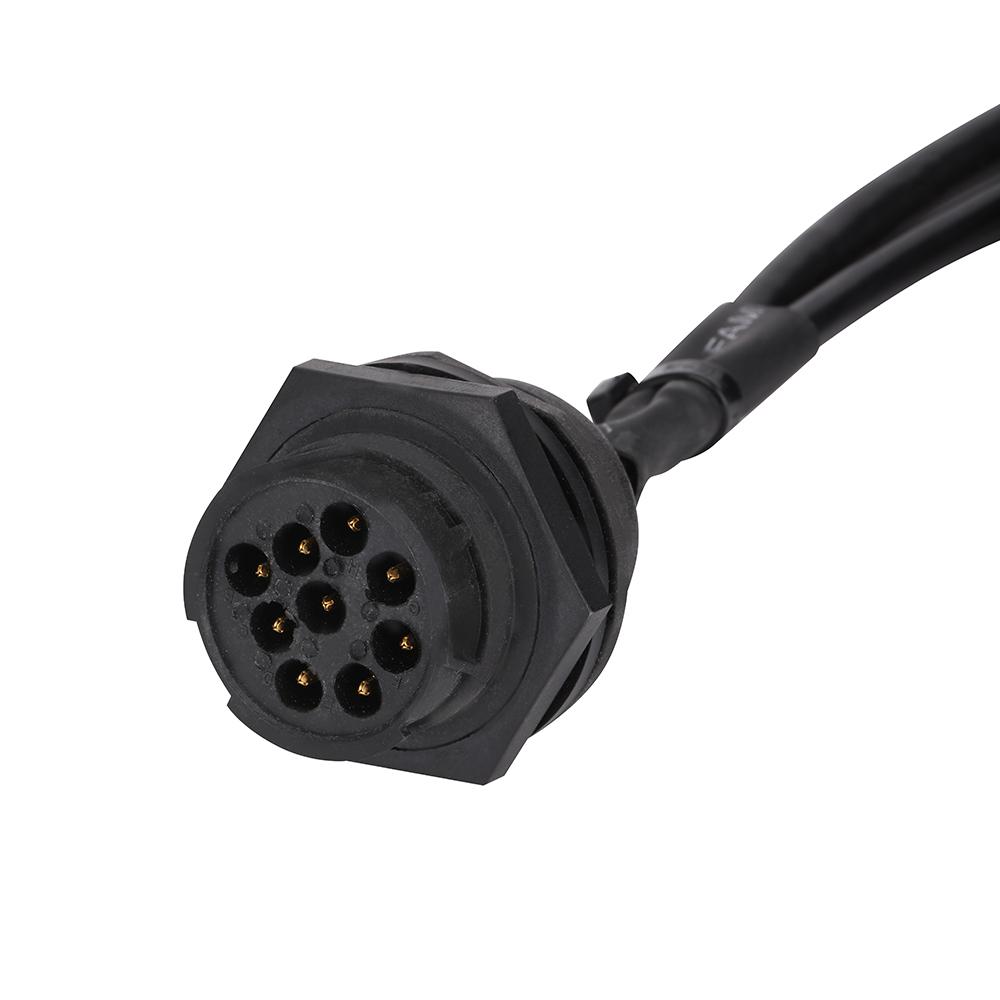

J1939 male receptacle	equivalent of Deutsch HD10-9-1939P-P080
Type of J1939 male receptacle	Type 2
Molex 20 Pin Female plug	equivalent of 43025-2000
Wire	18AWG, pure copper
Material of J1939 connectors	PA66 + glass fiber
Material of Molex plug	PA66
Pin assignment or pin out	customized
Cable length	customized
Pins or terminals	copper, nickel-plated or gold-plated
Contact Resistance	3 ohm max.
Insulation Resistance	5M ohm min.
Working Temperature	−25℃ ~ +85℃
Testing	100% open, short and miss-wire testing
Testing Voltage	DC300V 5M ohm/10ms
Warranty	1 year
