7号4节并排电池盒（BH441-2）
| 型号： | BH441-2 |
|---|---|
| 品牌： | BLOSSOM |
| 原产地： | 中国 |
| 类别： | 电子、电力 / 电池、蓄电池、充电器 |
| 标签︰ | 7号电池盒 , 7号4节 , 浙江电池盒 |
| 单价： |
-
|
| 最少订量： | 1000 件 |
产品描述

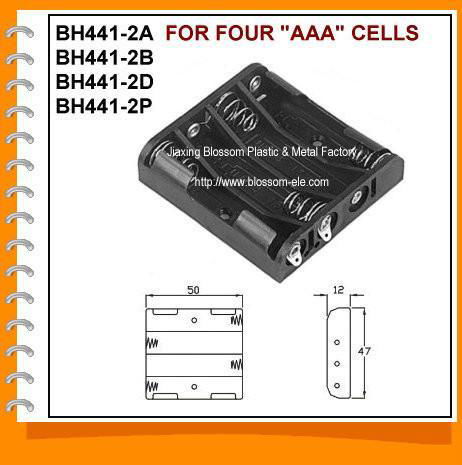

BH441-2-"七号四节并排电池盒"
Specifications:
Size:50x47x12mm
Plastic material - polypropylene
Flammability Rating-UL94 HB, UL File No. E216959
Temperature Range: -10°C to +100°C
Springs - nickel plated spring steel
Wire - 152.4 mm Long 26 AWG, UL1007, CSA - TR-64, 300V, 80° C.
Rivets - Brass, nickel plated
9 Volts Snaps - Brass, nickel plated
Contact Resistance: Under 50m for +/- contacts per EIA-540J000
ROHS COMPLIANT
1. Our battery holders carry patents for terminal rivet construction, crimped, and polarity protection.
Specifications:
Size:50x47x12mm
Plastic material - polypropylene
Flammability Rating-UL94 HB, UL File No. E216959
Temperature Range: -10°C to +100°C
Springs - nickel plated spring steel
Wire - 152.4 mm Long 26 AWG, UL1007, CSA - TR-64, 300V, 80° C.
Rivets - Brass, nickel plated
9 Volts Snaps - Brass, nickel plated
Contact Resistance: Under 50m for +/- contacts per EIA-540J000
ROHS COMPLIANT
1. Our battery holders carry patents for terminal rivet construction, crimped, and polarity protection.
2. OEM orders are accepted.
3. A range of battery holders to suit the standard range of CR2032, 9V, AG13, N, AAA, 1/2AA, CR123A, AA, C and D size batteries.
The explanation of numbers of battery holders:
A: With lead wires 150mm
Strip & Tin: 5mm+/- 1mm
B: With 4Prong or 6Prong snap terminal
D: With TAG(Solder Lugs) Terminal
P: With Pin(PC Mounted)
T: Terminal
S: Slide Switch ON-OFF
