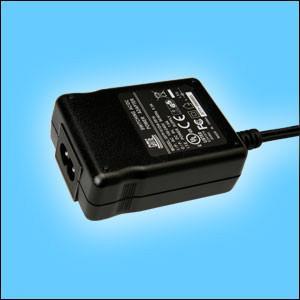

销售12V1.5A 桌面式开关电源适配器 GEO151DA-120150 (中国广东省生产商) - 适配器

销售12V1.5A 桌面式开关电源适配器 GEO151DA-

型号：	GEO151DA-120150
品牌：	GEO
原产地：	中国
类别：	电子、电力 / 电源和配电设备 / 适配器
标签︰	开关电源 , 桌面式电源 , 适配器
单价：	-
最少订量：	500 件

发送查询

产品描述

GEO151DA-0330 [3V3A]
GEO151DA-A0330 [3.3V3A]
GEO151DA-0530 [5V3A]
GEO151DA-0628 [6V2.8A]
GEO151DA-0920 [9V2A]
GEO151DA-1018 [10V1.8A]
GEO151DA-1215 [12V1.5A]
GEO151DA-1512 [15V1.2A]
GEO151DA-2407 [24V0.75A]

Model Number	Input Range	Output Range
GEO151DA-0330	90-240V	3.0V	3.0A
GEO151DA-A330		3.3V	3.0A
GEO151DAA-0530		5.0V	3A
GEO151DA-0628		6.0V	2.8A
GEO151DA-0920		9.0V	2A
GEO151DA-1018		10V	1.8A
GEO151DA-1215		12V	1.5A
GEO151DA-1512		15V	1.2A
GEO151DADA-2407		24V	0.75A

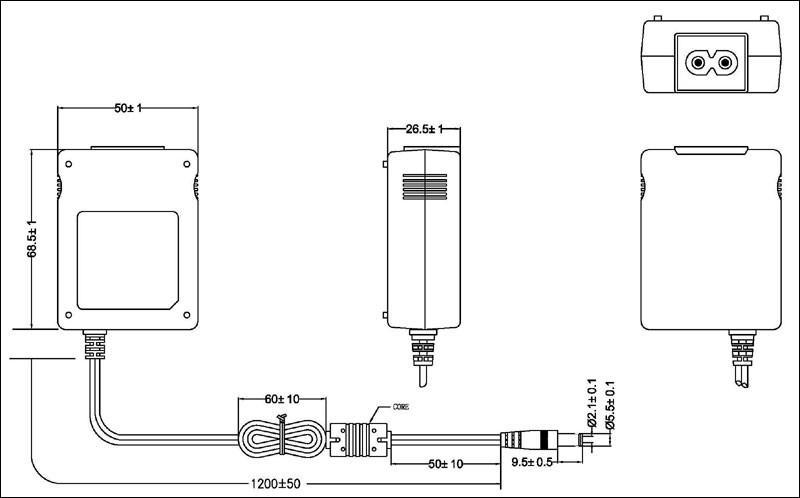

DIMENTION:L*W*H=68.5*50*26.5
[Input Voltage]: AC 100-240V,50/60Hz
[Range Voltage]: AC 90--264V,47/63Hz
[Output Power]: 18W
[Output Voltage]: 3V-24V
[Over Voltage Protection]: 120%min
[Over Current Protection]: 120%min
[Short Protection]: Auto Recovery
[Load Regulation]: ±5%
[Operating Temperature]: 0~40℃
[Storage Temperature]: -20~85℃
[Operating Relative Humidity]: 5~95%RH
[Withstanding Voltage]: AC 3000V(Min),5mA(Max)
[Insulation Resistance]: DC 500V 100MΩ(Min)
[Safety]: UL/cUL PSE GS/TUV BS CE CB FCC SAA C-Tick EK CCC BSMI
[Market]:Japan,USA,Europe,England,Australia,China,Taiwan,Korea
