5W 澳洲SAA标准开关电源适配器 充电器

GFP051A-0315 [3V1.5A]
GFP051A-A315 [3.3V1.5A]
GFP051A-4207 [4.2V0.7]
GFP051A-4212 [4.2V1.2A]
GFP051A-4505 [4.5V0.5A]
GFP051A-4510 [4.5V1A]
GFP051A-0505 [5V0.5A]
GFP051A-0510 [5V1A]
GFP051A-0610 [6V1A]
GFP051A-7508 [7.5V0.8A]
GFP051A-0965 [9V0.65A]
GFP051A-1205 [12V0.5A]
GFP051A-1504 [15V0.4A]
GFP051A-2425 [24V0.25A]

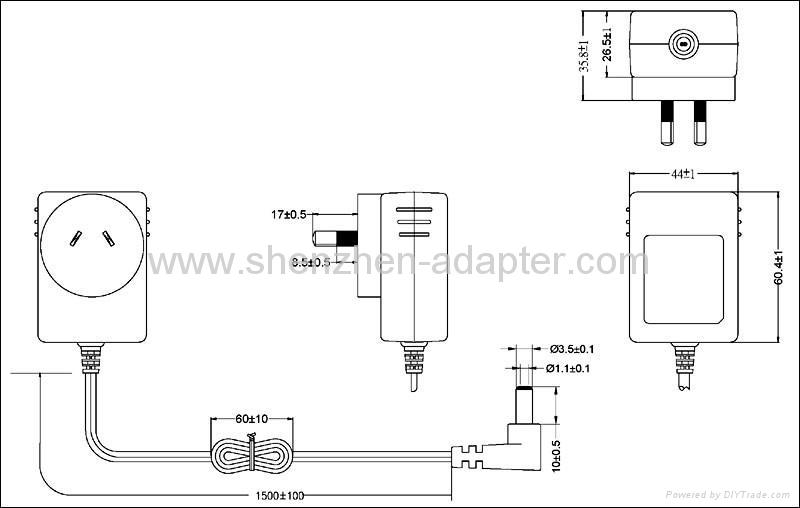

机械尺寸:L*W*H=60.4*44*35.8mm
输入电压[Input Voltage]: AC 100-240V,50/60Hz
输入电压范围[Range Voltage]: AC 90--264V,47/63Hz
输出功率[Output Power]: 5W
输出电压[Output Voltage]: 3V-24V
过压保护[Over Voltage Protection]: 120%min
过流保护[Over Current Protection]: 120%min
短路保护[Short Protection]: Auto Recovery
输出电压精度[Load Regulation]: ±5%
工作环境温度[Operating Temperature]: 0~40℃
存储温度[Storage Temperature]: -20~85℃
工作湿度[Operating Relative Humidity]: 5~95%RH
绝缘耐压[Withstanding Voltage]: AC 3000V(Min),5mA(Max)
绝缘阻抗[Insulation Resistance]: DC 500V 100MΩ(Min)
安规认证[Safety]: SAA C-Tick

主要市场[Market]:澳洲
