Quick Details

Place of Origin: Guangdong China (Mainland)	Brand Name: BOSSLYN Brand	Model Number: NEMA L14-30P
Type: Electrical Plug	Grounding: Standard Grounding	Rated Voltage: 125V/250V
Rated Current: 30A	Application: Industrial	Colour: black
Material: Bakelite	Metal Material: Copper	Blade: Twist-Locking Type

Packaging & Delivery

Packaging Detail:	50pcs/carton,25KG/CARTON 20HQ 150,000PCS
Delivery Detail	5days

Specifications

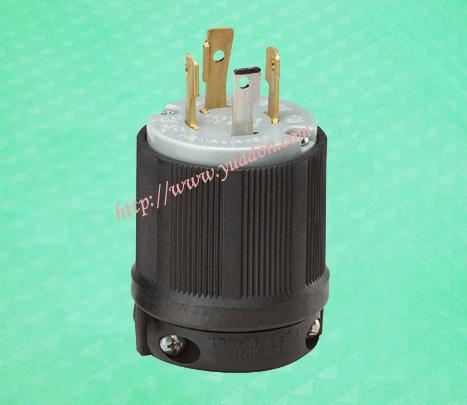

NEMA L14-30P 30A 125V/250V 4P UL Approve plug
1.NEMA L14-30P Locking Plug
2.30A 125V/250V
3.UL cULsl;



NEMA L14-30P 30A 125V/250 4P UL Approve plug

1.NEMA L14-30P

2.4P 30A 125V/250V
3.Safety Standard UL cULs

4.Housing Material:Black Bakelite

5.Cord Clamp Material:Gray Bakelite

6.Blade Material:Brass

7.Terminal Clamp Material:.08"(2)steel-nickel plated

8.Terminal Screw MaterialL:#10-32 Brass(white finish on neutral 9.screw when use)Multi Device

10.Ground Screw Material:#10-32 Brass(green finish)Multi-device

11.Cord Clamp Screw Material:Steel,zinc plated Multi-drive

12.Body Holding Screw Material:Steel,zinc plated Multi-drive

13.Ratings:Molded In or Stamped On

14.Catalog NO:Permanently ink marked on product

15.Dielectric Voltage Withstand:3,000V minimum

16.Current Interrupting:Cerfied for rurrent interrupt at full rate current

17.Temperature Ris:Max rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.

18.Cord Accommodation:Round portable service cords fo 19.diameters commensurate with the device rating as defined in UL standard 62,CSA C22.2 NO.49

20.Terminal Accommodation:30A#10AWG

21.Terminal Identification:Terminals identified in accordance with UL498(X,Y,Z,White,Green)

22.Operating Temperatures:Maximum Continuous 75C Minimum-40C(w/o impact)

23.Moisture Resistance IP20

UL CULS认证:E500807
