多晶硅太阳能光伏组件315Wp

多晶硅太阳能光伏组件315Wp
型号:SP315
品牌:索莱
原产地:中国
类别:冶金矿产、能源 / 新能源 / 太阳能设备
标签︰多晶组件 , 太阳能组件 , 太阳能板
单价: ¥6.7 / 瓦
最少订量:5000 瓦

产品描述

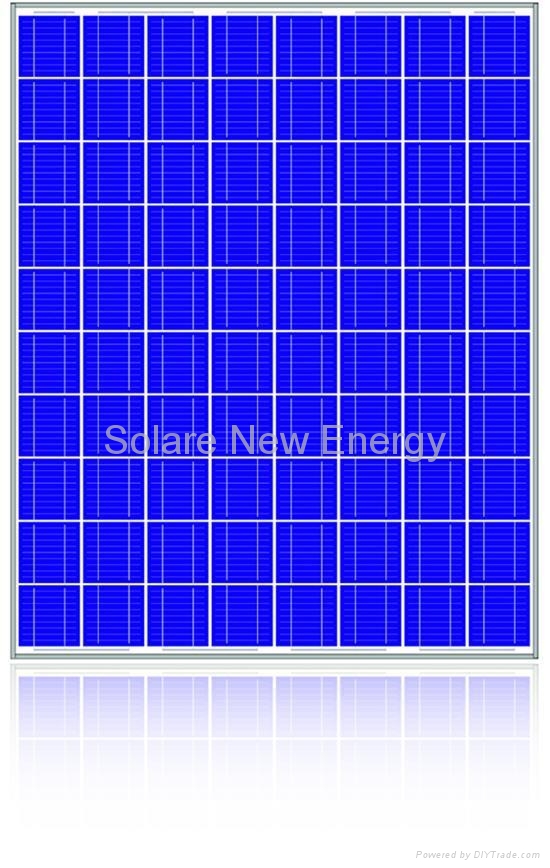

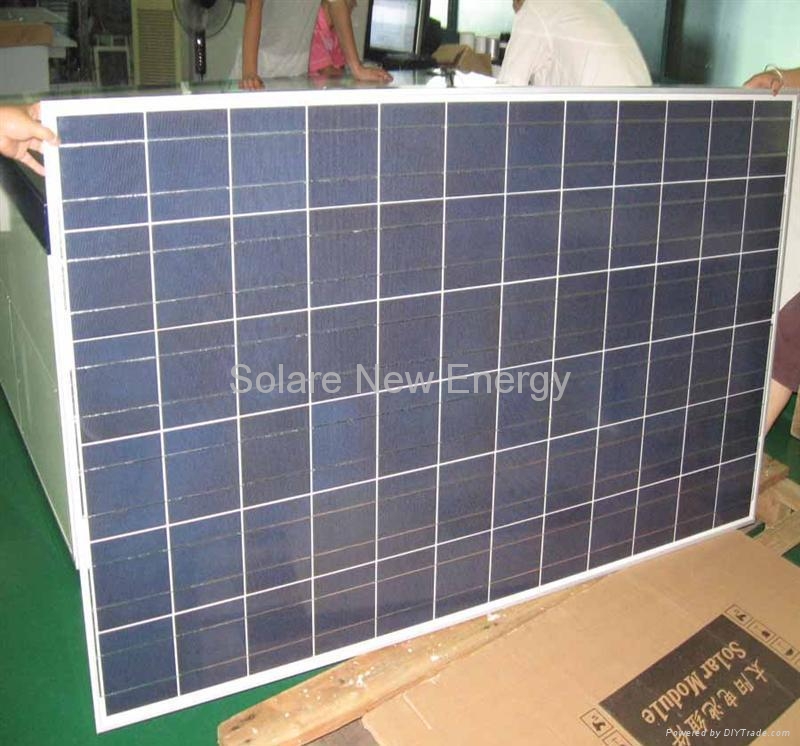

 Solare New Energy poly solar PV panel 320Wp 40V offer industry leading high performance and are designed specifically to meet our client demands for residential, commercial and industrial use from small installations to multi-Megawatt power plants.



Quality Characteristics are as below:

a) Poly solar PV panel 320Wp 40V With STP, JA solar etc famous brand High-efficient solar cells ensure high performance of solar module and create more power under same condition.

b) Average power of PV modules is within positive tolerance.

c) 3.2mm high-transparent low-iron toughened glass, EVA laminate and water-proof TPT yield long life modules while enhancing cell performance.

d) Stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind pressure and snow load.

e) Bypass diodes to avoid hot-spot effect.

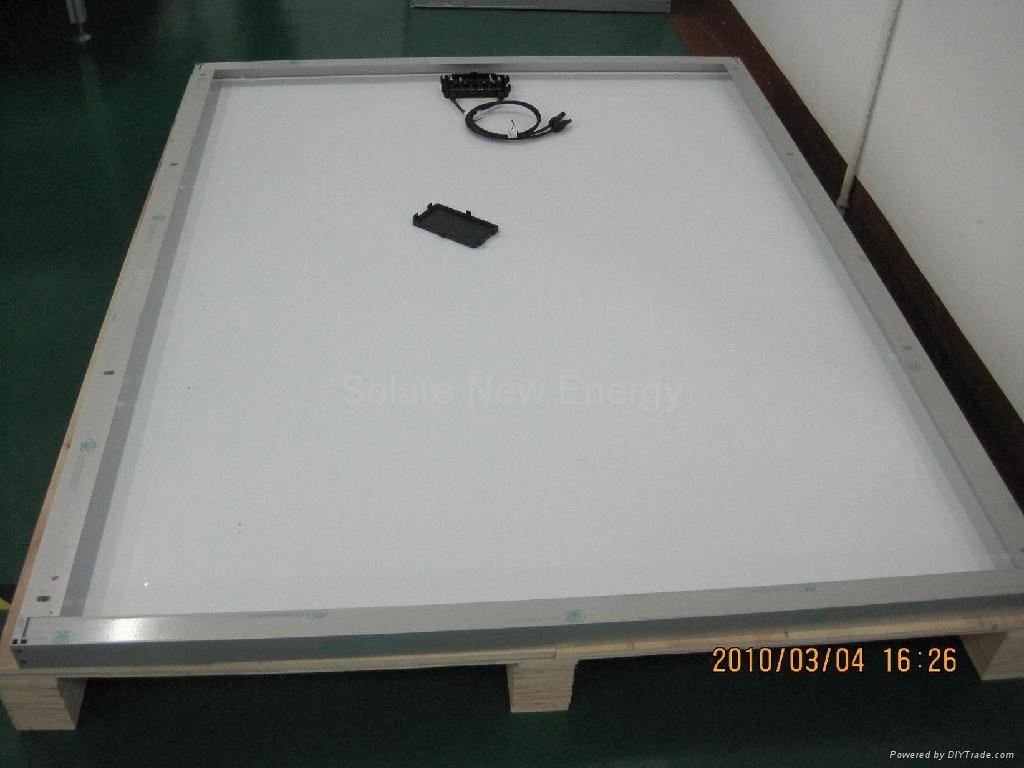

f) The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame trough and freeze or even bend the frame in cold season.

g) 5 years warranty for PV module and its materials and corresponding fittings, 90% output of rated power after 10 years and 80% output of rated power after 25 years under Standard Test Conditions.

h) Comply with IEC61215 and IEC 61730 TUV standard.

i) Produced under systemic quality control covering all processes and factors.



Module Specification

SM320(40)P1632×1307

Module Type

  Poly

Peak power (Pmax)

320W

Open circuit voltage (Voc)

48.58V

Short circuit current (Isc)

8.75A

Max. power voltage (Vm)

39.5V

Max. power current (Im)

8.10A

Maximum System Voltage

1000VDC

Operating Temperature()

-40 to 85

Module size (mm)

1632×1307×50mm

Weight

26.5kg

All technical date at standard test condition:

Am=1.5  E=1000W/m2  Tc=25
