Professional Diagnostic Tool for CUMMINS

Product Description:

• Supports SAE J1708/J1587 and J1939/CAN data links
• Supports USB full speed port at up to 2M baud rate
• Supports RS-232 PC/PDA serial port at up to 115.2k baud rate
• Is fully compliant with TMC's RP1210 standard
• Small enough to fit in pocket
• Aluminum housing provides r edness
• Derives 8 V to 50 V DC power from vehicle
• Includes advanced processor for maximum speed and performance
• Internal Flash memory allows firmware upgradeability
• Includes 5 LEDs to indicate power and USB, RS-232, J1708/J1587, and J1939/CAN communications
• Certified to meet European CE requirements
• Rated for -40° to +85° C operating temperature
• INLINE 5 meets Cummins in-cab environmental test requirements

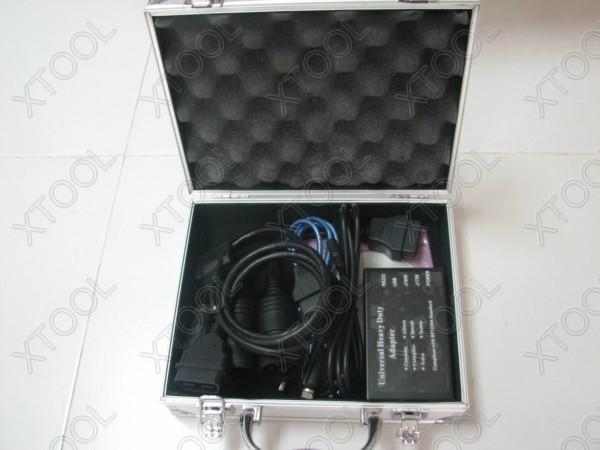

INLINE 5 product kit (P/N 4918416) includes:

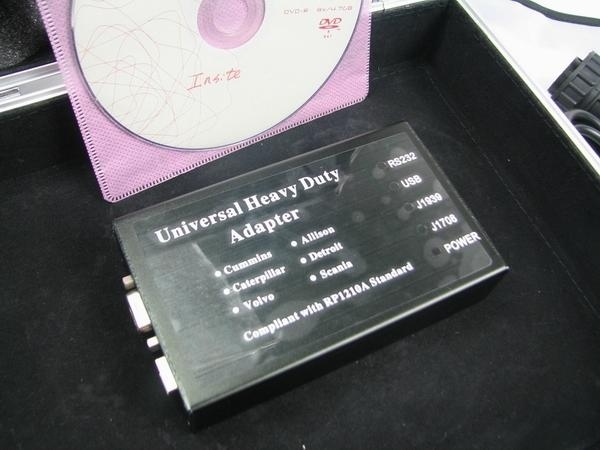

• INLINE 5 data link adapter (P/N 3165033)
• USB 2 meter cable (P/N 4918419)
• DB25F/9-pin data link cable (P/N 3165159)
• DB25F/6-pin data link cable (P/N 3165160)
•  INLINE 5 software CD (P/N 4918417)
• Storage case (P/N 3165143)
