IS2D10P03，IS2D45P03，IS2D60P03，
| 型號： | IS2D10P03， |
|---|---|
| 品牌： | GEMAC德國 |
| 原產地： | - |
| 類別： | 電子、電力 / 儀器、儀表 / 電子測量儀器 |
| 標籤︰ | 傾角傳感器 , 角度傳感器 , 角度檢測 |
| 單價： |
-
|
| 最少訂量： | - |
產品描述

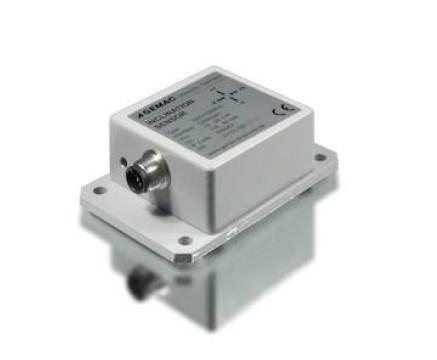

IS2D xx P03 / P04傾角傳感器GEMAC德國
IS2D10P03，IS2D45P03，IS2D60P03，IS2A10S28，IS2A45S28，IS2A60S28，IS2A10S40，IS2A45S40，IS2A60S40，IS1D00P20，IS2D90P20，IS1D00P24，IS2D90P24，IS1D00P25，IS2D90P25，
Characteristics:
2-dimensional inclination sensors with
measurementran ge:+100/+450/+60。
(depending on type)
High resolution and accuracy
Comfortable CAN bus interface
- Freely selectable IDs
- Baud rates from 10 kBit/s t0 1 MBit/s
High sampling rate and bandwidth
Figure similarly
Programmable vibration suppression
Functions:
- Angle request and cyclical output
- Comfortable setting of parameters
- Configurable cut-off frequency (digital filter)
Four freely configurable, potential-free switching outputs (type IS2D xx P04 0nly)
Robust, simply mountable aluminium housing
Suitable for industrial use:
- Temperature range: -40 0C to +80 0C
- Degree of protection: IP65/67
The 2-dimensional inclination sensors IS2D xx P03 / P04 enable, according to the type, the meas-
urement of inclinations in the ranges +100, +450 0r +600. To guarantee a high accuracy the zero
point and full-scale readings are calibrated factory-made at 250C. The adaption to an individual
measurement range is possible on request.
The inclination sensor IS2D xx P04 includes four freely configurable, potential-free switching out-
puts and can also be used as transducer in control systems without connection to the CAN bus.
The compact and robust design makes the sensor a suitable angle measurement device in rough
surroundings for different applications in industry and automotive technology. A simple setting of all
parameters which are stored in the internal permanent memory is possible by the CAN bus inter-
face.
詳細資料請加QQ：1330849923
聯繫人：王海福
聯繫電話：15201780835
