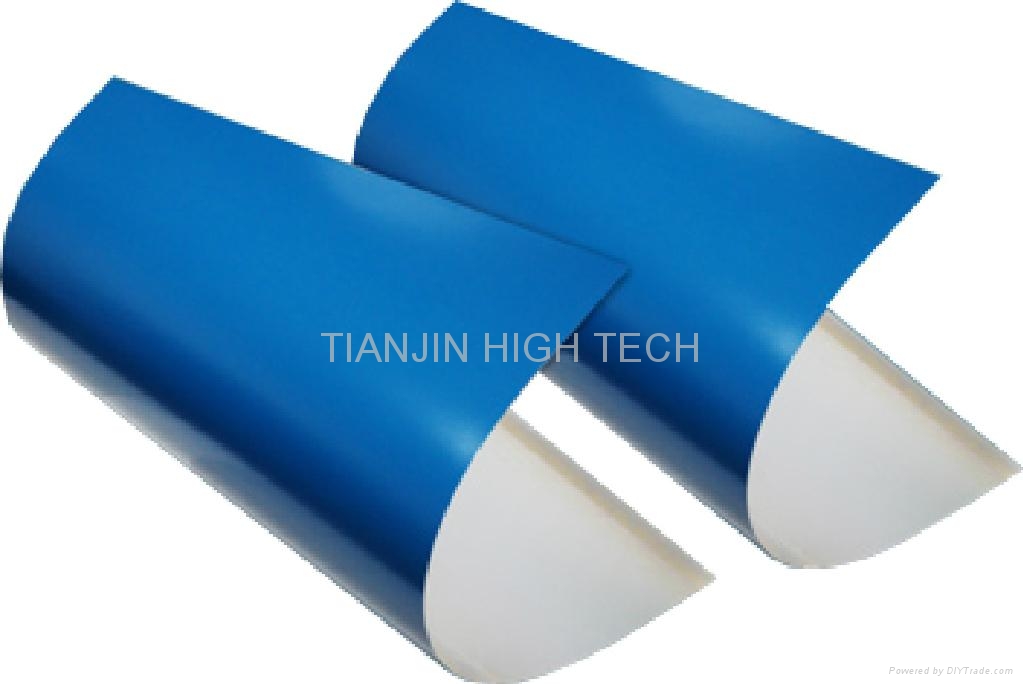

Thermal CTP Plate

TP-II 0.3mm is our self-developed high-quality printing plate specialized in thermal CTP platesetter. It is directly scanned by 830nm laser controlled by computer and put on press for printing after developing. The formulation designed by our own intellectual property and the unique manufacturing process.

Model: TP-II

Type: Positive

1. Thickness of aluminum base: 0.30mm

2. Application: High-quality commercial color printing

3. Specification:

Sensitivity: 120-140mj/cm²;

Dot reproduction: 1-99% (200lpi);

Safe operation in fluorescent light: 8 hours;

Run length before baking: more than 100,000; after baking: 200,000+

4. Recommended platesetter: Infrared laser thermal platesetter with 830nm

5. Features

a) Unique formation design

The sensitive layer is a unique formulation structure and it makes the dot edge which is formed with laser scanning more sharp and suitable for high-end commercial color printing.

b) High-quality substrate

Fine aluminum plate with complex grain construction, dense oxidized layer as its substrate. Not only ensures the adhesion of the thermal coating to the aluminum plate, but also makes the plate possessing excellent runlength and exact dot reproduction to guarantee high quality printing.

c) Convenient bright room operation

Imaged and processed under room-light condition without additional dark room, easier and more comfortable to operators.

d) Outstanding platesetter compatibility

Compatible with various thermal CTP platesetters available in current market

6. Storage and Unpacking

a) Light and heat can cause the thermal CTP plate to chemical change easily; Recommended condition Temp: 15-26 centigrade, RH≤65%.

b) Unpacking the outer package should be in yellow light or room light; the recommended plate-making room light should be yellow.

c) Carrying plate gently; avoiding striking, folding and falling.

d) Palletizing height: less than 1.2m.

7. Guarantee Period

12 months under above recommended storage condition
