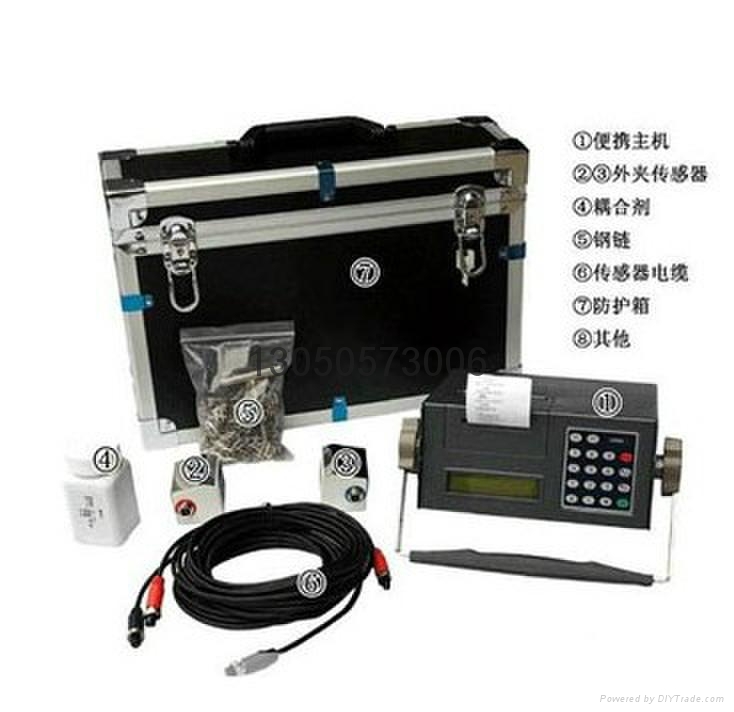

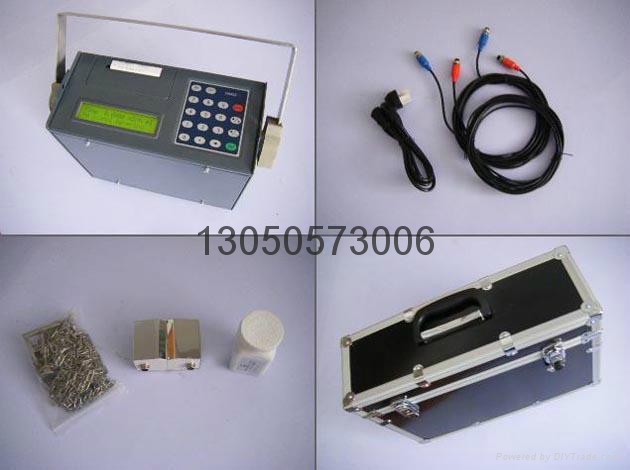

TDS-100P便攜式超聲波流量計技術特點：

適用於工業現場中液體流量的在線標定和巡檢測量。具有操作簡單、測量精度高、一致性好、可在線打印、電池供電時間長等特點。

Suitable for on-line liquid flow in the industrial field calibration and inspection measurement. Has the advantages of simple operation, high measuring precision, good consistency, The characteristics of online printing, battery power supply for a long time.


測量精度：優于1%；

Measurement precision: Better than 1%;


重複性：優于0.2%；

Repetition: Better than 0.2%;

工作電源：220VAC（標配），110VAC（可選）；

The working power supply: 220VAC (standard), 110VAC (optional);


測量週期：500ms(每秒2次，每個週期採集128組數據)；

The measurement cycle: 500ms (2 times per second, Each cycle, collecting 128 sets of data);


電   池：內置鎳氫充電電池可連續工作24小時；

Battery: 24 hours of continuous work of built-in Ni MH rechargeable battery;


傳感器安裝方式：外夾式安裝；

Sensor installation: Outer clip mounted;



添加PT100即可測量熱量


顯   示：2×10漢字背光顯示器（瞬時流量/熱量、累積流量/熱量、信號狀態等）；

Display: 2 x 10 Chinese characters (backlight display instantaneous flow, cumulative flow, signal status);


信號輸出：隔離RS485；

The signal output: The isolation of RS485;


通訊協議：MODBUS協議，FUJI擴展協議，兼容國內其他廠家同類產品的通訊協議；

Communication protocol: The MODBUS protocol, FUJI protocol, compatible with similar products from other manufacturers of domestic communication protocol;


打印輸出：內置熱敏一體式打印機，實現實時或定時打印；

Print output: The built-in thermal one printer, real-time or timing print;


其他功能：自診斷，提示當前工作狀態是否正常；

Other functions: Self diagnosis, prompt the current working state is normal;


可選配的傳感器：外夾式，可即插即拔式接口；

The sensor can be selected: Clamp, which can plug and play interface;



TDS-100超聲波熱量計

TDS-100ultrasonic heat meter

計量冷熱量。

測量精度：2級，滿足CJ128-2007《熱量表》標準；

Measurement precision: Level 2, Meet the CJ128-2007 "" standard heat meter;


工作電源：隔離DC8~36V或AC85~264V或3.6V/19AH鋰電池；

The working power supply: The isolation of DC8~36V or AC85~264V or 3.6V/19AH lithium battery;


溫度範圍：-40~160℃；

Temperature range: -40~160℃；


溫差範圍：3~75℃；

Temperature range: 3~75℃；


環境等級：B級或C級；

Environmental level: B or C;


可選輸出：1路標準隔離RS485輸出；

Optional output: 1 standard isolated RS485 output;


         1路隔離4-20mA或0-20mA輸出；

         1 isolated 4-20mA or 0-20mA output;


         可選HART協議；

         The optional HART protocol;


         雙路隔離OCT輸出（OCT1脈衝寬度6~1000ms之間可編程，默認200ms）；

         Dual isolated output (OCT OCT1 pulse width 6~1000ms programmable, the default 200ms);


         1路雙向串行外設通用接口，可以直接通過串聯的形式連接多個,諸如4-20毫安模擬輸出板、頻率信號輸出板、熱敏打印機、數據記錄儀等外部設備；

         1 two-way serial peripheral interface, can be directly through the series connected in the form of a plurality of, Such as 4-20 mA analog output plate, frequency signal output board, thermal printers, data recorder and other external devices;


其他功能：自動記憶前512天，前128個月，前10年正負淨累積流量；自動記憶前30次上、斷電時間和流量並可實現自動或手動補加，並可以通過MODBUS協議讀出；

Other functions: Automatic memory 512 days ago, the first 128 months, before 10 years of positive and negative net cumulative flow; Automatic memory before 30 time, breaking time and the flow and can realize the automatic or manual feeding, and can be read by MODBUS protocol;


流量傳感器：外夾式、插入式和管段式；

Flow sensor: The clamp type, insert type and pipe type;

溫度傳感器：PT100或PT1000鉑電阻；

Temperature sensor：PT100 or PT1000 platinum resistance;


2、傳感器   Sensor

①外夾式傳感器：標準M型、S型、L型、SG型、MG型;

The clamp type sensor: The standard M type, S type, L type, SG type, MG type;


安裝無需斷流，無壓力損失；

Installation without stop, no pressure loss;


精度±1%；

Accuracy of ± 1%;


安裝維修方便，用戶可自行安裝；

Convenient installation and repair, a user can install;


價格最低，與測量口徑有關；

The lowest price, with the measurement aperture;


適合於工況條件較好的環境；

Suitable for working conditions better environment;


②CR插入式傳感器

CR Insert type sensor


安裝無需斷流，可帶壓安裝，無壓力損失；

Installation without interruption, with pressure mounting, no pressure loss;


精度±1%

Accuracy of ± 1%


用戶需經培訓后，採用專用開孔器才能自行安裝；

The user must after training, the special opening device to install;


價格較高，與測量口徑無關；

The price is higher, has nothing to do with the measuring aperture;


接收信號良好，長期運行穩定、可靠。

The received signal is good, long-term stable operation, reliable.


③管段式傳感器

Pipe type sensor


安裝需斷管、斷流，無壓力損失

Installation of pipe break, break, no pressure loss


精度0.5%

The accuracy of 0.5%


安裝維修需斷流，用戶可自行安裝

Install the repair to stop, a user can install


測量口徑越大，價格越高

Measurement of the larger diameter, the higher the price


精度最高，接受信號良好，長期運行穩定可靠

The highest accuracy, the received signal is good, long-term stable operation
