冷燙金工藝是有別於對燙金版進行加熱將燙金箔上面的金屬鍍層轉移到產品上面的熱燙金工藝而言的。 它主要借助塗層，先在產品上面絲印或者噴塗溶劑型的或者UV型的光油， 然後採用輥筒式的燙金機進行壓印，有塗層的區域將會轉移燙金箔，而沒有塗層的區域則不會轉移燙金箔。
    冷燙金工藝適合較大幅面的紙張，不耐高溫的薄膜，一些金屬玻璃等不宜直接燙金的產品。冷燙金工藝也較適合多色燙金組合。

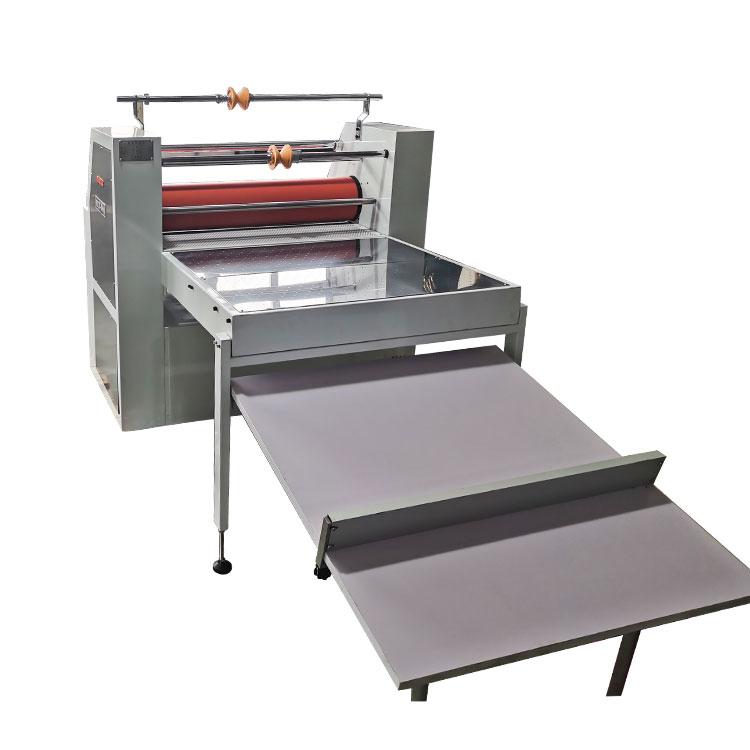

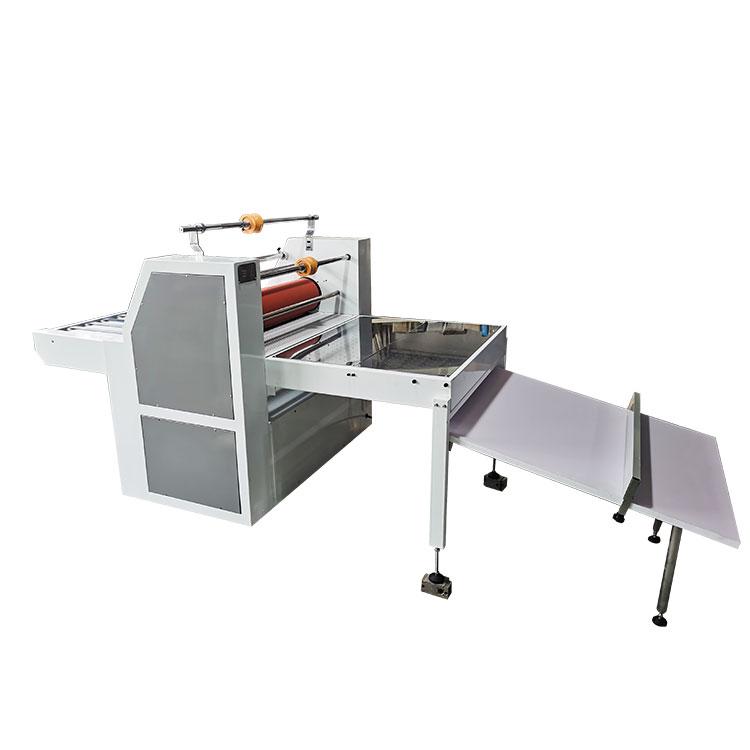

   H-TCR720 is designed for water transfer paper, heat transfer paper with hot stamping  such as stickers gilt of ceramic label paper, it has one set of feeding roll, installation need Stamping Foil . It is widely used in Cloth ,stickers, PVC film, paper and other products.
Indirect stamping process: First, in gilt plasma screen above the paper or fabric , followed by then H-TCR720 Heat Transfer Machine transfer. For the indirect process, logo screen spacing depends on the spacing.

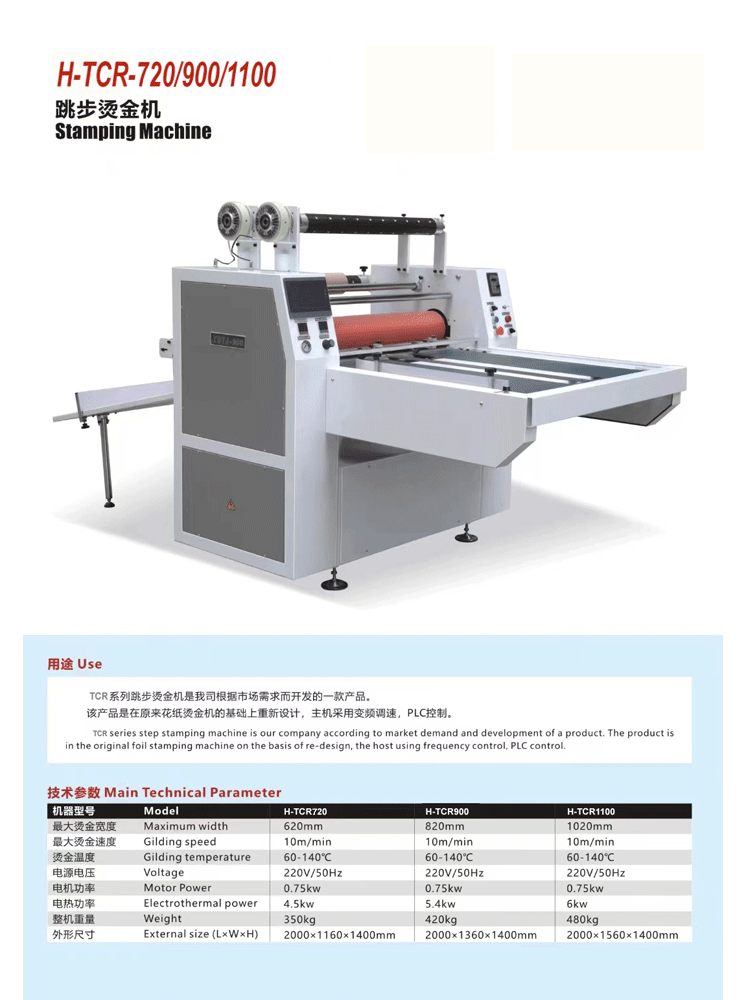

H-TCR720 Paper foil Hot Stamping Machine//Parameters

• Size of Roller:150mm
• Max roller width: 720 mm
• Max pressure:100 Kg
• Up-and down distance: 75 mm
• Heat wattage: 4×400 W
• Foil feed: Motor Drive
• Temperature range: 0 - 400oC
• Net Weight :480 Kg
• Outer dimension:1300 x 620 x 1430 mm .
• Works supply : 110V-220V Power supply.
• Pakcage dimension:970×700×900mm;
• Gross weight: 565KG;
• CBM: 2.6111
• H.S.CODE : 8443192190
• Certificate : CE

H-TCR720 Water transfer label hot foil stamping machine //Advantage

• Table settings embossing roller, can be tightly foil paper or transfer film pressure in the paper surface;
• Rubber rollers rotating heat transfer uniformity, suitable for paper continuous stamping;
• The transfer pressure, temperature, speed can be based on different material for the flexible adjustment;
• The nose height adjustable stamping head movements can fine-tune, easy to adjust the height of the different products;
• Precise temperature control system, temperature error control in less than 3 degrees; silicone roll radiant heating, thermal efficiency of the utilization factor;
• Rubber roller embossing pressure control system, constant pressure of the transfer process, the transfer effect is more perfect.
