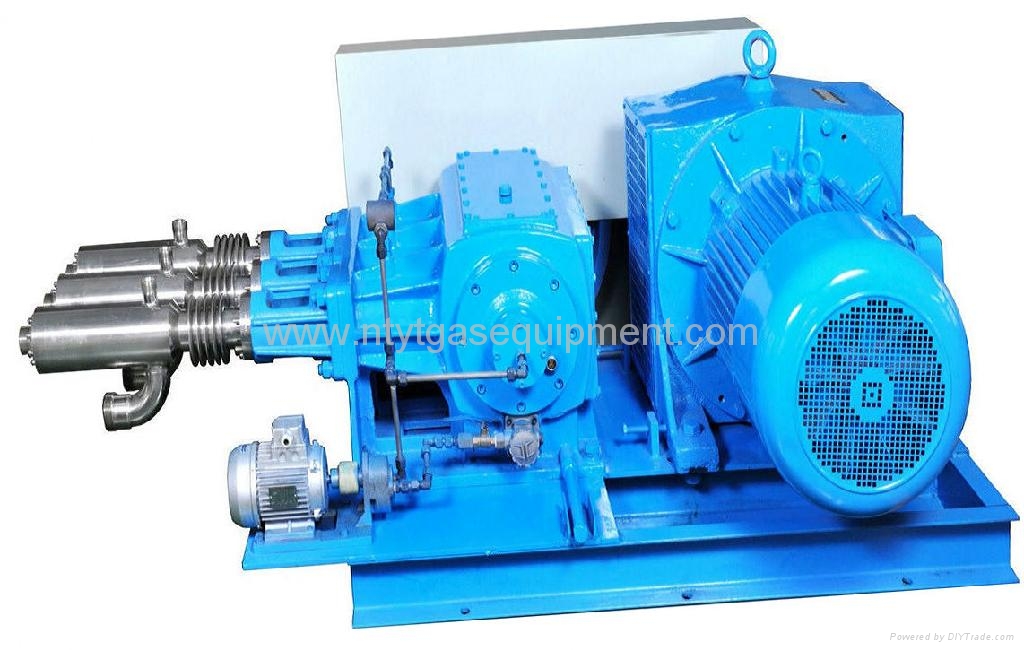

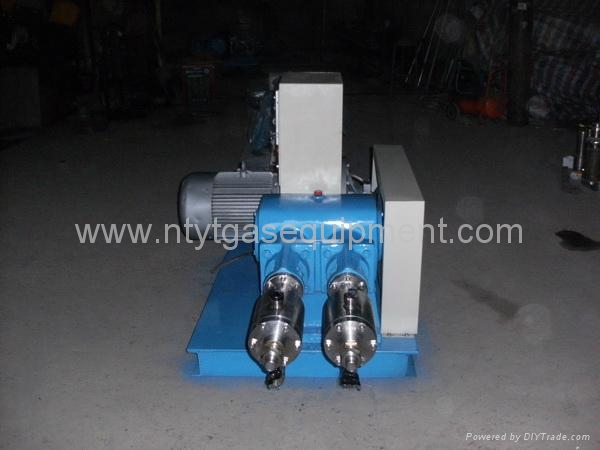

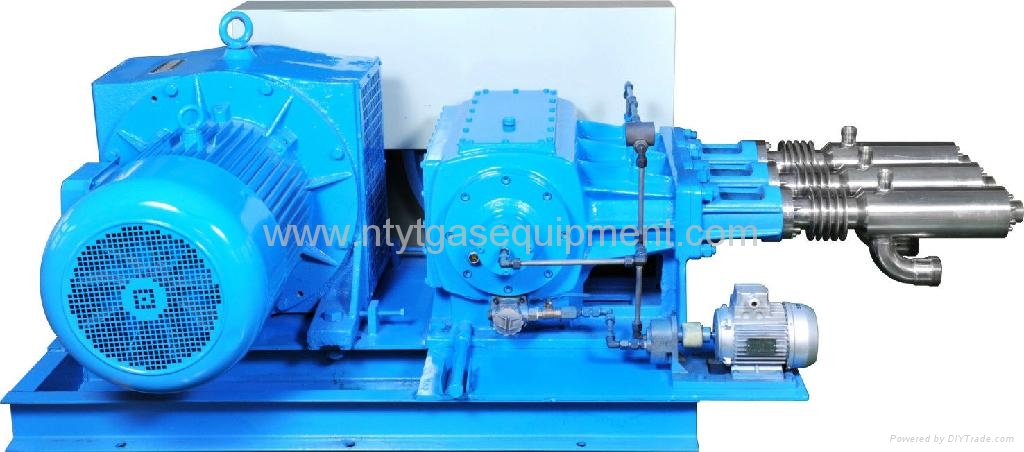

大流量低溫離心泵
| 型號： | BPO-25000/3 |
|---|---|
| 品牌： | 四川新天源科技有限公司 |
| 原產地： | 中國 |
| 類別： | 工業設備 / 通用機械 / 液壓機械及部件 |
| 標籤︰ | 低溫離心 , 氣動傳動 , 大流量 |
| 單價： |
-
|
| 最少訂量： | 1 件 |
產品描述
Advantages:
1,Novel structure, high quality,exquisite processing
2,Energy-saving and low noise
3,Three columns cryogenic pump
Specification：
1, Vacuum jacketed cold end pump head , minimum cold loss
2,Low evaporation, short precooling time , less fluid loss
3, abrasive resistant piston ring , guide ring seal ring
1,Novel structure, high quality,exquisite processing
2,Energy-saving and low noise
3,Three columns cryogenic pump
Specification：
1, Vacuum jacketed cold end pump head , minimum cold loss
2,Low evaporation, short precooling time , less fluid loss
3, abrasive resistant piston ring , guide ring seal ring
|
type |
medium |
shape |
flow range (L/h) |
inlet pressure |
maximum output pressure |
input power |
dynamo rotation rate (r.p.m) |
power (KW) |
|
BPO-15000/3 |
LO2 LN2 LAr LCO2 |
horizontal type Three poles piston |
10000~15000 |
0.1~1.6 |
3 |
380V, 50HZ |
600~1200 |
30 |
|
BPO-20000/3 |
15000~20000 |
37 |
||||||
|
BPO-25000/3 |
20000~25000 |
37 |
||||||
|
BPO-30000/3 |
25000~30000 |
45 |
||||||
|
BPO-35000/3 |
30000~35000 |
45 |
||||||
|
BPO-40000/3 |
35000~40000 |
55 |
||||||
|
BPO-45000/3 |
40000~45000 |
55 |
||||||
|
BPO-50000/3 |
45000~50000 |
75 |
