1. 大電流、高電壓承受能力 2. 良好的耐衝擊能力 3. 渡銀的端子，較低的接觸電阻。 4. 創新的密封、防水防塵設計，達到IP68 5. 卓越的高低溫、防水、抗紫外線等性能，適合長期戶外使用

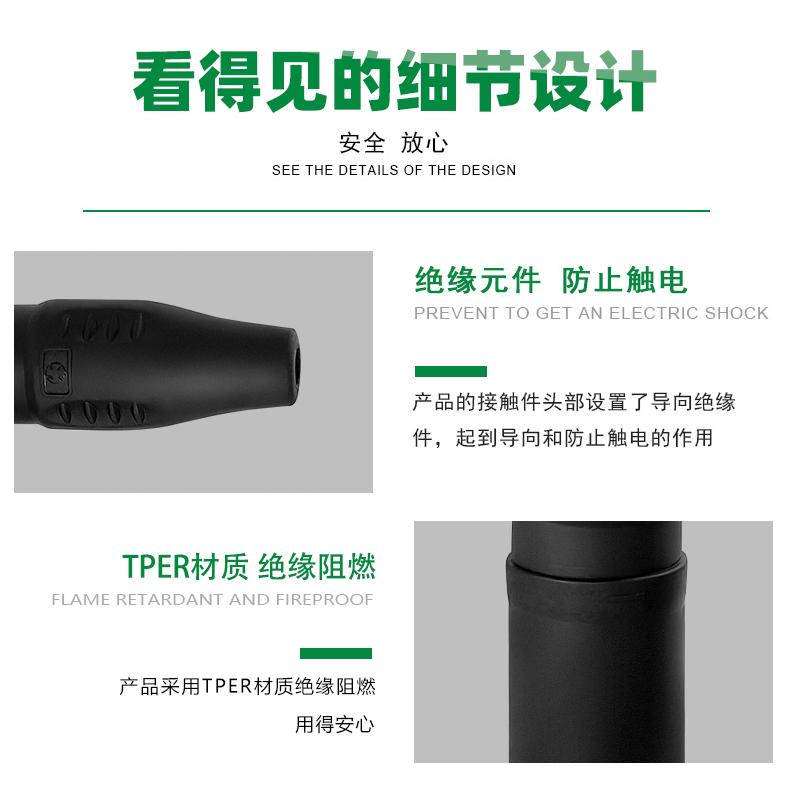

Insulation material絕緣材料......................................................TPER

Rated current額定電流..............................................................30A

Rated voltage額定電壓..............................................................1000V(TUV)＆600V(UL)

Test voltage測試電壓................................................................6kv(50Hz,lmin

Typical contact resistance接觸電阻.......................................... ≤ 5mΩ

Contact material接解材質.........................................................Copper,Tin plated

Degree of protection防護等級..................................................IP2X/IP67

Safety degree適合防護等級.......................................................II

Flame class防火等級..................................................................UL94-V0

Material RTI使用溫度範圍...........................................................110℃

Withdrawal force拔出力............................................................ ≥ 50N

Insertion force插入力................................................................ ≤ 50N

Ambient temperature range使用溫度.........................................-40℃ until+85℃

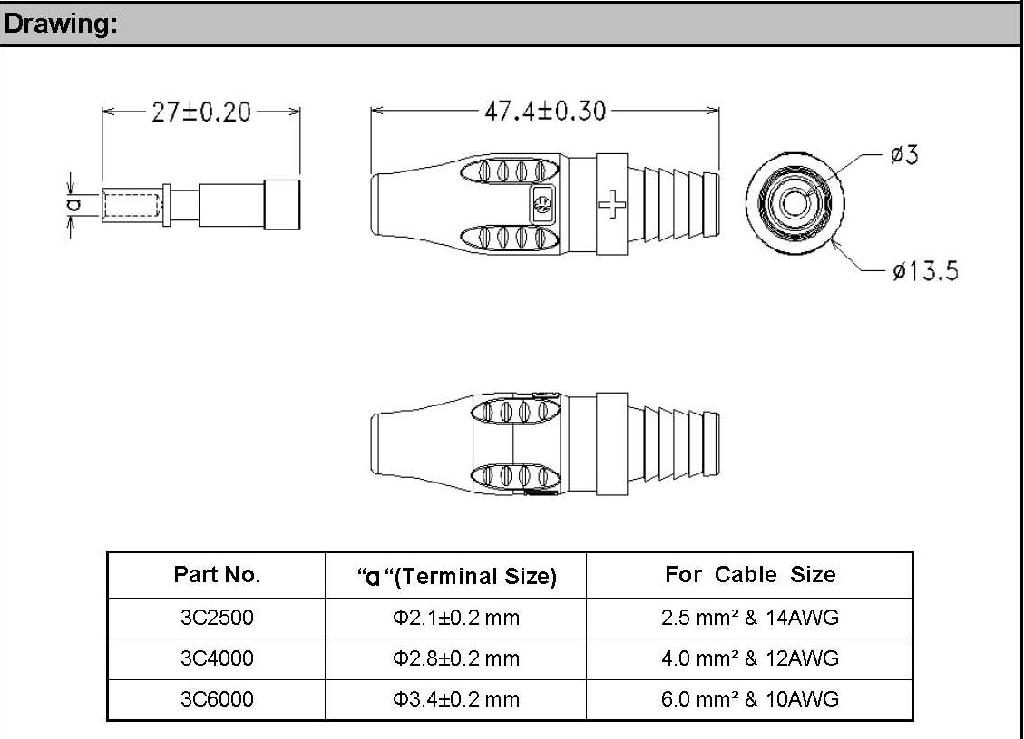

Pin dimensions端子直徑..............................................................Ф3.0

Suitable cable cross section適合的電纜截面...............................2.5/4.0/6.0mm²
