型號: | SC(B) |
---|---|
品牌: | 四互 |
原產地: | 中國 |
類別: | 電子、電力 / 輸變電設備 |
標籤︰ | 干式變壓器 , 樹脂澆注變壓器 , 電力變壓器 |
單價: |
-
|
最少訂量: | 1 件 |

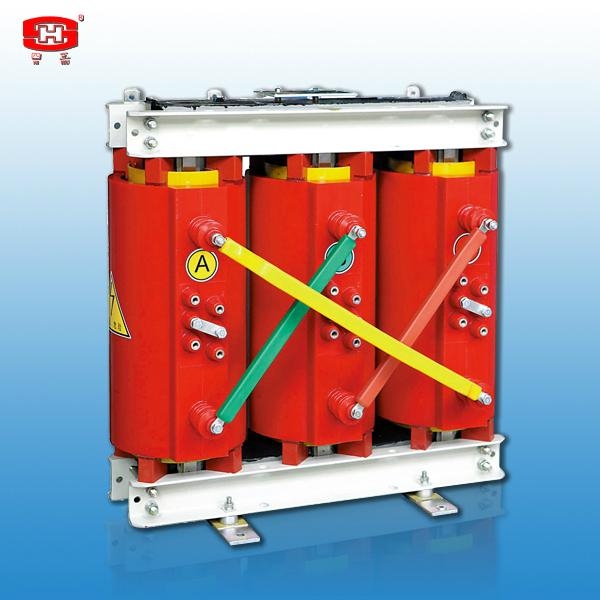

Product Name: Dry-type Distribution Power Transformers
Products Explanation.
The products are especially suitable for installation in draw-out type or fixing type switchgears as well as for power plants or substation self-consumption transformers or those places where small space, fire-control, moisture-proof, are needed. Those up to 10kV can be installed in a 650~1200mm wide switchgear, up to20kV in a 1000mm wide switchgear and 35kV in a 1400~1600mm wide switchgear.
Main Features:
Low partial discharge
Protection against short circuit
High mechanical strength
Pre-galvanized steel frame, flame-resistant, against corrosion
Technical data
Rated Primary Voltage |
6kV up to 35kV |
Rated Secondary Voltage |
0.4kV |
Rated Short-time P. F. Withstand Voltage (r.m.s.) |
20, 25, 35, 50, 70 |
Rated Capacity |
3kVA up to 2500kVA |
Phase |
Single Phase or Three Phases |
Insulation Material |
Epoxy Resin |
Wingding |
Foil Winding or Copper Winding |
Connection Symbol |
Yyn0 or Dyn11 |
HV Tapping Range (%) |
±5 or ±2×2.5 |
Core: core lamination, low loss, cold rolled grain oriented silicon steel
The highest temperature rise of windings: 100K,
Insulation class: F, cooling mode: AN.
Application:
Matching different sizes switchgears, power distribution and transmitter system, earthing system community power supply system, power plant, power substation and subway and so on.
Other Information:
Manufacturing Standard |
IEC60076-11:2004 |
Minimum Oder |
1 unit |
Delivery time |
10 days |
Payment |
L/C, T/T |
Port |
Guangzhou |
Detail technical data will be provided upon request.
付款方式︰ | TT, LC |
---|---|
包裝︰ | 木箱 |
交貨期︰ | 15-30 日 |
証書︰ | ISO 9001:2008 |
運輸詳情︰ | 我司有屬於自己的運輸部門,他們隨時準備好確保貨物按時交付。 |
廣東四會互感器廠有限公司 | |
---|---|
國家/地區︰ | 广东省肇庆市 |
經營性質︰ | 生產商 |
聯繫電話︰ | 13435857965 |
聯繫人︰ | 馮小姐 (技術) |
最後上線︰ | 2015/05/04 |
