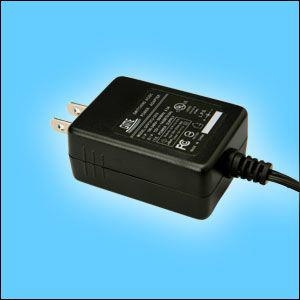

銷售GEO151UA-0520 5V2A開關電源

銷售GEO151UA-0520 5V2A開關電源
型號:GEO151UA-0520
品牌:-
原產地:中國
類別:電子、電力 / 電源和配電設備 / 適配器
標籤︰GEO151UA-0520 , 適配器 , 充電器
單價: ¥19 / 件
最少訂量:500 件

產品描述

12W Power Supply

Model : GEO151UA-XXXX

Description

  • Market: USA,Canada,Japan,China,Mexico
  • Wall Mount Type
  • Meet CEC Regulations
  • ROHS Compliance
  • No Load Power Consumption Less than 0.3W



General Specifications

Maximum output power: 12W
Input voltage: 90~264Vac
Input Frequency: 47Hz~63Hz
Input Current: 0.36A
Efficiency:  Meet CEC
Ripple noise (max): +1% voltage Max
Line Regulation: ±1%
Load Regulation: ±5%
Hold-Up Time: 16mS
Over Voltage Protection: 120%
Operating Temperature: 0~40°C
Storage Temperature: -20~85°C
Storage Humidity: 5%RH~90%RH
Withstand voltage: AC 3KV
Burn-In Test: 100% Full Load
MTBF: 50000Hours
Weight: ABOUT 120g



Dimensions
LxWxH: 60.2x44x26.2 (mm)



GFP121U-0520;GEO151UA-0520;GEO151J-0520 [5V2A]
GFP121U-0620;GEO151UA-0620;GEO151J-0620 [6V2A]
GFP121U-0913;GEO151UA-0913;GEO151J-0913 [9V1.3A]
GFP121U-1012;GEO151UA-1012;GEO151J-1012 [10V1.2A]
GFP121U-1210;GEO151UA-1210;GEO151J-1210 [12V1A]
GFP121U-1508;GEO151UA-1508;GEO151J-1508 [15V0.8A]
GFP151U-0525;GFP151UA-0525;GFP151J-0525 [5V2.5A]
GFP151U-0623;GEO151UA-0623;GEO151J-0623 [6V2.3A]
GFP151U-0916;GEO151UA-0916;GEO151J-0916 [9V1.6A]
GFP151U-1015;GEO151UA-1015;GEO151J-1015 [10V1.5A]
GFP151U-1212;GEO151UA-1212;GEO151J-1212 [12V1.25A]

GFP151U-1510;GEO151UA-1510;GEO151J-1510 [15V1A]

GEO151C-1215;GEO151UA-1215;GEO151J-1215[12V1.5A]
GFP121C-0520;GEO151C-0520 [5V2A]
GFP121C-0620;GEO151C-0620 [6V2A]
GFP121C-0913;GEO151C-0913 [9V1.3A]
GFP121C-1012;GEO151C-1012 [10V1.2A]
GFP121C-1210;GEO151C-1210 [12V1A]
GFP121C-1508;GEO151C-1508 [15V0.8A]

Pls send email to zenger@mountpower.net.cn,If you need our product,

We will offer the best price according the Qty,and we can ship goods to all over the world.

We can accept paypal payment.
