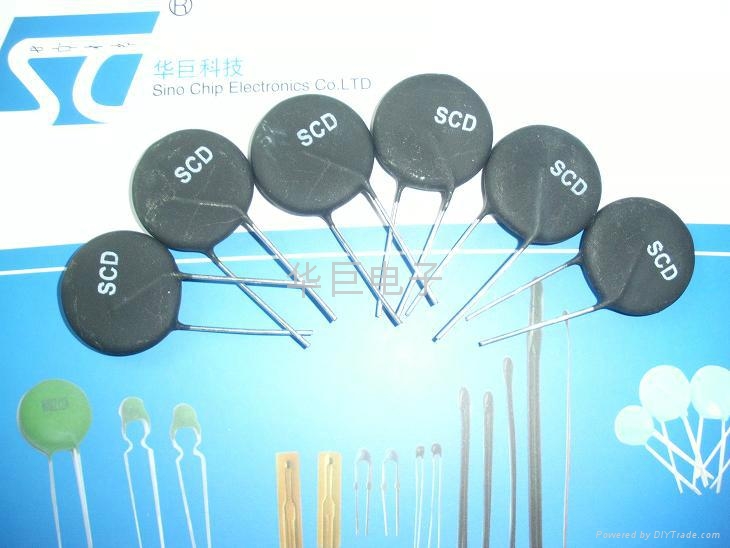

型號: | SCD-1R030-30 |
---|---|
品牌: | sinochip |
原產地: | 中國 |
類別: | 電子、電力 / 電子元器件 / 電阻器 |
標籤︰ | NTC熱敏電阻 , 大功率 , NTC熱敏電阻 |
單價: |
¥20
/ 件
|
最少訂量: | 100 件 |
熱敏電阻,NTC熱敏電阻,PTC熱敏電阻-華巨電子
華巨電子是國內最大的知名熱敏電阻生產廠商之一,熱敏電阻器是敏感元件的一類,按照溫度係數不同分為正溫度係數熱敏電阻器(PTC)和負溫度係數熱敏電阻器(NTC)。熱敏電阻器的典型特點是對溫度敏感,不同的溫度下表現出不同的電阻值。正溫度係數熱敏電阻器(PTC)在溫度越高時電阻值越大,負溫度係數熱敏電阻器(NTC)在溫度越高時電阻值越低,它們同屬於半導體器件。根據NTC熱敏電阻的特性主要用作開機防浪涌,溫度測量,溫度補償,等應用領域,PTC熱敏電阻根據其特性,主要用作過流保護(自恢復保險絲),過熱保護,溫度測量,溫度補償等應用場合。壓敏電阻:,熱敏電阻:,溫度傳感器:,自恢復保險絲:,貼片保險絲:熱敏電阻:,壓敏電阻:,華巨電子:,自恢復保險絲:,PTC熱敏電阻:,NTC熱敏電阻:,壓敏電阻:,自恢復保險絲:,貼片保險絲:PT100溫度傳感器
說明:若非特別指出,常用外形為Ⅰ型,即:引出線為長引直線
注:若非特別指出,R25的允許偏差為±20%。
5.主要技術參數
型號 |
R25 |
最大穩態電流 |
25℃下最大電流時近似電阻值 |
片徑Φ |
耗散係數 |
熱時間常數 |
工作溫度 |
(Ω) |
(A) |
(Ω) |
(mm) |
(mW/℃) |
(S) |
(℃) |
|
芯片直徑:(13-35)mm |
-55~+250 |
||||||
SCD-2R58 |
2.5 | 8 |
0.086 |
13/15 | 21 | 75 | |
SCD-1R310 | 1.3 | 10 |
0.034 |
15 | 22 | 75 | |
SCD-1R510 | 1.5 | 10 |
0.036 |
15 | 22 | 75 | |
SCD-2R59.5 | 2.5 | 9.5 |
0.044 |
15 | 22 | 75 | |
SCD-3R09 | 3.0 | 9.0 |
0.046 |
15 | 22 | 75 | |
SCD-5R08 | 5.0 | 8.0 | 0.058 | 15 | 22 | 75 | |
SCD-6R07 | 6.0 | 7.0 | 0.069 | 15 | 22 | 75 | |
SCD-7R07 | 7.0 | 7.0 | 0.078 | 15 | 22 | 75 | |
SCD-8R07 | 8.0 | 7.0 | 0.084 | 15 | 22 | 75 | |
SCD-10R07 | 10.0 | 7.0 | 0.098 | 15 | 22 | 75 | |
SCD-12R06 | 12.0 | 6.0 | 0.116 | 15 | 22 | 75 | |
SCD-15R06 | 15.0 | 6.0 | 0.125 | 15 | 22 | 75 | |
SCD-16R06 | 16.0 | 6.0 | 0.129 | 15 | 22 | 75 | |
SCD-20R06 | 20.0 | 6.0 | 0.136 | 15 | 22 | 75 | |
SCD-30R05 | 30.0 | 5.0 | 0.165 | 15 | 22 | 75 | |
SCD-47R04 | 47.0 | 4.0 | 0.357 | 15 | 22 | 75 | |
SCD-121R2.5 | 120 | 2.5 | 0.652 | 15 | 22 | 75 | |
SCD-0R716 |
0.7 | 16 |
0.026 |
20 |
29 |
110 |
|
SCD-1R016 |
1.0 | 16 |
0.027 |
20 |
29 |
110 |
|
SCD-1R020 |
1.0 | 20 |
0.020 |
20 |
29 |
113 |
|
SCD-1R515 |
1.5 | 15 |
0.030 |
20 |
29 |
110 |
|
SCD-2R014 |
2.0 | 14 |
0.035 |
20 |
29 |
110 |
|
SCD-2R512 |
2.5 | 12 |
0.060 |
20 |
29 |
110 |
|
SCD-2R513 |
2.5 | 13 |
0.055 |
20 |
29 |
110 |
|
SCD-2R515 |
2.5 | 15 |
0.046 |
20 |
29 |
110 |
|
SCD-3R012 |
3.0 | 12 |
0.040 |
20 |
28 |
110 |
|
SCD-4R012 |
4.0 | 12 |
0.043 |
20 |
28 |
110 | |
SCD-4R712 |
4.7 | 12 |
0.046 |
20 |
28 |
110 | |
SCD-5R010 |
5.0 | 10 |
0.049 |
20 |
29 |
110 |
|
SCD-5R012 |
5.0 | 12 |
0.047 |
20 |
29 |
110 |
|
SCD-6R011 |
6.0 | 11 |
0.052 |
20 |
29 |
110 |
|
SCD-6R810 |
6.8 | 10 |
0.055 |
20 |
29 |
110 |
|
SCD-7R010 |
7.0 | 10 |
0.075 |
20 |
28 |
110 | |
SCD-10R08 |
10.0 | 8 |
0.085 |
20 |
29 |
110 |
|
SCD-12R07.5 |
12.0 | 7.5 |
0.112 |
20 |
29 |
110 | |
SCD-15R07 |
15.0 | 7 |
0.123 |
20 |
29 |
110 |
|
SCD-18R07 |
18.0 | 7 |
0.122 |
20 |
29 |
110 |
|
SCD-20R06 |
20.0 | 6 |
0.132 |
20 |
29 |
110 |
|
SCD-20R07 |
20.0 | 7 |
0.122 |
20 |
29 |
110 |
|
SCD-0R522 |
0.5 | 22 |
0.017 |
25 |
30 |
130 |
|
SCD-0R722 |
0.5 | 22 |
0.018 |
25 |
30 |
130 |
|
SCD-1R519 |
1.5 | 19 |
0.024 |
25 |
30 |
130 |
|
SCD-2R018 |
2.0 | 18 |
0.026 |
25 | 30 |
130 |
|
SCD-2R516 |
2.5 | 16 |
0.029 |
25 | 30 |
130 |
|
SCD-3R015.5 |
3.0 | 15.5 |
0.032 |
25 | 30 |
130 |
|
SCD-4R015 |
4.0 | 15 |
0.039 |
25 | 30 |
130 |
|
SCD-4R714 |
4.7 | 14 |
0.044 |
25 | 30 |
130 |
|
SCD-5R014 |
5.0 | 14 |
0.047 |
25 | 30 |
130 |
|
SCD-6R812 |
6.8 | 12 |
0.061 |
25 | 30 |
130 |
|
SCD-7R011 |
7.0 | 11 |
0.064 |
25 | 30 |
130 |
|
SCD-8R010 |
8.0 | 10 |
0.079 |
25 | 30 |
130 |
|
SCD-10R010 |
10.0 | 10 |
0.084 |
25 | 30 |
130 |
|
SCD-12R09 |
12.0 | 9 |
0.102 |
25 | 30 |
130 |
|
SCD-15R08 |
15.0 | 8 |
0.117 |
25 | 30 |
130 |
|
SCD-18R08 |
18.0 | 8 |
0.125 |
25 | 30 |
130 |
|
SCD-20R08 |
20.0 | 8 |
0.132 |
25 | 30 |
130 |
|
SCD-0R530 |
0.5 | 30 |
0.013 |
30 | 40 |
190 |
|
SCD-1R030 |
1.0 | 30 |
0.014 |
30 | 40 |
190 |
|
SCD-1R525 |
1.5 | 25 |
0.016 |
30 | 40 |
190 |
|
SCD-2R023 |
2.0 | 23 |
0.019 |
30 | 40 |
190 |
|
SCD-2R520 |
2.5 | 20 |
0.023 |
30 | 40 |
190 |
|
SCD-3R019.5 |
3.0 | 19.5 |
0.026 |
30 | 40 |
190 |
|
SCD-4R019 |
4.0 | 19 |
0.031 |
30 | 40 |
190 |
|
SCD-4R718 |
4.7 | 18 |
0.035 |
30 | 40 |
190 |
|
SCD-5R017 |
5.0 | 17 |
0.037 |
30 | 40 |
190 |
|
SCD-6R816 |
6.8 | 16 |
0.043 |
30 | 40 |
190 |
|
SCD-7R015 |
7.0 | 15 |
0.044 |
30 | 40 |
190 |
|
SCD-8R014 |
8.0 | 14 |
0.049 |
30 | 40 |
190 |
|
SCD-10R013 |
10.0 | 13 |
0.056 |
30 | 40 |
190 |
|
SCD-12R012 |
12.0 | 12 |
0.067 |
30 | 40 |
190 |
|
SCD-15R011 |
15.0 | 11 |
0.078 |
30 | 40 |
190 |
|
SCD-18R010 |
18.0 | 10 |
0.092 |
30 | 40 |
190 |
|
SCD-20R09 |
20.0 | 9 |
0.113 |
30 | 40 |
190 |
|
SCD-20R10 |
20.0 | 10 |
0.090 |
32 | 45 | 280 | |
SCD-0R532 |
0.5 | 32 |
0.010 |
35 | 55 | 280 | |
SCD-1R032 |
1.0 | 32 |
0.011 |
35 | 55 | 280 | |
SCD-1R528 |
1.5 | 28 |
0.013 |
35 | 55 | 280 | |
SCD-2R025 |
2.0 | 25 |
0.017 |
35 | 55 | 280 | |
SCD-2R523 |
2.5 | 23 |
0.020 |
35 | 55 | 280 | |
SCD-3R022 |
3.0 | 22 |
0.023 |
35 | 55 | 280 | |
SCD-4R021 |
4.0 | 21 |
0.026 |
35 | 55 | 280 | |
SCD-4R720 |
4.7 | 20 |
0.029 |
35 | 55 | 280 | |
SCD-5R019 |
5.0 | 19 |
0.030 |
35 | 55 | 280 | |
SCD-6R818 |
6.8 | 18 |
0.035 |
35 | 55 | 280 | |
SCD-7R017 |
7.0 | 17 |
0.037 |
35 | 55 | 280 | |
SCD-8R016 |
8.0 | 16 |
0.041 |
35 | 55 | 280 | |
SCD-10R015 |
10.0 | 15 |
0.045 |
35 | 55 | 280 | |
SCD-12R014 |
12.0 | 14 |
0.051 |
35 | 55 | 280 | |
SCD-15R013 |
15.0 | 13 |
0.060 |
35 | 55 | 280 | |
SCD-18R011 |
18.0 | 11 |
0.072 |
35 | 55 | 280 | |
SCD-20R010 |
20.0 | 10 |
0.089 |
35 | 55 | 280 |
注:若非特別指出,R25的允許偏差為±20%。
http://www.sinochip.net/mf73.htm
SG系列
型號 | 華巨替代型號 | R25 | 最大穩態電流 | 25℃下最大電流時 近似電阻值 | 片徑Φ | 耗散係數 | 熱時間 常數 | 工作溫度 |
(Ω) | (A) | (Ω) | (mm) | (mW/℃) | (S) | (℃) | ||
芯片直徑:(13-35)mm |
||||||||
SG130 | SCD-2R57 |
2.5 |
7 |
0.081 |
15 | 27 | 75 |
-55~+250 |
SG200 | SCD-5R07 |
5.0 |
7 |
0.056 |
15 | 27 | 75 | |
SG40 | SCD-10R08 |
10.0 |
8 |
0.085 |
20 | 29 | 110 | |
SG64 | SCD-7R10 |
7 |
10 |
0.075 |
20 |
28 |
110 | |
SG150 | SCD-2R515 |
2.5 |
10 |
0.050 | 20 |
29 |
110 |
|
SG26 | SCD-5R010 | 5.0 | 12 |
0.047 |
20 |
29 |
110 |
|
SG32 | SCD-4R014 |
4.0 |
14 |
0.040 | 25 | 30 | 130 | |
SG160 | SCD-2R515 | 2.5 | 15 |
0.046 |
20 |
29 |
110 |
|
SG110 | SCD-2R518 | 2.0 | 18 |
0.026 |
25 | 30 |
130 |
|
SG100 | SCD-1R020 | 1.0 | 20 |
0.020 |
20 |
29 |
113 |
|
SG420 | SCD-2R023 | 2.0 | 23 |
0.019 |
30 | 40 |
190 |
|
SG260 | SCD-0R530 | 0.5 | 30 |
0.013 |
30 | 40 |
190 |
|
SG405 | SCD-1R030 | 1.0 | 30 |
0.014 |
30 | 40 |
190 |
MS系列
型號 | 華巨替代型號 | R25 | 最大穩態電流 | 25℃下最大電流時 近似電阻值 | 耗散係數 | 熱時間 常數 | 工作溫度 |
(Ω) | (A) | (Ω) | (mW/℃) | (S) | (℃) | ||
芯片直徑:(13-35)mm |
|||||||
MS15 40004 | SCD-40R04 | 40 | 4 |
0.330 |
27 | 75 |
-55~+250 |
SL22 0R516 | SCD-0R516 | 0.5 | 16 | 0.024 | 29 | 110 | |
SL22 0R712 | SCD-0R712 | 0.7 | 12 | 0.033 | 29 | 110 | |
SL22 1R020 | SCD-1R020 | 1.0 | 20 | 0.020 | 29 | 110 | |
SL22 2R018 | SCD-2R018 | 2.0 | 18 | 0.026 | 30 | 130 | |
SL22 2R510 | SCD-2R510 | 2.5 | 10 | 0.070 | 29 | 110 | |
SL22 2R515 | SCD-2R515 | 2.5 | 15 | 0.046 | 29 | 130 | |
SL22 4R014 | SCD-4R014 | 4.0 | 14 | 0.039 | 30 | 130 | |
SL22 5R012 | SCD-5R012 | 5.0 | 12 | 0.047 | 29 | 110 | |
SL22 10008 | SCD-10R08 | 10 | 8 | 0.085 | 29 | 110 | |
MS22 20005 | SCD-20R05 | 20 | 5 | 0.136 | 27 | 75 | |
MS22 30005 | SCD-30R05 | 30 | 5 | 0.165 | 27 | 75 | |
MS32 2R025 | SCD-2R025 | 2.5 | 25 | 0.020 | 55 | 280 | |
MS32 5R020 | SCD-5R020 | 5.0 | 20 | 0.029 | 55 | 280 | |
MS35 5R025 | SCD-5R025 | 5.0 | 25 | 0.022 | 55 | 280 | |
MS32 7R015 | SCD-7R015 | 7.0 | 15 | 0.044 | 40 |
190 |
|
MS25 10010 | SCD-10R010 | 10 | 10 |
0.084 |
30 | 130 | |
MS32 10015 | SCD-10R015 | 10 | 15 | 0.045 | 55 | 280 | |
MS32 15012 | SCD-15R012 | 15 | 12 |
0.060 |
55 | 280 | |
MS32 20008 | SCD-20R08 | 20 | 8 |
0.132 |
30 | 130 | |
MS32 20010 | SCD-20R010 | 20 | 10 | 0.090 | 55 | 280 | |
SL32 0R530 | SCD-0R530 | 0.5 | 30 | 0.013 | 40 |
190 |
|
SL32 1R030 | SCD-1R030 | 1.0 | 30 | 0.014 | 40 |
190 |
|
SL32 1R032 | SCD-1R032 | 1.0 | 32 | 0.011 | 55 | 280 | |
SL32 2R023 | SCD-2R023 | 2.0 | 23 | 0.019 | 40 |
190 |
|
SL32 10015 | SCD-10R015 | 10 | 15 | 0.045 | 55 | 280 | |
AS32 2R025 | SCD-2R025 | 2.0 | 25 | 0.017 | 55 | 280 | |
AS35 20010 | SCD-20R010 | 20 | 10 | 0.089 | 55 | 280 |
