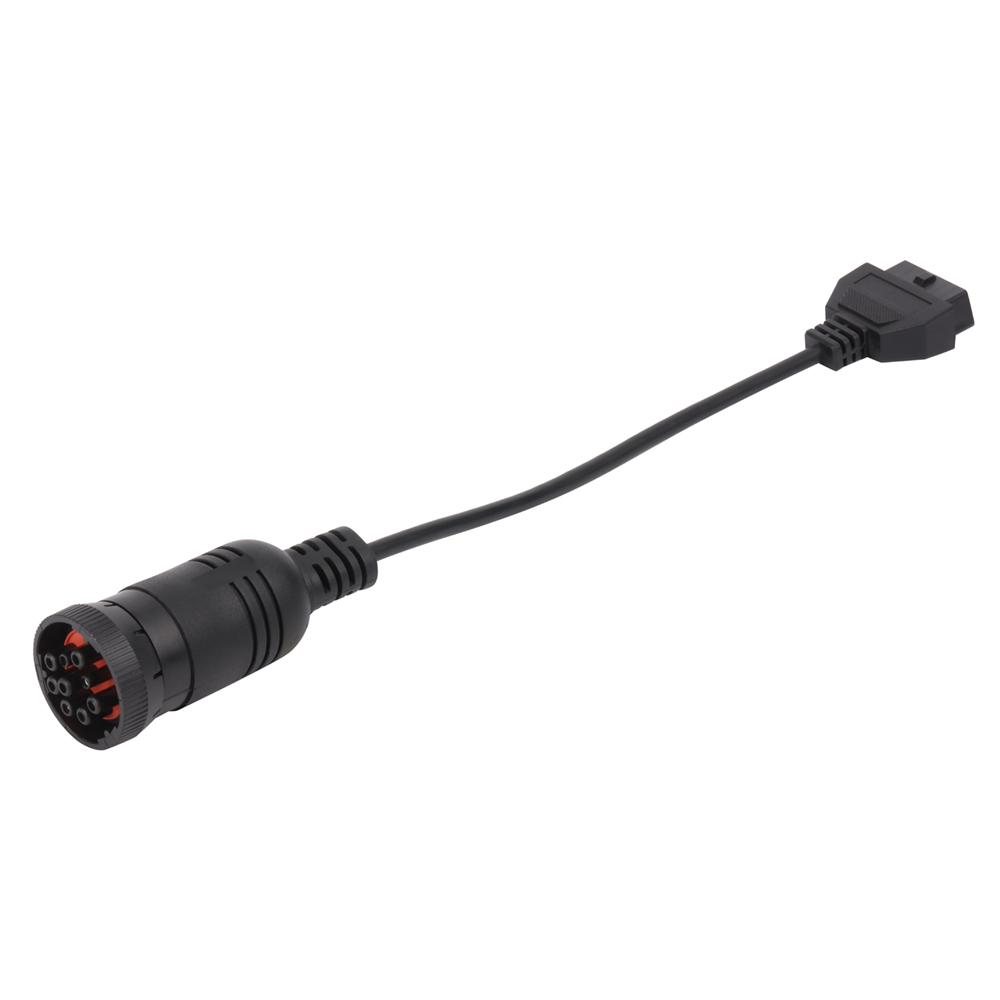

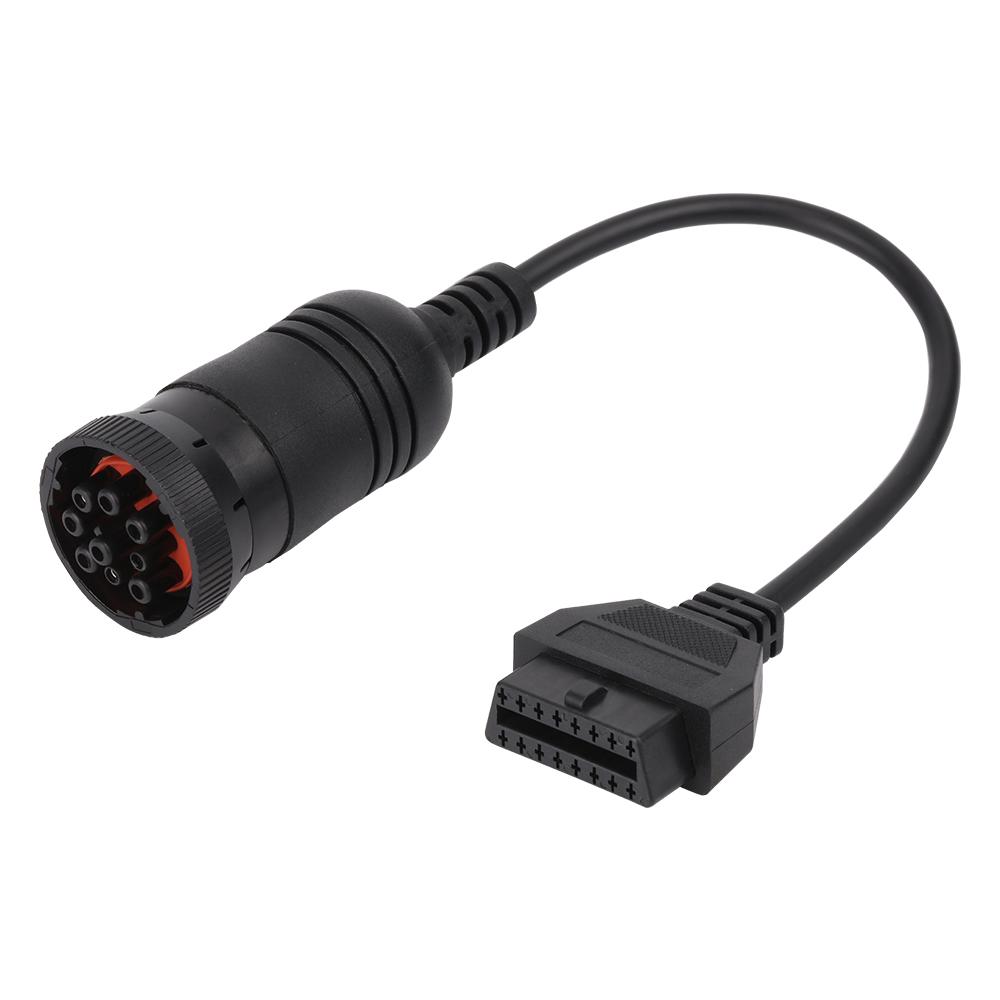

16針內螺紋至J1939 9P外螺紋J1939連接器至obd2電纜 - CT012-193906 - COMECH (中國生產商) - 汽車部件和附件

16針內螺紋至J1939 9P外螺紋J1939連接器至obd

型號：	CT012-193906
品牌：	COMECH
原產地：	中國
類別：	交通運輸 / 汽車部件和附件
標籤︰	obd2 j1939 cable , j1939 connector , 16PIN FEMALE
單價：	¥41.6 / 件
最少訂量：	1000 件

J1939 female plug	equivalent of Deutsch HD16-6-12S
Type of J1939 female plug	Type 1
Color of J1939 female plug	GREY
J1939 male plug	equivalent of Deutsch HD16-6-12P
Type of J1939 male plug	Type 1
Color of J1939 male plug	GREY
Wire	18AWG, pure copper
Material of J1939 plug	PA66 + glass fiber
Material of D-SUB 15PIN plug	PBT
Pin assignment or pin out	customized
Cable length	customized
Pins or terminals	copper, nickel-plated or gold-plated
Contact Resistance	3 ohm max.
Insulation Resistance	5M ohm min.
Working Temperature	−25℃ ~ +85℃
Testing	100% open, short and mis-wire testing
Testing Voltage	DC300V 5M ohm/10ms
Warranty	1 year
